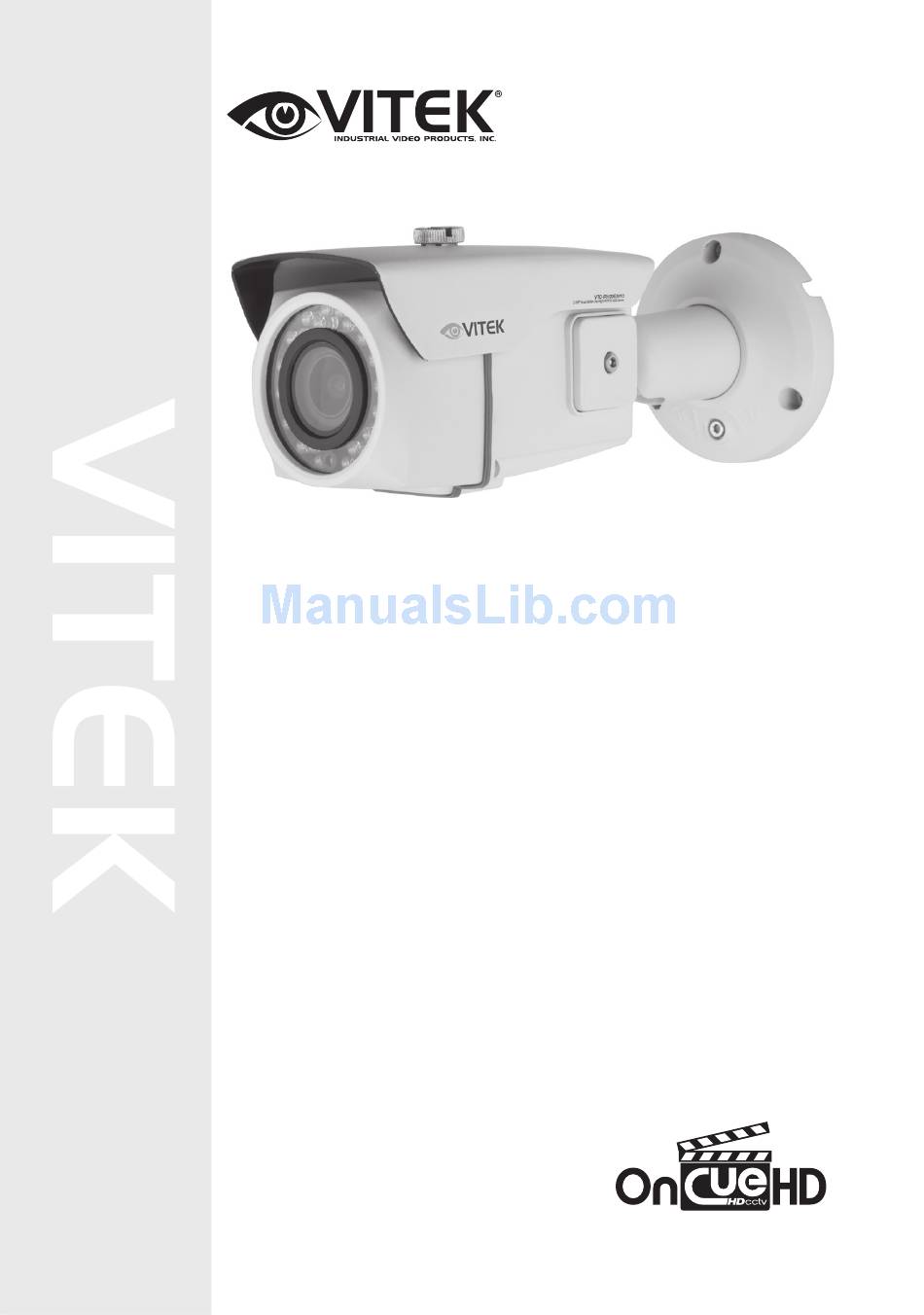

Vitek VTC-IRH30E2810 Manual

2.1mp hd-sdi / ex-sdi wdr bullet camera with 30 ir leds

Hide thumbs

Table Of Contents

Quick Links

Download this manual

FEATURES:

• 1/3" Panasonic Progressive Scan CMOS Sensor

• 2.1 MegaPixel with Full 1080p/720p HD-SDI (SMPTE292M) EX-SDI Output

• 30 Dynamic Infrared LEDs at 850nm enable viewing in total darkness up to

100 feet

• Dynamic Intensity IR LEDs to reduce over saturation of IR illuminated video

without engaging the Image Signal Processor chip

• MegaPixel IR Corrected 2.8-10mm Varifocal Auto Iris Lens with External

Adjustments for Focus and Zoom

• True Day/Night by ICR - Dual Filter Switch

• Fully programmable True WDR (Dual Scan) at 30fps

• Smart Motion Zoom tracks motion, then intelligently zooms into that area of

the frame

• 3D-DNR Advanced Digital Noise Reduction

• Dual Glass Compartments to Eliminate IR Reflection

• Secondary Video Output & OSD Control Joystick are accessible inside a

gasket sealed removable side panel

• Advanced OSD Functions: Smart Motion Zoom, Focus Assist, Motion

Detection, Privacy Mask, Defog, D-Zoom(~8x), Sens-up(~x32), BLC/HLC,

Title Set, Pixel Defect Compensation, Lens Shade Compensation

• 100% Pure Digital Transmission of video data

• Up to 1000' HD Transmission Range (Depending on cable characteristics and

integrity)

• 3-Axis mount with Simple One Turn Positioning Lock for Ease of Installation

• IP-67 Rated Water Resistance

• 12VDC / 24VAC Dual Voltage Operation

VTC-IRH30E2810

2.1MP HD-SDI / EX-SDI WDR

Bullet Camera with 30 IR LEDs

Table of Contents

Need help?

Do you have a question about the VTC-IRH30E2810 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vitek VTC-IRH30E2810

Page 1 VTC-IRH30E2810 2.1MP HD-SDI / EX-SDI WDR Bullet Camera with 30 IR LEDs FEATURES: • 1/3” Panasonic Progressive Scan CMOS Sensor • 2.1 MegaPixel with Full 1080p/720p HD-SDI (SMPTE292M) EX-SDI Output • 30 Dynamic Infrared LEDs at 850nm enable viewing in total darkness up to 100 feet •...
Page 2: Safety Precaution
Safety Precaution To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source. CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK, DO NOT REMOVE COVER (OR BACK).
Page 3 Safety Precaution NOTICE The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera. Avoid installing areas where has shock or vibration which results in the problems. Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.
Page 4: Table Of Contents
Contents p.02~03 Safety Precaution p.04 Contents p.05~06 Features p.06 Composition p.07 Dimensions p.08 Part Names p.09~11 Installation Instructions p.12~28 Operating Instructions p.29 Specifications...
Page 5: Features
Features Key Features • Full HD, 2Mega Pixel EX-SDI CAMERA, 1920x1080(30p) • Extended long reach HD Solution • Real time True WDR(Wide Dynamic Range) / 30fps • Improved noise figure with the enhanced 3DNR • Built-in f=2.8~10mm F1.4, Mega-pixel DC Auto Iris vari-focal lens •...
Page 6 Features General Description This camera realizes the natural and crisp image as you see the scene in front of you by Full HD(1920x1080p) camera module. Highly detailed pictures can be achieved and color reproducibility deserves attention. • With ICR mechanism, - Enhances its sensitivity about 10x at night time - Can accepts the infrared light •...
Page 7: Dimensions
Dimensions (unit : mm) 3.17” 9.72” 9.29” CAUTION • Extreme care should be taken NOT to scratch the window in front of lens. • Care should be taken that the cable is NOT damaged, kinked or exposed in a hazardous area. •...
Page 8: Part Names
Part Names SUNSHIELD BOLT SUNSHIELD POWER CABLE OSD Setup CONTROL COVER DUAL WINDOW BRACKET REAR CASE FRONT CASE FOCUS ZOOM...
Page 9: Installation Instructions
Installation Instructions 1. Locate the mounting template at the installation position and drill the ceiling or wall if needed. 2. Route the Power cable to the connecting place. 3. Place the camera bracket on pre-drilled position and fix it through using mounting screws (4x40mm).
Page 10 Installation Instructions Pan & Tilt adjustments • Unlock the screw on the camera bracket through using the torque wrench supplied • Set the camera’s viewing angle then lock the screw on the bracket. 1) Pan limit: Pan is limited to +/- 90°. 2) Tilt limit: Tilt is limited to 0°(2°) min ~ 90°...
Page 11 Installation Instructions Power Supply Connections Make sure the power is removed before the installation. Camera can work with either 24AC or 12VDC, dual voltage power . Primary and secondary grounds are completely isolated to avoid the possible ground-loop problems In case that HD-SDI/EX-SDI Inputs are not supported in Monitor, please use HD-SDI/EX-SDI Converter to connect HD-SDI/EX-SDI cable with Monitor Some computer monitors or TVs may not support 30p/25p.
Page 12: Operating Instructions
Operating Instructions Using OSD controller Setup menu can be accessed and controlled by OSD control joy stick on the side of camera unit. Five commands are available with the joy stick. The design of OSD could be different according to the Model. Video Sub-out Connector Cover Open...
Page 13 Operating Instructions OSD menu Startup Press ‘●’(OSD menu Joy stick key) down for about 2 seconds to access the setup menu mode. MENU V5.xx 1. EXPOSURE 2. LENS 3. FOCUS ASSIST NORMAL 4. SCENE ENHANCE 5. 3D-NR AUTO 6. DAY/NIGHT 7.
Page 14 Operating Instructions EXIT SAVE & EXIT – Exits the menu after saving the parameters. 1. EXPOSURE EXPOSURE AUTO SHUTTER |:::::::|::::::| 10 BRIGHTNESS SENS-UP |:::::::|::::::| 12 RETURN 1-1. SHUTTER (default: AUTO) : Set EXPOSURE MODE to AUTO, MANUAL and Flickerless. MANUAL and Flickerless modes disable SENS-UP functions.
Page 15 Operating Instructions 2. LENS Select either DC or MANUAL lens. Lens MUST be set to DC for the best image when DC iris lens is installed 2-1. DC (default: INDOOR) : Select lens mode according to installation Optimized for an indoor •...
Page 16 Operating Instructions • POP ON FOCUS (OFF) : ON zooms in the center of picture at 2X for better focusing. • FOCUSING STATUS (ON) : Shows how focus is set. When blue bar doesn’t show up, try the lens focus NEAR and FAR. The maximum blue bar indicates the best focusing position.
Page 17 Operating Instructions 6. DAY / NIGHT DAY/NIGHT is used to control the setting during day-time and night-time operation. Select the mode according to the lighting conditions and the camera type. SMART (DYNAMIC) IR can be set to reduce the saturation by strong IR illumination at night in any menu.
Page 18 Operating Instructions any menu is identically applied to other menu. Zero(0) turns off SMART IR and high level avoids saturation but the corners will be darker accordingly. 6-3. B/W(NIGHT) : Removes IR cut filter and switches to B/W regardless of light level. 6-4.
Page 19 Operating Instructions • ATWext: White balance is continuously working along with the color temperature changes in the range of 1,800K~11,000K. • ONE PUSH: White balance works only while ● is pressed. • MANUAL: White balance is fixed to the settings by R_GAIN and B-GAIN. This mode can be used only when the color temperature does not vary.
Page 20 Operating Instructions • ZONE NUM : Set a number to select a privacy zone from 1~10. • ZONE DISP : ON enables a relevant privacy zone. • H-POS, V-POS, H-SIZE and V-SIZE : Adjust the size and position of zone. •...
Page 21 Operating Instructions Area to be zoomed in by SMART MOTION ZOOM can be set at SPECIAL> MOTION> SMART MOTION ZOOM>ZOOM TARGET. Adjusting ◀,▶ (Joystick) for ZOOM TARGET varies the viewing angle to be zoomed when motion occurs. Set the video left and right and/or up and down by MIRROR/FLIP. •...
Page 22 Operating Instructions TITLE ABCDEFGHIJKLMNOPQRST U V W X Y Z a b c d e f g h i j k l m n o p q r s t u v w x y z , . ( ) { : [ ] 0 1 2 3 4 5 6 7 89 * + - /=l ! ? “...
Page 23 Operating Instructions 8-8-2. PRESET ZOOM: Able to zoom into a preset area by PTZ controller. • ZONE NUM : Set a number to select a preset zoom from 1~ 4. • ZONE VIEW : ON enables a relevant preset zone. •...
Page 24 Operating Instructions 9. SYSTEM SYSTEM TV SYSTEM EU(PAL) RESOLUTION 1080P COMM. SETUP LANGUAGE FACTORY DEFAULT RETUTN 9-1. TV SYSTEM (default: US or EU) : Selects HDTV standards for US(60HZ) or EU(50HZ). By this selection, 2nd analog video output switches to NTSC or PAL accordingly. 9-2.
Page 25 Operating Instructions Detail Function Description ▐ SMART MOTION ZOOM SMART MOTION ZOOM enlarges the area defined by a yellow window to a full size image when motion is detected in the black window. SMART MOTION ZOOM window can be re-sized by adjusting D-ZOOM RATIO and moved by H-POS and V-POS UNLIKE the conventional zoom which can zoom in/out the center area of image only, SMART MOTION ZOOM differentiates...
Page 26 Operating Instructions ▐ POINTING ZOOM • available with RS-485 model only This camera has a very useful and powerful feature, POINTING ZOOM, which can zoom in/out any area. POINTING ZOOM is the ability to zoom into an off center location using the PTZ Zoom in/out feature when connected via RS485 Use H-POINTER and V-POINTER to move the Yellow box to set the position of the center of the Zoom.
Page 27 Operating Instructions * SMART MOTION and POINTING ZOOM VS. Conventional Zoom Smart Motion and Pointing Zoom Conventional Zoom...
Page 28: Specifications
Detailed Specifications Sensor Panasonic 1/3” Progressive Scan CMOS Sensor Resolution 2.1 MegaPixel (1080p / 720p) More than 50dB (AGC OFF) Video Output Selectable: 1x HD-SDI (BNC) / EX-SDI (BNC) and 1x SD CVBS (BNC) IR Illuminators 30 IR LEDs IR Color Temp. 850nm IR Range Over 100 Feet...
Page 29 COnSIDER THESE OTHER GREaT PRODuCTS fROM VT-HDOCE Series On Cue Series 4, 8, and 16 Channel Real Time 1080p EX-SDI Digital Video Recorders • 4, 8 OR 16 CH EX-SDI / Analog Inputs (hybrid) with Full 1080p Camera Support • Now Supporting Cable distance of up to 1000’ using RG59!* •...
Page 30 COnSIDER THESE OTHER GREaT PRODuCTS fROM VT-HD/EXD1 EX-SDI Extender • Use with standard HD-SDI cameras for extended range beyond 1000’ over RG59U 95% copper Coax. (Not needed with EX-SDI version cameras). • Extended Serial Digital Interface • Powered by VLC (Visually Lossless Codec) Technology •...
Page 31 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
Page 32 Version 1.0 28492 Constellation Road ValenCia, Ca 91355 November 2015 WWW.ViteKCCtV.CoM...
