2.3. Environment and Power Standards

700
1000

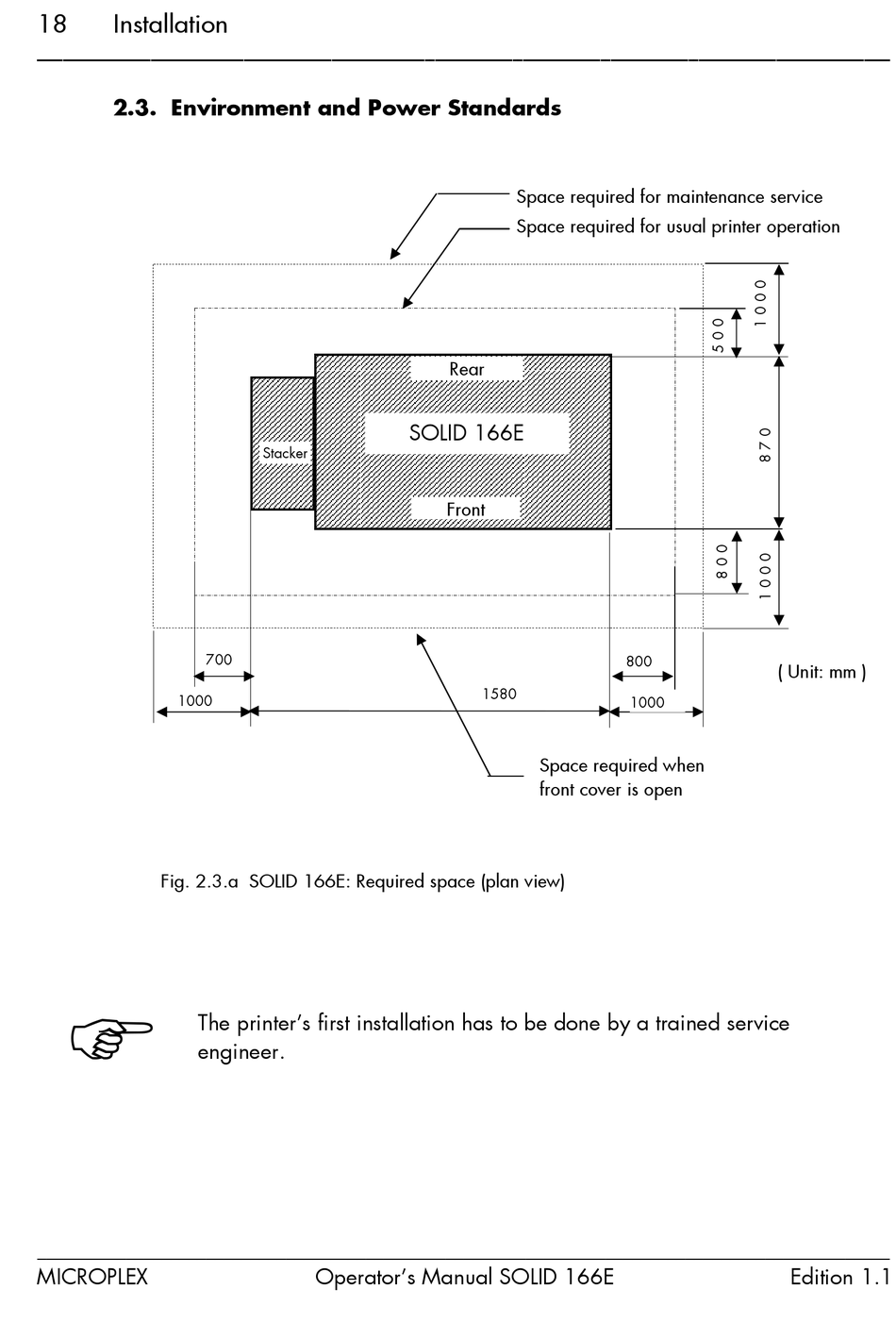

Fig. 2.3.a SOLID 166E: Required space (plan view)
!
The printer's first installation has to be done by a trained service
engineer.
________________________________________________________________________________________________
MICROPLEX
Rear
SOLID 166E
Stacker
Front
Operator's Manual SOLID 166E
Space required for maintenance service
Space required for usual printer operation
800
1580
1000
Space required when
front cover is open
( Unit: mm )
Edition 1.1
