3. Turn the lever (green) clockwise (approx. 90°) to turn down

the tractor unit.

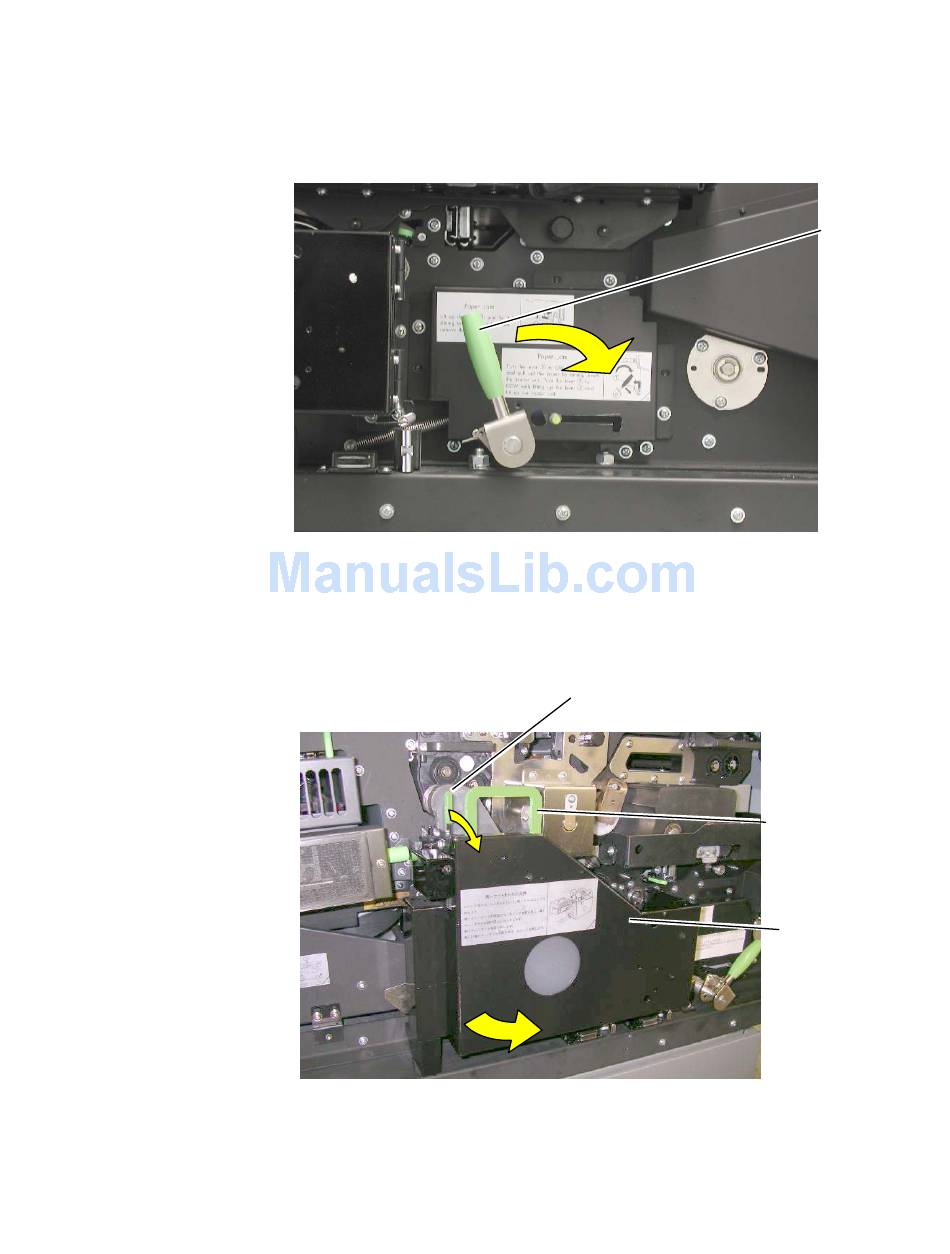

Fig. 7.4.2.c Swivelling the lever to lower the tractor unit
4. Push down the open lever of the waste toner bottle unit,
pull the green handle and open the unit.
Fig. 7.4.2.d Opening the waste toner bottle unit
Operator's Manual SOLID 166E
Troubleshooting 123
Open lever (green)
Lever
(green)
Handle (green)
Waste toner
bottle unit
