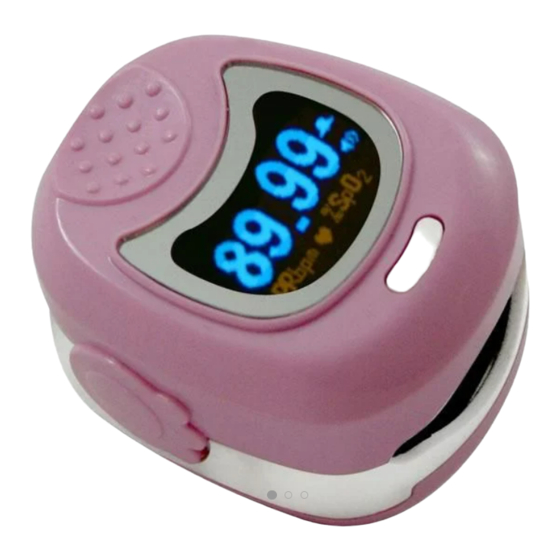

V406 User Manual
V406 Buttons & Icons
FRONT
BUTTON
Warnings
• D onotusetheV406onthesamefingerformore
than 2 hours as discomfort or pain may occur
• D onotusetheV406ondamagedortenderskin
•Donotlookdirectlyattheinfaredlightsource
•Ensurethereisnonailpolishonthepatientsfinger
• DonotusetheV406duringMRIorCTscans
Operation
Battery Installation
NOTE: Use only LIR2450 3.6V rechargeable Li-Ion
button cell batteries supplied
NOTE: Ensure the battery is installed correctly as
reverse polarity will damage the V406
Battery Charging
Use the charger supplied to charge the battery for
the V406. The charger has an LED charge indicator.
The LED is red when the battery is charging and
changes to green once the battery is charged.
Application
• OpentheV406andplacethepatientsfingerinto
theunitwiththefingernailfacingup
• Pressandholdthefrontbuttontopoweronthe
device and wait a few seconds for the reading
Warning -
SeeUserManual
AudiblePulse
Indicator
• DonotusetheV406inthepresenceof
explosive gases
• DonotusetheV406onpatientswhoareallergic
to rubber
• StopusingtheV406immediatelyifanyliquidsenter
the unit.
Display Rotation
During operation of the V406, short-press the front
button to rotate the display
AudiblePulseSetting
The V406 has an audible pulse feature, which
sounds when the patients pulse is being read. To
disable the audible pulse, press and hold the front
button during operation, the audible pulse icon will
disappear. To re-enable, press and hold the front
button again, the audible pulse icon will re-appear
AudibleAlarmSetting
The V406 has an audible alarm feature, which
sounds when a reading is below the preset range
or when the battery needs charging. To disable the
audible alarm, short-press the front button when
the alarm is sounding, the alarm is silenced for 30
seconds.
DARAY Ltd. Marquis Drive, Moira, Derbyshire DE12 6EJ
Tel: +44 (0)333 321 0971
DOCUMENTNo.QAM.SUG.V406.1012.1
Quick Setup Guide
LowPower-
Charge Battery
Audible Alarm
Indicator
Fax: +44 (0)333 321 0973
info@daray.co.uk
DARAY Ltd. registered in England no. 05276678
0120
www.daray.com
