Summary of Contents for Winmate IBMH100
-
Page 1: User Manual
Winmate M-Series Box PC Intel® Atom™ E3845 IBMH100 User Manual Version 1.0 Document Part Number: 915211171010... -
Page 2: Preface
(e. g., with A for October, B for November and C for December). For example, the serial number 1W16Axxxxxxxx means October of year 2016. IBMH100 M-Series Box PC... -
Page 3: Customer Service
CAUTION A Caution alert indicates potential damage to hardware and explains how to avoid the potential problem. WARNING! An Electrical Shock Warning indicates the potential harm from electrical hazards and how to avoid the potential problem. IBMH100 M-Series Box PC... -
Page 4: Safety Precautions
C. The equipment has been exposed to moisture. D. The equipment does not work well, or you cannot get it to work according to the user’s manual. E. The equipment has been dropped and damaged. F. The equipment has obvious signs of breakage. IBMH100 M-Series Box PC... -
Page 5: About This User Manual
About This User Manual This User Manual provides information about using the Winmate® M-Series Box PC with Intel® Atom™ E3845 processor. The documentation set for the M -Series Box PC provides information for specific user needs, and includes: M-Series Box PC User Manual – contains detailed description on how to use the Box PC, its components and features. -
Page 6: Table Of Contents
MBI D 8) ......................20 NTEL RIVER INDOWS 3.5 I TXE) D .................. 21 NTEL RUSTED NGINE NTERFACE NTEL RIVER 3.6 I ........................22 NTEL ETWORK ONNECTIONS 3.7 USB 3.0 D 7) ......................... 23 RIVER INDOWS IBMH100 M-Series Box PC... - Page 7 4.2.6 Boot ............................. 37 4.2.7 Save & Exit ..........................38 4.3 U ..................40 SING ECOVERY IZARD TO ESTORE OMPUTER CHAPTER 5 TECHNICAL SUPPORT ......................43 5.1 S ........................ 43 OFTWARE EVELOPER UPPORT 5.2 P ........................... 44 ROBLEM EPORT IBMH100 M-Series Box PC...
-
Page 8: General Information
General Information This chapter includes IBMH100 Industrial PC background information. IBMH100 M-Series Box PC... -
Page 9: Chapter 1 General Information

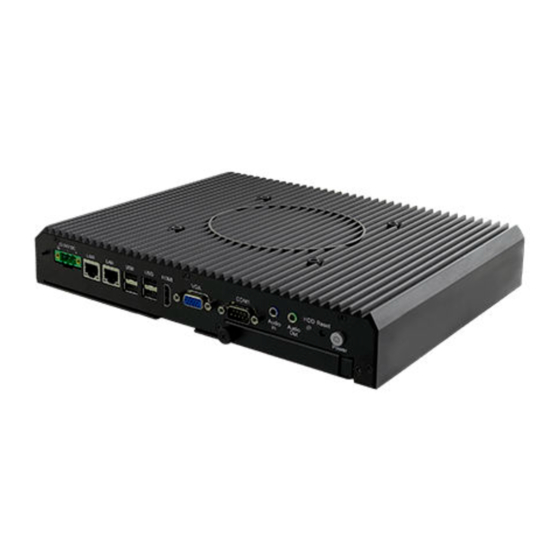

1.1 Introduction Thank you for choosing the Winmate® IBMH100 M-Series Box PC. This is versatile and cost-effective solution for your industrial needs. Intel® Atom™ E3845 1.91 GHz processor onboard with fanless cooling system assures steady performance and silent functioning. -
Page 10: Product Specifications
Display) Dimensions 276.18(L) x 228.80(W) x 45.20(H) Environmental Operating Temp. 0°C~+50°C Specifications Operating Humidity 30%-95% at 40 (non-condensing, RH) Optional Windows 10 IoT Enterprise Operating Operating System Windows Embedded 8 Standard System Windows Embedded Standard 7 IBMH100 M-Series Box PC... -
Page 11: Software Support
User Manual Chapter 1 General Information 1.3.2 Software Support The following drivers are available for the IBMH100 PRO Series Industrial PC: Item Driver Windows 7 Windows 8 Windows 10 Chipset Driver ☑ ☑ ☑ Graphics Driver ☑ ☑ ☑ Audio Driver ☑... -
Page 12: Packing List
Chapter 1 General Information 1.4 Packing List Carefully remove the box and unpack your IBMH100 Industrial PC. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. -
Page 13: Physical Description
Chapter 1 General Information 1.5 Physical Description This section explains physical characteristics of the IBMH100 M-Series Box PC. 1.5.1 I/O Placement The module front panel consists of 2.5” SSD Bay, power/reset buttons, audio jacks, two RJ45 connectors, HDMI and VGA outputs, and four USB2.0 ports. -
Page 14: Dimensions
Chapter 1 General Information 1.5.2 Dimensions Figure below shows the dimensions of the IBMH100 Industrial PC. Measurements shown in mm All Dimensions are ± 0.5 mm *Note: this is a simplified drawing and some components are not marked in detail. - Page 15 Hardware Specifications This chapter provides information on how to use jumpers and connectors on the motherboard, and the IBMH100 Industrial PC hardware specifications and installation instruction. IBMH100 M-Series Box PC...
-
Page 16: Chapter 2 Hardware Installation
Line In Green Line Out 2.1.3 COM1 Serial Port Connector The IBMH100 uses D-SUB 9pin connector to connect serial interfaces. Serial COM1 settings can be configured for RS-232, RS-422 or RS-485 by jumpers located on the motherboard. Pin № RS-232... -
Page 17: Hdmi Output Connector
Signal Name Pin № Pin № Data- Data+ 2.1.6 VGA Output Connector The IBMH100 has VGA connector (D-Sub 15pin Female). Use VGA cable to connect the display to the PC system. Pin № Signal Name Pin № Signal Name GREEN... -
Page 18: Lan Connector
User Manual Chapter 2 Hardware Installation 2.1.7 LAN Connector The IBMH100 equipped with one RJ45 10/100/1000 Mbps Ethernet interface for connecting to the internet. Pin № Signal Name Pin № Signal Name TX1+ TX1- TX2+ TX2- TX3+ TX3- TX4+ TX4-... -
Page 19: Hardware Installation
IBMH100 M-Series Box PC. WARNING! Switch off the power and unplug the power cord. Each time the IBMH100 M-Series Box PC is serviced, users should be aware of this condition. 2.2.1 Hard Disk Replacement Remove the hard disk: 1. -
Page 20: Pci Card/ Ram/ Internal Ssd/ Fuse Replacement
1. Turn the device right-side up, with the back toward you. 2. Loosen two Philips M3x5 screws that secure side cover. 3. Loosen four Philips M3x5 screws that secure top cover. 4. Remove PCI card/ RAM/ Internal SSD/ Fuse IBMH100 M-Series Box PC... - Page 21 User Manual Chapter 2 Hardware Installation Reverse this procedure to install the PCI card/ RAM/ Internal SSD/ Fuse. IBMH100 M-Series Box PC...
- Page 22 Driver Installation This chapter provides driver installation instructions. IBMH100 M-Series Box PC...
-
Page 23: Driver Installation
Driver Installation 3 Driver Installation This chapter provides driver installation instructions. 3.1 Chipset Driver Step 1 Insert the CD that comes with the motherboard. Open the file document “Chipset Driver” and click “infinst_auto.exe” to install driver. IBMH100 M-Series Box PC... - Page 24 User Manual Chapter 3 Driver Installation Step 2 Click Next to continue. Step 3 Click Yes to agree the license terms. IBMH100 M-Series Box PC...
- Page 25 Driver Installation Step 4 Click Next to install the driver. Step 5 Software setup progress window will appear, click Next to continue. Step 6 Click “Yes, I want to restart this computer now” to finish the installation. IBMH100 M-Series Box PC...
-
Page 26: Graphics Driver
Step 7 Setup Progress window will appear, click Next to continue the installation. Step 8 Setup is complete, click “Yes, I want to restart this computer now” to finish the installation and restart the computer. IBMH100 M-Series Box PC... -
Page 27: Audio Driver
Step 4 It might take some time to configure new software installation. Please wait. Step 5 Windows security will appear, click Install to install the audio driver. Step 6 The installation is complete, select “Yes, I want to restart my computer now”, and click Finish to complete the installation. IBMH100 M-Series Box PC... -
Page 28: Intel Mbi Driver (Windows 8)
Step 4 Setup progress will appear, please wait for the operations to be performed, then click Next to continue. Step 5 The installation is complete, click “Yes, I want to restart this computer now” to finish and restart the computer. IBMH100 M-Series Box PC... -
Page 29: Intel Trusted Engine Interface (Intel Txe) Driver
Step 4 Confirmation window will appear, click Next to continue the driver installation. Step 5 Please wait while the product is being installed. Step 6 The installation is complete, click Finish to complete the installation and restart the computer. IBMH100 M-Series Box PC... -
Page 30: Intel Network Connections
Step 5 In the Setup Options window choose “Intel® PRO Set for Windows® Device Manger”, “Intel ® Network Connections SNMP Agent” and “Advanced Network Services”. Step 6 The wizard is ready to begin installation, click Install to continue. Step 7 Install wizard completed, click Finish to complete the installation. IBMH100 M-Series Box PC... -
Page 31: Usb 3.0 Driver (Windows 7)
Step 5 Review Readme file information and click Next to continue the installation. Step 6 When the Setup Progress is complete click Next to continue. Step 7 Click “Yes, I want to restart this computer now” to finish and then restart your computer IBMH100 M-Series Box PC... - Page 32 AMI UEFI BIOS Setup BIOS Setup Utility is a program for configuration basic Input / Output system settings of the computer for optimum use. This chapter provides information on how to use BIOS setup, its functions and menu. IBMH100 M-Series Box PC...
-
Page 33: Ami Uefi Bios Setup
Display the boot menu. Lists all bootable devices that are connected to the system. With cursor ↑and cursor ↓and by pressing <ENTER>, select the device used for the boot. Pause Pressing the [Pause] key stops the POST. Press any other key to resume the POST. IBMH100 M-Series Box PC... -
Page 34: Main Menu
When you enter BIOS setup, the first menu that appears on the screen is the main menu.It contains the system information including BIOS version, processor RC version, system language, time, and date. Immediately after the [DEL] key is pressed during startup, the main BIOS setup menu appears: IBMH100 M-Series Box PC... - Page 35 The time in the battery when the format: device is turned off. [hh/mm/ss] Access Level The current user Changes to the Administrator is set up access settings level of access by the default IBMH100 M-Series Box PC...
-
Page 36: Advanced Menu
BIOS Setting Description Setting Effect options Opens ACPI Settings Configures ACPI settings Enter submenu Opens SMART Settings Configures SMART settings Enter submenu Configures System Super IO Opens Super IO Configuration Enter Chip parameters submenu IBMH100 M-Series Box PC... - Page 37 Enter submenu Opens Trusting Computing Trusted computing settings Enter submenu Opens USB Configuration Configures USB settings Enter submenu Platform Trust Opens Platform trust technology Enter Technology submenu For items marked ► press <Enter> for more options. IBMH100 M-Series Box PC...
-
Page 38: Usb Configuration
Disables this function EHCI Hand-off for OSs without ECHI Enable Enables this function hand-off support. User can Enable or Disable Disables this function USB mass storage disable USB mass driver support Enable Enables this function storage driver IBMH100 M-Series Box PC... - Page 39 Uses default value: for device will take before a root port it is 100 Device power-up it properly reports Auto ms, for a Hub port the delay itself to the host delay is taken from controller. Hub descriptor IBMH100 M-Series Box PC...
-
Page 40: Chipset
User Manual Chapter 4 Driver Installation 4.2.4 Chipset 4.2.4.1 Chipset – North Bridge Parameters IBMH100 M-Series Box PC... - Page 41 BIOS Setting Description Setting Effect options Disables this Disable Azalia HD Configures onboard audio function Audio function. Enables this Enable function Provides user with configuration Enable / Disable Configuration options for the USB controller, 2.0(EHCI) this function IBMH100 M-Series Box PC...
- Page 42 The system returns to its last known Last State awake state upon the return of the AC power Entering quite Quite (active) mode Serial IRQ Configures IRQ mode. Entering Mode Continuous Continuous (idle) mode IBMH100 M-Series Box PC...
-
Page 43: Security
BIOS Setting Description Setting Effect options Displays whether or not an Administrator Enter administrator password Enter Password Password has been set. Display whether or not a Enter User Password user password has been Enter Password set. IBMH100 M-Series Box PC... - Page 44 Enables this Enable function Enroll all factory default keys, Platform key, key Provides user with exchange key, configuration options for Authorized Select the Key Management secure boot key signatures, desired key management. Authorized timestamps, Forbidden signatures IBMH100 M-Series Box PC...
-
Page 45: Boot
Disables this Enables or disables Fast Disable function Fast Boot Boot to shorten the OS boot Enables this process. (Default: Disabled). Enable function Boot Option Priority Specifies the overall boot Hard drive as IBMH100 M-Series Box PC... -
Page 46: Save & Exit
BIOS Setup Main Menu This exits the BIOS Setup Saves the Enter <Yes> changes Discard Changes without saving the and Exit changes made in BIOS Return to the Esc <No> Setup to the CMOS. BIOS Setup IBMH100 M-Series Box PC... - Page 47 User defaults. Esc <No> BIOS Setup Main Menu Saves the Enter <Yes> changes Restore the User Restore User Defaults to all the setup Return to the Defaults options. Esc <No> BIOS Setup Main Menu IBMH100 M-Series Box PC...
-
Page 48: Using Recovery Wizard To Restore Computer
Yes to continue. Wait the recovery process to complete. During the recovery process, a command prompt will show up to indicate the percent of recovery process complete. The system will restart automatically after recovery completed. IBMH100 M-Series Box PC... - Page 49 User Manual Chapter 4 Driver Installation IBMH100 M-Series Box PC...
-
Page 50: Technical Support
Technical Support This chapter contains directory to technical support. IBMH100 M-Series Box PC... -
Page 51: Chapter 5 Technical Support
Winmate provides the following development kits (SDK) for IBMH100 M-Series Box Item File Type Description Watchdog SDK & AP Watchdog SDK and AP You can download SDK and Drivers from Winmate Download Center or Winmate File Share. Winmate Download Center: http://www.winmate.com/DownCenter/DownLoadCenter.asp?DownType=2905 Winmate File Share: https://winmate.box.com/v/Winmate-M-Series-Box-IBMH100... -
Page 52: Problem Report Form
_____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ IBMH100 M-Series Box PC... - Page 53 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
