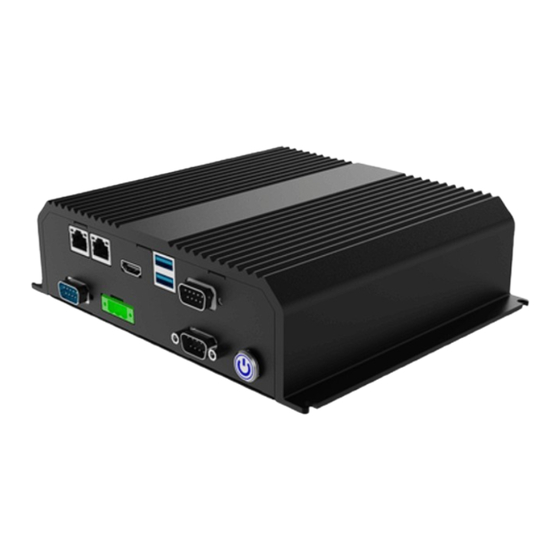

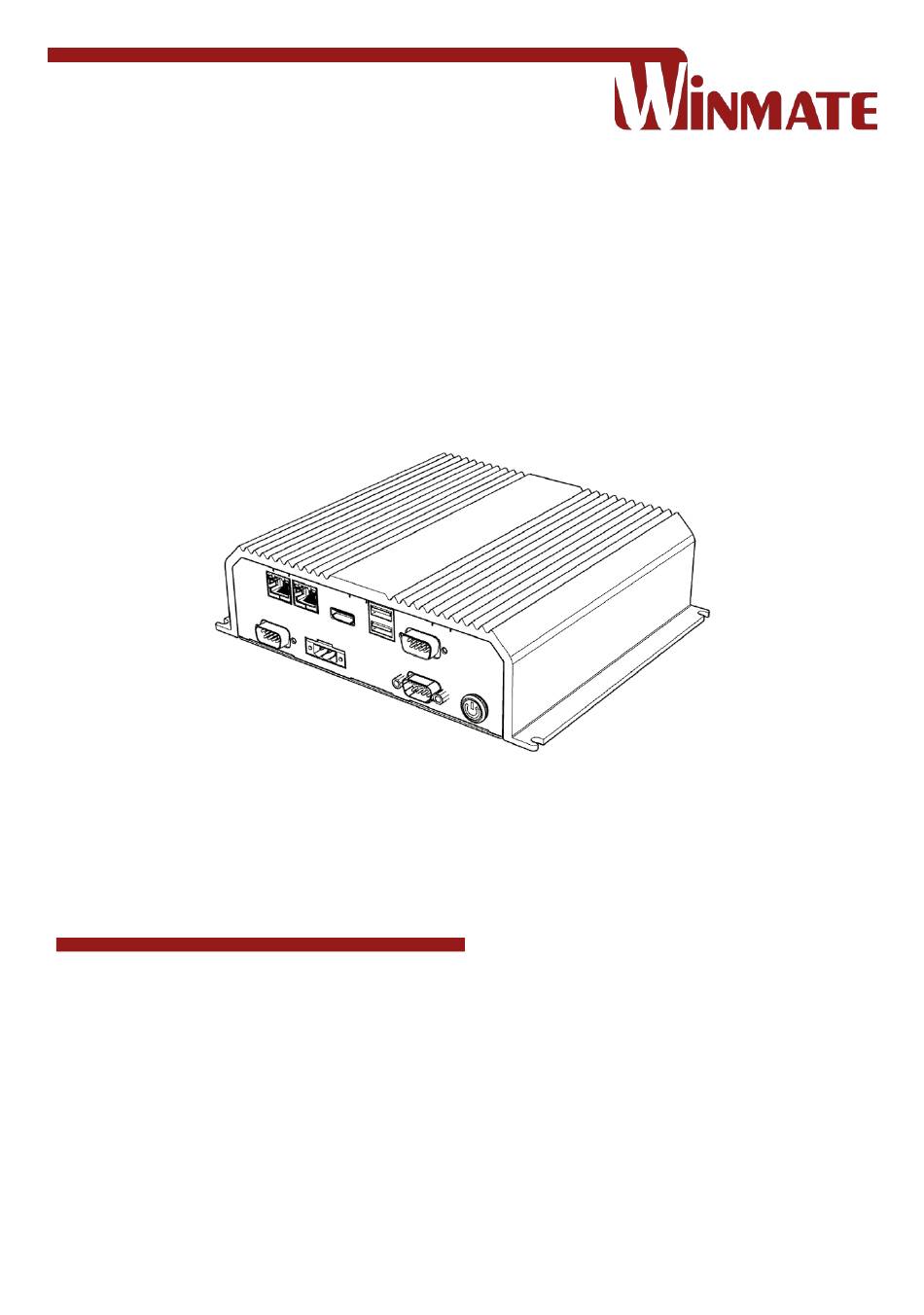

- Page 1 Embedded Computer Intel® Pentium® N6415 (1.5M Cache, up to 3.0GHz) I330EAC-IE3 User Manual Document Version 1.0 Document Part No. 91521110111T Please read these instructions carefully before using this product, and save this manual for future use.
-
Page 2: Table Of Contents
I330EAC-IE3 Embedded Computer User Manual Contents Preface ............................2 Chapter 1: Introduction ......................... 5 1.1 Features ..........................5 1.2 Package Contents ........................5 1.3 Product Overview ........................6 Chapter 2: Hardware Installation ....................7 2.1 Mounting ..........................7 2.2 Connecting the Power ......................7 Chapter 3: Operating the Device .................... -
Page 3: Preface
Preface Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. -
Page 4: Advisory Conventions
I330EAC-IE3 Embedded Computer User Manual Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. -
Page 5: Ec Declaration Of Conformity
Preface Important Information Federal Communications Commission Radio Frequency Interface Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received including interference that may ... -
Page 6: Chapter 1: Introduction
I330EAC-IE3 Embedded Computer User Manual Chapter 1: Introduction Congratulations on purchasing Winmate® EAC IE3 Embedded Computer. EAC IE3 Intel® Pentium® N6415 offers suitable for Factory Automation, Machine Vision, Surveillance, and Machine Automation. 1.1 Features Winmate® I330EAC-IE3 Embedded Computer offers the following features: ... -
Page 7: Product Overview
Chapter 1: Introduction 1.3 Product Overview Front Side I/O Connectors № № Description Description ❶ ❷ NMEA Port 0183 Digital IO Rear Side I/O Connectors № № Description Description ❶ ❷ Power Input ❸ ❹ Power Switch ❺ ❻ HDMI ❼... -
Page 8: Chapter 2: Hardware Installation
Warning! Connect the I330EAC-IE3 either to AC power or DC power. Do not perform both connections at the same time. Avertissement! Connectez l'I330EAC-IE3 à une alimentation CA ou CC. N'effectuez pas les deux connexions en même temps. -
Page 9: Chapter 3: Operating The Device
Chapter 3: Operating the Device 3.1 How to Enable Watchdog Download Winmate Watchdog utility to enable Watchdog. Find more information in “Watchdog Guide” that you can download from Download Center. To enable watchdog in Watchdog AP follow the instructions below: 1. -
Page 10: S4 Wake On Lan
I330EAC-IE3 Embedded Computer User Manual 3.2 S4 Wake on LAN In Windows 10 OS shutdown settings will not have Hibernate mode if your storage capacity is below 32 GB. Caution Check if your system storage capacity is 32 GB before entering Hibernation mode. -
Page 11: Changing Serial Port Settings
Chapter 3: Operating the Device 3.3 Changing Serial Port Settings You can change serial port settings in BIOS. To change serial port settings: 1. To enter the BIOS setup connect an external USB keyboard, external monitor and quickly press Del key when the prompt appears on the screen during start up. 2. - Page 12 I330EAC-IE3 Embedded Computer User Manual 4. Change Setting from UART mode to RS232/422/485. 5. Exit BIOS utility.
-
Page 13: Using Recovery Wizard To Restore Computer
Chapter3: Operating the Device 3.4 Using Recovery Wizard to Restore Computer Note: Before starting the recovery process, make sure to backup all user data. The data will be lost after the recovery process. Important: Before starting the recovery process, remove the PCI/ PCIe card and CFast card. -
Page 14: Chapter 4: Driver Installation
This chapter contains driver installation guide. Follow the instructions below to complete the installation. You will quickly complete the installation. This chapter provides instructions on how to install drivers on the I330EAC-IE3 Box PC. 4.1 Chipset Driver Follow instructions below to install Chipset driver. - Page 15 Chapter 4: Driver Installation 3. Select Accept to agree with the terms of license agreement. 4. Check the ReadMe file information, select Install to continue. 5. Wait for the driver to be installed. When installation completed, select Restart Now to restart your computer.
-
Page 16: Graphic Driver
I330EAC-IE3 Embedded Computer User Manual 4.2 Graphic Driver Follow instructions below to install Graphic driver. 1. Open the Driver CD (included in the package) and select Graphic driver. 2. Installation window will pop up, select Next. - Page 17 Chapter 4: Driver Installation 3. Select Accept to agree with the terms of license agreement. 4. Check the ReadMe file information, select Next to continue.
- Page 18 I330EAC-IE3 Embedded Computer User Manual 5. Wait for the driver to be installed. 6. Select Next to continue. 7. After installation is completed, select “Yes, I want to restart this computer now”, and click Finish.
-
Page 19: Management Engine (Me)
Chapter 4: Driver Installation 4.3 Management Engine (ME) Follow instructions below to install Management Engine (ME) . 1. Open the Driver CD (included in the package) and select ME driver. 2. Select Next to start the installation. - Page 20 I330EAC-IE3 Embedded Computer User Manual 3. Select Next to agree with the terms of license agreement. 4. Wait for the driver to be installed. 5. When installation completed, select inish complete installation.
-
Page 21: Audio Driver
Chapter 4: Driver Installation 4.4 Audio Driver Follow instructions below to install Audio driver. 1. Open the Driver CD (included in the package) and select Audio driver. 2. Select Start to continue. 3. When installation completed, select Finish complete installation. -
Page 22: Ethernet Driver
I330EAC-IE3 Embedded Computer User Manual 4.5 Ethernet Driver Follow instructions below to install LAN driver. 1. Open the Driver CD (included in the package) and select LAN driver. 2. When compression is complete, select Next. - Page 23 Chapter 4: Driver Installation 3. Read the license agreement, and then select Next. 4. System displays the installed packages, select Next.
- Page 24 I330EAC-IE3 Embedded Computer User Manual 5. Confirm the installation, select Install to start the installation. 6. When installation is completed, select Finish to close the window.
-
Page 25: Watchdog Driver
Chapter 4: Driver Installation 4.6 Watchdog Driver For more details about Winmate Watchdog, please download Watchdog Guide from Winmate Downloads Center. Follow instructions below to install Watchdog driver. 1. Type “cmd” in the run box then the cmd.exe will appear in programs. - Page 26 I330EAC-IE3 Embedded Computer User Manual 5. Wait for installation to complete. When installation is complete, press any key to close. 6. Open the Driver CD (included in the package) and select Watchdog AP.
- Page 27 Chapter 4: Driver Installation 7. Select Next. 8. The installed storage location is displayed, select Next to continue.
- Page 28 I330EAC-IE3 Embedded Computer User Manual 9. Select Next to start the installation. 10. When installation is completed, select Finish to close the window.
-
Page 29: Appendix
Appendix Appendix Appendix A: Hardware Specifications Model Name I330EAC-IE3 Processor Intel® Pentium® N6415 (1.5M Cache, up to 3.0GHz) 1 x SO-DIMM, DDR4 3200 MHz, 4GB Memory 8GB (Optional) 16GB (Optional) 1 x M.2 2242 Bkey System Storage SSD 256GB Specification... -
Page 30: Appendix B: System Dimensions
I330EAC-IE3 Embedded Computer User Manual Appendix B: System Dimensions Appendix C: Software Developer Support You can download drivers and Software Development Kit (SDK) and Drivers from Winmate Download Center. Winmate Download Center http://www.winmate.com />Support > Download Center > Embedded Computing > I330EAC-IE3... - Page 31 NOTE...
- Page 32 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © 2024 Winmate Inc. All rights reserved.
