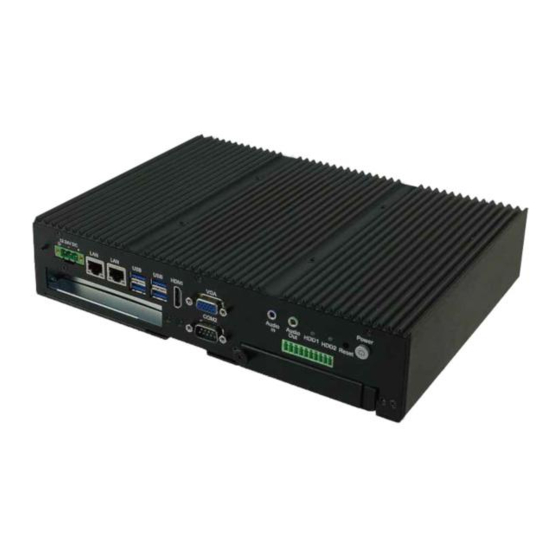

M-Series Box PC
Intel® Core™ i5-6200U 2.3 GHz, up to 2.8 GHz
IKMH100
User Manual
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M Series and is the answer not in the manual?

Questions and answers

Related Manuals for Winmate M Series

Summary of Contents for Winmate M Series

  • Page 1 All manuals and user guides at all-guides.com M-Series Box PC Intel® Core™ i5-6200U 2.3 GHz, up to 2.8 GHz IKMH100 User Manual Version 1.0...

  • Page 2: Preface

    All manuals and user guides at all-guides.com USER MANUAL PREFACE PREFACE Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer.
  • Page 3 All manuals and user guides at all-guides.com USER MANUAL PREFACE Customer Service We provide a service guide as below for any problem by the following steps: First, contact your distributor, sales representative, or our customer service center for technical support if you need additional assistance. You need to prepare the following information before you call: ...
  • Page 4 All manuals and user guides at all-guides.com USER MANUAL PREFACE Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory.
  • Page 5 All manuals and user guides at all-guides.com USER MANUAL PREFACE Safety Precautions WARNING! Always completely disconnect the power from the device whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges.
  • Page 6 All manuals and user guides at all-guides.com...

  • Page 7: About This User Manual

    ABOUT THIS USER MANUAL ABOUT THIS USER MANUAL This User Manual provides information about using the Winmate® M-Series Box PC with Intel® Core™ i5-6200U processor. The documentation set for the M -Series Box PC provides information for specific user needs, and includes: ...
  • Page 8 All manuals and user guides at all-guides.com...

  • Page 9: Table Of Contents

    All manuals and user guides at all-guides.com USER MANUAL CONTENTS CONTENTS PREFACE ..............................II ABOUT THIS USER MANUAL ........................I CHAPTER 1: GENERAL INFORMATION......................2 1.1 I ............................2 NTRODUCTION 1.2 P ........................... 2 RODUCT EATURES 1.3 P ........................... 3 ACKAGE ONTENTS 1.4 P...
  • Page 10 All manuals and user guides at all-guides.com USER MANUAL CONTENTS 3.3 U ..................47 SING ECOVERY IZARD TO ESTORE OMPUTER 3.4 H ........................49 OW TO NABLE ATCHDOG CHAPTER 4: DRIVER INSTALLATION ......................52 4.1 C ........................52 HIPSET RIVER NSTALLATION 4.2 G ........................
  • Page 11 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 1 GENERAL INFORMATION GENERAL INFORMATION This chapter includes IKMH100 M-Series Box PC background information. IKMH100 M-SERIES BOX PC...

  • Page 12: Chapter 1: General Information

    1.1 Introduction Thank you for choosing the Winmate® IKMH100 M-Series Box PC. This is versatile and cost-effective solution for your industrial needs. Intel® Core ™ i5-6200U 2.70 GHz (Skylake) processor onboard with fanless cooling system assures steady performance and silent functioning.

  • Page 13: Package Contents

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 1 GENERAL INFORMATION 1.3 Package Contents Carefully remove the box and unpack your IKMH100 M-Series Box PC. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately.

  • Page 14: Physical Description

    RJ45 connectors, HDMI and VGA outputs, and four USB 3.0 ports. IKMH100 M-Series Box PC has customizable expansion slot (Preliminary). Figure below shows the dimensions of the Winmate® IKMH100 M-Series Box PC. Measurements shown in mm All Dimensions are ± 0.5 mm *Note: this is a simplified drawing and some components are not marked in detail.

  • Page 15: Power Button

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 1 GENERAL INFORMATION Description Description ① PCIe Slot Cover for one ⑩ Mic in half-length PCIe x4 card ② 9-29V isolation DC-in ⑪ 2.5” HDD x 1 ③ Giga LAN ⑫...

  • Page 16: Led Indicator

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 1 GENERAL INFORMATION 1.7 LED Indicator The IKMH100 provides one HDD LED indicator for status monitoring. LED Indicator: LED Indicator Color Description Slot is empty; drive is not yet discovered by the system.
  • Page 17 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 2 HARDWARE INSTALLATION HARDWARE INSTALLATION This chapter provides information on how to use jumpers and connectors on the motherboard, and the IKMH100 M-Series Box PC hardware specifications and installation instruction. IKMH100 M-SERIES BOX PC...

  • Page 18: Chapter 2: Hardware Installation

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 2 HARDWARE INSTALLATION CHAPTER 2: HARDWARE INSTALLATION This chapter provides information on external connectors on IKMH100 M-Series Box PC and hardware specifications and installation instruction. 2.1 Connector Description This section includes I/O side connectors and its pinouts. 2.1.1 Isolated DC in Connector IKMH100 has a 3pin terminal block that accepts 9~29V DC input.

  • Page 19: Usb 3.0 Connector

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 2 GETTING STARTED 2.1.4 USB 3.0 Connector The IKMH100 has four USB 3.0 connectors. Use USB3.0 connectors to connect external devices such as mouse or keyboard to the device. Pin № Signal Name Pin №...

  • Page 20: Giga Lan Connector

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 2 HARDWARE INSTALLATION 2.1.7 Giga LAN Connector The IKMH100 equipped with one RJ45 10/100/1000 Mbps Ethernet interface for connecting to the internet. Pin № Signal Name Pin № Signal Name TX1+ TX1- TX2+...

  • Page 21: Configuring Serial Port Settings

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 2 GETTING STARTED 2.2 Configuring Serial Port Settings Serial Port COM1 can be configured for RS-232, RS-422 or RS-485. Jumpers are located on the motherboard. You need to open the housing in order to access the jumpers. CAUTION/ ATTENTION It is recommended to use factory jumper settings.

  • Page 22: Hardware Installation

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 2 HARDWARE INSTALLATION 2.3 Hardware Installation This section explains how to replace HDD/SDD, install PCI Card/ RAM/ Internal SSD, and replace fuses on the IKMH100 M-Series Box PC. WARNING! Switch off the power and unplug the power cord. Each time the IKMH100 M-Series Box PC is serviced, users should be aware of this condition.

  • Page 23: Pci Card, Ram, Internal Ssd, Fuse Replacement

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 2 HARDWARE INSTALLATION 2.3.2 PCI Card, RAM, Internal SSD, Fuse Replacement To remove the PCI card, RAM, Internal SSD, Fuse: 1. Turn the device right-side up, with the back toward you. 2.
  • Page 24 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 2 HARDWARE INSTALLATION Reverse this procedure to install the PCI card/ RAM/ Internal SSD/ Fuse. IKMH100 M-SERIES BOX PC...

  • Page 25: Expansion Slot Replacement (Preliminary)

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 2 HARDWARE INSTALLATION 2.3.3 Expansion Slot Replacement (Preliminary) IKMH100 M-Series Box PC has customizable expansion slot. To replace expansion slot: 1. Undo two screws that secure expansion slot to the Box PC. 2.
  • Page 26 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 3 AMI UEFI BIOS SETUP AMI UEFI BIOS SETUP BIOS Setup Utility is a program for configuration basic Input / Output system settings of the computer for optimum use. This chapter provides information on how to use BIOS setup, its functions and menu.

  • Page 27: Chapter 3: Ami Uefi Bios Setup

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 5 AMI UEFI BIOS SETUP CHAPTER 3: AMI UEFI BIOS SETUP BIOS Setup Utility is a program for configuration basic Input / Output system settings of the computer for optimum use. This chapter provides information on how to use BIOS setup, its functions and menu.

  • Page 28: Bios Functions

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 3 AMI UEFI BIOS SETUP 3.2 BIOS Functions BIOS Navigation Keys BIOS navigation keys for keyboard control are listed below. The following keys are enabled during POST: Function Enters the BIOS setup menu. Display the boot menu.

  • Page 29: Main Menu

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 5 AMI UEFI BIOS SETUP 3.2.1 Main Menu When you enter BIOS setup, the first menu that appears on the screen is the main menu.It contains the system information including BIOS version, processor RC version, system language, time, and date.

  • Page 30: Advanced Menu

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 3 AMI UEFI BIOS SETUP 3.2.2 Advanced Menu The advanced menu also uses to set configuration of the CPU and other system devices. There are sub menus on the left frame of the screen. IMPORTANT: Handle advanced BIOS settings page with caution.
  • Page 31 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 5 AMI UEFI BIOS SETUP BIOS Setting Description Setting Option Effect Intel ® I211 Gigabit Configure Gigabit Network Enter Opens submenu device parameters Connection Configures Trusted Trusted Computing Enter Opens submenu Computing settings Configures ACPI ACPI Settings...
  • Page 32 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 3 AMI UEFI BIOS SETUP 3.2.2.1 CPU Configuration CPU Configuration allows you to change CPU settings. Use key arrows to navigate through the menu. Setting BIOS Setting Description Effect Option Hyper-threading is a function in processors Enable/...
  • Page 33 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 5 AMI UEFI BIOS SETUP Enables a CPU to act as if you have several independent Intel Virtualization computers, in order Enable/ Enable or disable this Technology to enable several Disable function operating systems to...
  • Page 34 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 3 AMI UEFI BIOS SETUP 3.2.2.2 Trusted Computing BIOS Setting Description Setting Option Effect Enable or disable BIOS support for security device. O.S. will not show Security Device Enable or disable this Security Device.
  • Page 35 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 5 AMI UEFI BIOS SETUP 3.2.2.3 ACPI Settings BIOS Setting Description Setting Option Effect Enable or disable Enable ACPI Auto Enable or disable BIOS ACPI Auto Enabled/ Disabled Configuration this function Configuration To enable or Enable or disable...
  • Page 36 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 3 AMI UEFI BIOS SETUP 3.2.2.4 F81866 Super IO Configuration BIOS Setting Description Setting Option Effect Set Parameters of Serial Ports. User can Enabled/ Enable or Serial Port 1,2 Enable/Disable the serial Disabled disable Serial Configuration...
  • Page 37 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 5 AMI UEFI BIOS SETUP 3.2.2.5 Hardware Monitor You can check PC Health Status parameters such as system temperature, fan speed etc. IKMH100 M-SERIES BOX PC...
  • Page 38 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 3 AMI UEFI BIOS SETUP 3.2.2.6 RTC Wake Settings BIOS Setting Description Setting Option Effect Enable or disable Configure wake this function. Wake system from from full shutdown Enabled/ When enabled, the and boot mode Disabled system will wake...
  • Page 39 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 5 AMI UEFI BIOS SETUP 3.2.2.7 SATA Configuration BIOS Setting Description Setting Option Effect Allows users to enable or disable Enable or disable SATA Controller(s) Enabled/ Disabled the SATA this function controller(s).
  • Page 40 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 3 AMI UEFI BIOS SETUP 3.2.2.8 CSM Configuration Compatability Support Module Configuration. BIOS Setting Description Setting Effect Option CSM Support The Compatibility Support Enabled/ Enable or disable the Module (CSM) is a Disabled Compatibility component of the UEFI...
  • Page 41 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 5 AMI UEFI BIOS SETUP 3.2.2.9 USB Configuration BIOS Setting Description Setting Option Effect Auto Disable legacy support if no USB devices are connected Legacy USB User can enable or Disable Will keep USB Support...
  • Page 42 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 3 AMI UEFI BIOS SETUP EHCI Hand‐off This is a *Disabled Disables this workaround for function OSs without ECHI Enable Enables this hand‐ off support. function The EHCI ownership change should be claimed by EHCI driver.

  • Page 43: Chipset Menu

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 5 AMI UEFI BIOS SETUP 3.2.3 Chipset Menu BIOS Setting Description Setting Option Effect System Agent (SA) System Agent (SA) Enter Opens submenu Configuration Parameters PCH-IO PCH Parameters Enter Opens submenu Configuration IKMH100 M-SERIES BOX PC...
  • Page 44 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 3 AMI UEFI BIOS SETUP 3.2.3.1 System Agent (SA) Configuration BIOS Setting Description Setting Option Effect VT-d can help end users improve security and reliability of the systems and also Enables or disables VT-d Enable/Disable...
  • Page 45 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 5 AMI UEFI BIOS SETUP 3.2.3.1.1 Graphics Configuration BIOS Setting Description Setting Option Effect Graphics turbo Set up the value of Graphics Turbo IMON current 14~31 Graphics turbo IMON Current values supported IMON current 14~31...
  • Page 46 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 3 AMI UEFI BIOS SETUP 3.2.3.2 PCI Configuration BIOS Setting Description Setting Option Effect PCI Express Configures PCI Enter Opens submenu Configuration Express parameters Configures USB USB Configuration Enter Opens submenu parameters Configures PCH Enables or disables...
  • Page 47 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 5 AMI UEFI BIOS SETUP 3.2.3.2.1 PCI Express Configuration BIOS Setting Description Setting Option Effect The control of Active State Power DMI Link ASPM Management on Enable/ Enables or disables Control both NB side and Disable...
  • Page 48 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 3 AMI UEFI BIOS SETUP PCI Express Root BIOS Setting Description Setting Option Effect PCI Express Root The control of PCI Enable/ Enables or disables Port 1 Express Root Port Disable this function Configures ASPM...
  • Page 49 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 5 AMI UEFI BIOS SETUP Configures Setting up the Reserved Memory Reserved Memory Set the value value parameters Configures Prefetchable Prefetchable Setting up the Set the value Memory Memory value parameters USB Configuration BIOS Setting...

  • Page 50: Security Menu

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 3 AMI UEFI BIOS SETUP 3.2.4 Security Menu This section allows you to configure and improve your system and allows you to set up some system features according to your preference. BIOS Setting Description Setting Option...
  • Page 51 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 5 AMI UEFI BIOS SETUP 3.2.4.1 Security Boot Menu BIOS Setting Description Setting Option Effect Secure Boot Secure Boot is a Enable/ Enables or disables feature designed to Disable this function prevent malicious software and unauthorized...
  • Page 52 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 3 AMI UEFI BIOS SETUP Key Management IKMH100 M-SERIES BOX PC...

  • Page 53: Boot Menu

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 5 AMI UEFI BIOS SETUP 3.2.5 Boot Menu BIOS Setting Description Setting Option Effect Setup Prompt Allows user to Enter Set the prompt Timeout configure the timeout number of seconds to stay in BIOS setup prompt screen.
  • Page 54 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 3 AMI UEFI BIOS SETUP Boot Option Specifies the Ex: Boot Option#1 Ex.: Set Network as Priorities overall boot order (network); the first priority from the available Options: devices #1~#7 Hard Drive 2 BBS Specifies the boot Enter...

  • Page 55: Save&Exit

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 5 AMI UEFI BIOS SETUP 3.2.6 Save&Exit BIOS Setting Description Setting Option Effect Save Changes and This saves the <YES> Save changes Exit changes to the CMOS and exits the BIOS Setup program.
  • Page 56 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 3 AMI UEFI BIOS SETUP setup options. <NO> Return to the BIOS Setup Main Menu Discard Changes Discard changes <YES> Saves the changes done so far to any of the setup <NO>...

  • Page 57: Using Recovery Wizard To Restore Computer

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 5 AMI UEFI BIOS SETUP 3.3 Using Recovery Wizard to Restore Computer Note: Before starting the recovery process, make sure to backup all user data. The data will be lost after the recovery process. To enable quick one-key recovery procedure: ...
  • Page 58 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 3 AMI UEFI BIOS SETUP A warning message about data loss will show up. Make sure the data is backed up before recovery, and click Yes to continue. Wait the recovery process to complete. During the recovery process, a command prompt will show up to indicate the percent of recovery process complete.

  • Page 59: How To Enable Watchdog

    To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Share. Refer to the User Manual for more details. To enable watchdog in Watchdog AP follow the instructions below: 1.
  • Page 60 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 3 AMI UEFI BIOS SETUP 3. In Watchdog utility window set countdown time and periodically feed time, or disable watchdog. Example: Every 10 min watchdog will monitor the system, in case any error occurs the system will restart automatically when the countdown time reaches 0.
  • Page 61 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION DRIVER INSTALLATION This chapter provides driver installation instructions. IKMH100 M-SERIES BOX PC...

  • Page 62: Chapter 4: Driver Installation

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION CHAPTER 4: DRIVER INSTALLATION This chapter provides instructions on how to install drivers on the IKHM100 M-Series Box PC. 4.1 Chipset Driver Installation Follow instructions below to install Chipset driver. 1.
  • Page 63 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 4. Check the ReadMe file information, select Install to continue. IKMH100 M-SERIES BOX PC...
  • Page 64 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 5. Wait for the driver to be installed. 6. When installation completed, select Restart Now to restart your computer. IKMH100 M-SERIES BOX PC...

  • Page 65: Graphic Driver Installation

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 4.2 Graphic Driver Installation Follow instructions below to install Graphic driver. 1. Open the Driver CD (included in the package) and select Graphic driver. 2. Installation window will pop up, select Next. IKMH100 M-SERIES BOX PC...
  • Page 66 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 3. Select Yes to agree with the terms of license agreement. 4. Check the ReadMe file information, select Next to continue. IKMH100 M-SERIES BOX PC...
  • Page 67 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 5. Wait for the driver to be installed. 6. Select Next to continue. IKMH100 M-SERIES BOX PC...
  • Page 68 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 7. After installation is completed, select “Yes, I want to restart this computer now”, and click Finish. IKMH100 M-SERIES BOX PC...

  • Page 69: Me And Net Framework 1.1 Driver Installation

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 4.3 ME and NET Framework 1.1 Driver Installation Follow instructions below to install Management Engine (ME) and .NET Framework 1.1 driver. 1. Open the Driver CD (included in the package) and select ME driver. 2.
  • Page 70 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 3. Select .NET Framework 1.1. 4. Select Yes to start the installation. IKMH100 M-SERIES BOX PC...
  • Page 71 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 5. Wait for the driver to be installed. 6. When installation completed, select Restart Now to restart your computer. 7. Again select the ME to continue installation. Select Next. IKMH100 M-SERIES BOX PC...
  • Page 72 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 8. Please check the license agreement, and then select Next. 9. Select Next to start the installation. 10. Wait for the driver to be installed. IKMH100 M-SERIES BOX PC...
  • Page 73 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 11. When installation completed, select Finish complete installation. IKMH100 M-SERIES BOX PC...

  • Page 74: Audio Driver Installation

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 4.4 Audio Driver Installation Follow instructions below to install Audio driver. 1. Open the Driver CD (included in the package) and select Audio driver. 2. Select Next to continue. IKMH100 M-SERIES BOX PC...
  • Page 75 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 3. Wait for the driver to be installed. 4. When installation completed, select Finish complete installation. IKMH100 M-SERIES BOX PC...

  • Page 76: Lan Driver Installation

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 4.5 LAN Driver Installation Follow instructions below to install LAN driver. 1. Open the Driver CD (included in the package) and select LAN driver. 2. Compression has started. IKMH100 M-SERIES BOX PC...
  • Page 77 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 3. When compression is complete, select Next. 4. Read the license agreement, and then select Next. 5. System displays the installed packages, select Next. IKMH100 M-SERIES BOX PC...
  • Page 78 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 6. Confirm the installation, select Install to start the installation. 7. Wait for installation to complete. 8. When installation is completed, select Finish to close the window. IKMH100 M-SERIES BOX PC...

  • Page 79: Rst Driver Installation

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 4.6 RST Driver Installation Follow instructions below to install RTS driver. 1. Open the Driver CD (included in the package) and select RTS driver. 2. Select Next to continue. IKMH100 M-SERIES BOX PC...
  • Page 80 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 3. Read the license agreement, and then select Next. 4. Confirm the installation, select Install to start the installation. 5. Select Next to continue. IKMH100 M-SERIES BOX PC...
  • Page 81 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 6. Select Next to start the installation. 7. Wait for installation to complete. 8. Warning message will pop up, select Install. IKMH100 M-SERIES BOX PC...
  • Page 82 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 9. Installation continues. 10. When installation is completed, select Finish to close the window. IKMH100 M-SERIES BOX PC...

  • Page 83: Microsoft .Net Framework Driver Installation

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 4.7 Microsoft .NET Framework Driver Installation Follow instructions below to install Microsoft .NET Framework. 1. Open the Driver CD (included in the package) and select .NET Framework. 2.
  • Page 84 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 3. Read the license agreement, and then select “I agree”. 4. Wait for installation to complete. 5. When installation is completed, select Finish to close the window. IKMH100 M-SERIES BOX PC...

  • Page 85: Watchdog Driver Installation

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 4.8 WatchDog Driver Installation For more details about Winmate Watchdog, please download Watchdog Guide from Winmate Downloads Center: http://dc.winmate.com.tw/_downloadCenter/2017/Embedded%20Computing/Watc hdog%20Guide_IB_IH_IV_IK.pdf Follow instructions below to install Watchdog driver.
  • Page 86 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 3. Wait for installation to complete. 4. When installation is complete, press any key to close. 5. Open the Driver CD (included in the package) and select Watchdog AP. IKMH100 M-SERIES BOX PC...
  • Page 87 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 6. Select Next. 7. The installed storage location is displayed, select Next to continue. 8. Select Next to start the installation. IKMH100 M-SERIES BOX PC...
  • Page 88 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 4 DRIVER INSTALLATION 9. Wait for installation to complete. 10. When installation is completed, select Close to close the window. IKMH100 M-SERIES BOX PC...
  • Page 89 All manuals and user guides at all-guides.com USER MANUAL CHAPTER 5 TECHNICAL SUPPORT TECHNICAL SUPPORT This chapter contains directory to technical support. IKMH100 M-SERIES BOX PC...

  • Page 90: Chapter 5: Technical Support

    This chapter includes technical support documents and software developing kit (SDK). If any problem occurs fill in problem report form enclosed and immediately contact 5.1 Software Developer Support Winmate provides the following development kits (SDK) for IKMH100 M-Series Box Item File Type Description Watchdog SDK & AP...

  • Page 91: Problem Report Form

    All manuals and user guides at all-guides.com USER MANUAL CHAPTER 5 TECHNICAL SUPPORT 5.2 Problem Report Form M-Series Box PC (Modular Design) Customer name: Company: Tel.: Fax: E-mail: Date: Product Serial Number: ____________________________________________________________________ Problem Description: Please describe the problem as clearly as possible. Detailed description of the occurred problem will allow us to find the best solution to solve the problem as soon as possible.
  • Page 92 All manuals and user guides at all-guides.com USER MANUAL APPENDIX A PCIE CARD DIMENSIONS PCIE CARD DIMENSIONS This section includes mechanical dimensions of Expansion PCIe Card Appendix IKMH100 M-SERIES BOX PC...

  • Page 93: Appendix A: Pcie Card Dimensions

    All manuals and user guides at all-guides.com USER MANUAL APPENDIX A PCIE CARD DIMENSIONS APPENDIX A: PCIE CARD DIMENSIONS This section includes mechanical dimensions of Expansion PCIe Card. Expansion PCIe Card Dimensions PCIe Card Height Limit IKMH100 M-SERIES BOX PC...
  • Page 94 All manuals and user guides at all-guides.com USER MANUAL APPENDIX B PRODUCT SPECIFICATIONS PRODUCT SPECIFICATIONS This section includes IKMH100 technical specifications. Appendix IKMH100 M-SERIES BOX PC...

  • Page 95: Appendix B: Product Specifications

    All manuals and user guides at all-guides.com USER MANUAL APPENDIX B PRODUCT SPECIFICATIONS APPENDIX B: PRODUCT SPECIFICATIONS Hardware Specifications Model Name IKMH100 Intel® Core™ i5-6200U 2.3 GHz, up to 2.8 GHz BIOS AMI UEFI BIOS Graphic Chipset Intel® HD Graphics 520 System Memory SODIMM DDR4L-2133 4GB, option up to 8GB (2 slots) Main Storage...
  • Page 96 All manuals and user guides at all-guides.com USER MANUAL APPENDIX B PRODUCT SPECIFICATIONS Operating 0°C~+50°C Temp. Environmental Specifications Operating 30%-95% at 40 (non-condensing, RH) Humidity Optional Windows 10 IoT Enterprise Operating Operating Windows Embedded 8 Standard System System Windows Embedded Standard 7 IKMH100 M-SERIES BOX PC...
  • Page 97 All manuals and user guides at all-guides.com Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
