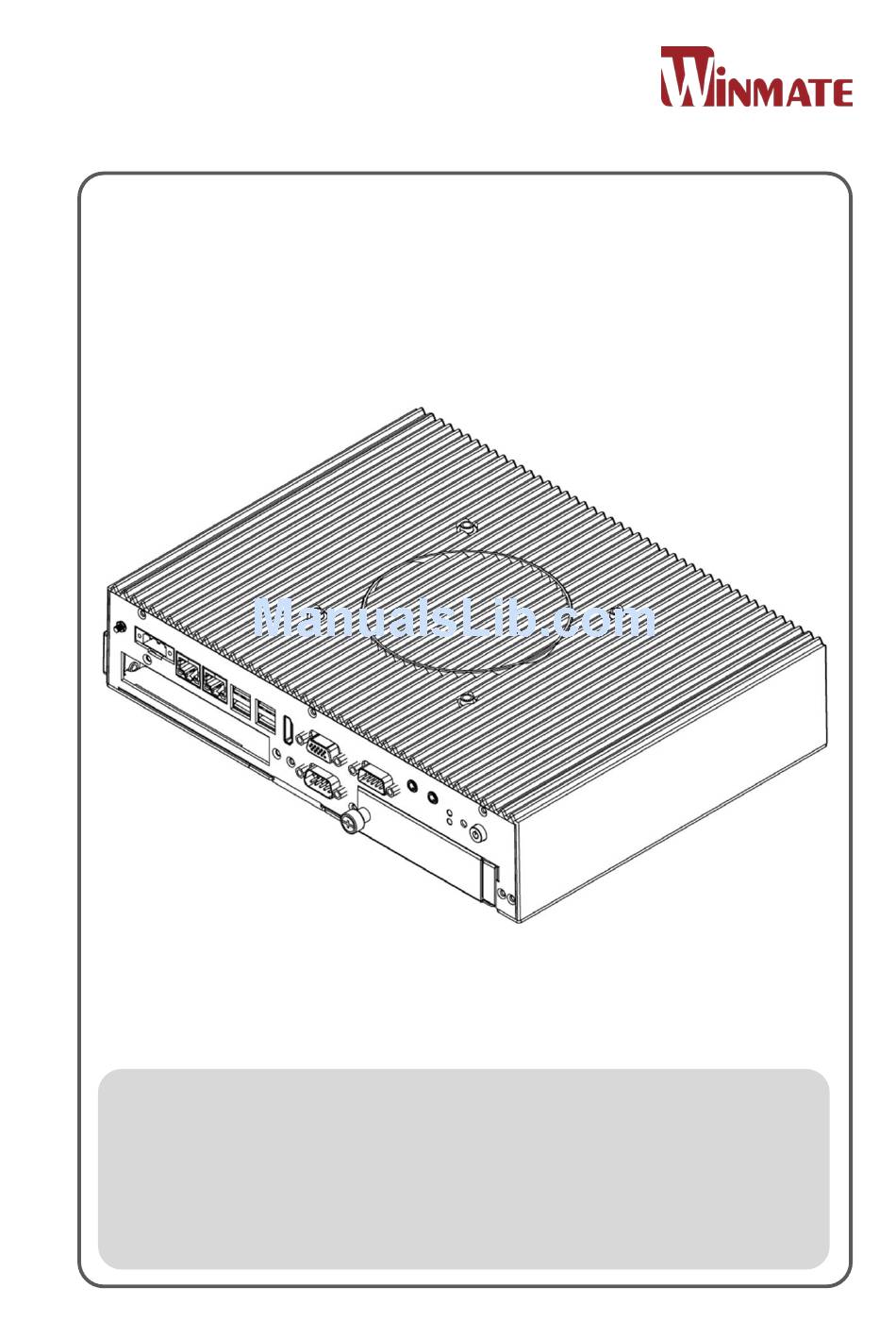

- Page 1 M-Series Box PC Intel® Core ™ i5-5200U 2.70 GHz IHMH100 User Manual Version 1.1 Document Part Number: 91521117100A...
-
Page 2: Table Of Contents
USER MANUAL CONTENTS CONTENTS PREFACE ..............................- 4 - ABOUT THIS USER MANUAL ........................- 8 - CHAPTER 1: GENERAL INFORMATION ....................- 10 - 1.1 I ............................ - 10 - NTRODUCTION 1.2 F ............................- 10 - EATURES 1.3 P .......................... - Page 3 USER MANUAL CONTENTS 4.2 BIOS F ..........................- 47 - UNCTIONS 4.2.1 Main Menu ..........................- 48 - 4.2.2 Advanced Menu ........................- 50 - 4.2.3 Chipset Menu .......................... - 64 - 4.2.4 Security Menu ......................... - 72 - 4.2.5 Boot Menu..........................- 75 - 4.2.6 Save &...
-
Page 4: Preface
USER MANUAL PREFACE PREFACE Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. - Page 5 USER MANUAL PREFACE Customer Service We provide a service guide as below for any problem by the following steps: First, contact your distributor, sales representative, or our customer service center for technical support if you need additional assistance. You need to prepare the following information before you call: ...
- Page 6 USER MANUAL PREFACE Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory.
- Page 7 USER MANUAL PREFACE Safety Precautions WARNING! Always completely disconnect the power from OPS module whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. CAUTION Always ground yourself to remove any static charge before touching the CPU card.
-
Page 8: About This User Manual
ABOUT THIS USER MANUAL ABOUT THIS USER MANUAL This User Manual provides information about using the Winmate® M-Series Box PC with Intel® Core ™ i5-5200U 2.70 GHz processor. The documentation set for the M -Series Box PC provides information for specific user needs, and includes: ... -
Page 9: Chapter 1: General Information
USER MANUAL CHAPTER 1 GENERAL INFORMATION GENERAL INFORMATION This chapter includes IHMH100 M-Series Box PC background information. - 9 -... -
Page 10: Introduction
1.1 Introduction Thank you for choosing the Winmate® IHMH100 M-Series Box PC. This is versatile and cost-effective solution for your industrial needs. Intel® Core ™ i5-5200U 2.70 GHz processor onboard with fanless cooling system assures steady performance and silent functioning. -
Page 11: Package Contents
GENERAL INFORMATION 1.3 Package Contents Carefully remove the box and unpack your IHMH100 M-Series Box PC. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. -
Page 12: Physical Description
CHAPTER 1 GENERAL INFORMATION 1.4 Physical Description This section explains physical characteristics of the IHMH100 M-Series Box PC. 1.4.1 Connector Placement The module front panel consists of 2.5” SSD Bay, power/reset buttons, audio jacks, two RJ45 connectors, HDMI and VGA outputs, and four USB3.0 ports. -
Page 13: Dimensions
CHAPTER 1 GENERAL INFORMATION 1.4.2 Dimensions Figure below shows the dimensions of the Winmate® IHMH100 M-Series Box PC. Measurements shown in mm All Dimensions are ± 0.5 mm *Note: this is a simplified drawing and some components are not marked in detail. -
Page 14: Chapter 2: Hardware Installation
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION HARDWARE INSTALLATION This chapter provides information on how to use jumpers and connectors on the motherboard, and the IHMH100 M-Series Box PC hardware specifications and installation instruction. - 14 -... -
Page 15: Connector Pin Assignments
Line In Green Line Out 2.1.3 COM1 Serial Port Connector The IHMH100 Box PC uses D-SUB 9pin connector to connect serial interfaces. Serial COM1 settings can be configured for RS-232, RS-422 or RS-485 by jumpers located on the motherboard. Pin №... -
Page 16: Com2 Serial Port Connector
USB_D- USB_D+ STDA_SSRX- STDA_SSRX+ GND_DRAIN STDA_SSTX- STDA_SSTX+ 2.1.6 VGA Output Connector The IHMH100 has VGA connector (D-Sub 15pin Female). Use VGA cable to connect the display to the PC system. Pin № Signal Name Pin № Signal Name GREEN BLUE... -
Page 17: Hdmi Output Connector
TMDS_DATA1- TMDS_DATA0+ TMDS_DATA0- TMDS_CLOCK+ TMDS_CLOCK- DDC_CLOCK DDC_DATA Hot Plug Detect 2.1.8 LAN Connector The IHMH100 equipped with one RJ45 10/100/1000 Mbps Ethernet interface for connecting to the internet. Pin № Signal Name Pin № Signal Name TX1+ TX1- TX2+ TX2-... -
Page 18: Hardware Installation
This section explains how to replace HDD/SDD, install PCI Card/ RAM/ Internal SSD, and replace fuses on the IHMH100 M-Series Box PC. WARNING! Switch off the power and unplug the power cord. Each time the IHMH100 M-Series Box PC is serviced, users should be aware of this condition. 2.2.1 Hard Disk Replacement To remove the hard disk: 1. -
Page 19: Pci Card, Ram, Internal Ssd, Fuse Replacement
USER MANUAL CHAPTER 2 HARDWARE INSTALLATION 2.2.2 PCI Card, RAM, Internal SSD, Fuse Replacement To remove the PCI card, RAM, Internal SSD, Fuse: 1. Turn the device right-side up, with the back toward you. 2. Loosen two Philips M3x5 screws that secure side cover. 3. - Page 20 USER MANUAL CHAPTER 2 HARDWARE INSTALLATION Reverse this procedure to install the PCI card/ RAM/ Internal SSD/ Fuse. - 20 -...
-
Page 21: Chapter 3: Driver Installation
USER MANUAL CHAPTER 3 DRIVER INSTALLATION DRIVER INSTALLATION This chapter provides driver installation instructions. - 21 -... -
Page 22: Chipset Driver
USER MANUAL CHAPTER 3 DRIVER INSTALLATION CHAPTER 3: DRIVER INSTALLATION This chapter provides driver installation instructions. 3.1 Chipset Driver The Intel Chipset Drivers should be installed first before the software drivers enable Plug & Play INF support for Intel chipset components. Follow the instructions below to complete the installation. - Page 23 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 2 Click “Next” to start the installation. Step 3 Click Accept to agree with the license terms and continue the installation. - 23 -...
- Page 24 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 4 Check ReadMe File information, and then click Install to continue. Step 5 Click Restart Now to finish the installation and restart the computer. - 24 -...
-
Page 25: Graphics Driver
USER MANUAL CHAPTER 3 DRIVER INSTALLATION 3.2 Graphics Driver The Box PC with Intel mobile Core i5 Dual Core CPU and integrated graphic controller. You need to install the Graphic driver to enable the function. Intel Graphic supports versatile display options and 32-bit 3D graphics engine. Triple independent display, enhanced display modes for widescreen flat panels for extend, twin, and clone display mode. - Page 26 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 2 Click Next to continue. Step 3 Click Yes to agree with the license terms and continue the installation. - 26 -...
- Page 27 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 4 Check ReadMe File Information and then click Next to install the driver. Step 5 Wait while the following operations are performed. - 27 -...
- Page 28 USER MANUAL CHAPTER 3 DRIVER INSTALLATION And then click Next to continue. Step 6 Select “Yes, I want to restart this computer now”, and click Finish to complete the installation. - 28 -...
-
Page 29: Audio Driver
USER MANUAL CHAPTER 3 DRIVER INSTALLATION 3.3 Audio Driver The ALC886 series are high-performance 7.1+2 Channel High Definition Audio Codecs providing ten DAC channels that simultaneously support 7.1 sound playbacks, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. - Page 30 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 2 Wait while the InstallShield Wizard extracts the files needed to install Realtek HD Audio on your computer, and then click Next to continue the installation. Step 3 Click Next to continue the installation. - 30 -...
- Page 31 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 4 Select “Yes, I want to restart my computer now”, and then click Finish to complete the installation. - 31 -...
-
Page 32: Ethernet Driver
USER MANUAL CHAPTER 3 DRIVER INSTALLATION 3.4 Ethernet Driver The users must confirm which operating system is used on the motherboard before installing the Ethernet drivers. Follow the steps below to complete the installation of the Intel® I210IT Gigabit-LAN Controller + I218LM Gigabit-LAN drivers. You will quickly complete the installation. - Page 33 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 4 Click Yes to agree with the license terms and continue the installation. - 33 -...
- Page 34 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 5 Select the program features you want to install, and then click Next to continue. Step 6 Click Install to continue the installation. - 34 -...
- Page 35 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 7 Please wait while the install wizard installs Intel ® Network Connections, and then click Next to continue. Step 8 Click Finish to complete the installation. - 35 -...
-
Page 36: Fintek Com Port Driver
USER MANUAL CHAPTER 3 DRIVER INSTALLATION 3.5 Fintek COM Port Driver Step 1 If your system is WIN7, please first close UAC (refer to the following “Disabling User Account”) Control (UAC) in Windows 7” Step 2 Extract the Patch_0408.zip to a folder. Step 3 Double-click batch file (patch.bat) to install the driver. - Page 37 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 5 Restart the computer to complete driver installation. Type in this command from the Run menu: C:\Windows\System32\UserAccountControlSettings.exe or UAC To turn off UAC move the slider to the Never notify position, and then click OK. If you're prompted for an administrator password or confirmation, type the password or provide confirmation.
-
Page 38: Intel® Management Engine Software
USER MANUAL CHAPTER 3 DRIVER INSTALLATION 3.6 Intel® Management Engine Software This installation program installs the Intel® ME software components required for the platform on which you are installing, and installs only those components that match your platform’s capabilities. Step 1 Insert the driver CD and select the “Intel ME 9.0” folder and click “Setup.exe” Step 2 Click “Next”... - Page 39 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 3 Click “Yes” to agree with the License terms. Step 4 Choose “I accept the terms of the license agreement”, and click “Next” to continue. - 39 -...
- Page 40 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 5 Click “Finish” to complete the software installation. - 40 -...
-
Page 41: Usb 3.0 Driver Installation (Windows 7)
USER MANUAL CHAPTER 3 DRIVER INSTALLATION 3.7 USB 3.0 Driver Installation (Windows 7) NOTE: If the operating system of the device is Windows 10 IoT or Windows Embedded 8 Standard, please skip this installation. Step 1 Locate the hard drive directory where the driver files are stored with the browser or the explore feature of Windows*. - Page 42 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 2 Click “Next” to continue Step 3 Read the License Agreement and click “Yes” to proceed. - 42 -...
- Page 43 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 5 Review Readme File Information and click “Next” to proceed. Step 6 When the Setup Progress is complete click “Next” to proceed. - 43 -...
- Page 44 USER MANUAL CHAPTER 3 DRIVER INSTALLATION Step 7 Click “Yes, I want to restart this computer now” to finish and then restart your computer. - 44 -...
-
Page 45: Chapter 4: Ami Uefi Bios Setup
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP AMI UEFI BIOS SETUP BIOS Setup Utility is a program for configuration basic Input / Output system settings of the computer for optimum use. This chapter provides information on how to use BIOS setup, its functions and menu. -
Page 46: When And How To Use Bios Setup
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP CHAPTER 4: AMI UEFI BIOS SETUP BIOS Setup Utility is a program for configuration basic Input / Output system settings of the computer for optimum use. This chapter provides information on how to use BIOS setup, its functions and menu. -
Page 47: Bios Functions
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2 BIOS Functions BIOS Navigation Keys BIOS navigation keys for keyboard control are listed below. The following keys are enabled during Power-On Self-Test (POST): Function Enters the BIOS setup menu. Display the boot menu. Lists all bootable devices that are connected to the system. -
Page 48: Main Menu
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.1 Main Menu When you enter BIOS setup, the first menu that appears on the screen is the main menu.It contains the system information including BIOS version, processor RC version, system language, time, and date. Immediately after the [DEL] key is pressed during startup, the main BIOS setup menu appears. - Page 49 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP BIOS Setting Description Setting Option Effect System Language Displays the Adjustment of the Set the language in system language. language other language. [English] is set up by default. language in this device is English. System Date/Time This is current date Date and time...
-
Page 50: Advanced Menu
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2 Advanced Menu The advanced menu also uses to set configuration of the CPU and other system devices. There are sub menus on the left frame of the screen. IMPORTANT: Handle advanced BIOS settings page with caution. Any changes can affect the operation of your computer. - Page 51 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP BIOS Setting Description Setting Option Effect Configures CPU CPU Configuration Enter Opens submenu settings Configures Trusted Trusted Computing Enter Opens submenu Computing settings Configures ACPI ACPI Settings Enter Opens submenu Settings F81866 Super IO Configures F81866 Enter Opens submenu...
- Page 52 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.1 CPU Configuration CPU Configuration allows you to change CPU settings. Use key arrows to navigate through the menu. BIOS Setting Description Setting Option Effect Hyper-threading is a function in processors that Enables or Disables Hyper-threading Enable/ Disable...
- Page 53 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP (CPU) to separate attacks areas of a memory as storage of Increases the risk processor Disable to be infected by instructions or as viruses storage of data. Enables a CPU to act as if you have several independent Intel Virtualization...
- Page 54 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP down, to preserve power when not much is being computed. Adjusts the power and clock speed of processor cores as Enabled/ Enable or disable Turbo Mode needed to better Disabled this function match processor power to your needs.
- Page 55 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.2 Trusted Computing BIOS Setting Description Setting Option Effect Enable or disable Security Device Enable or disable BIOS support for Enabled/ Disabled Support this function. security device. Trusted Platform Enable or disable TPM State Module (TPM) Enabled/ Disabled...
- Page 56 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.3 ACPI Settings BIOS Setting Description Setting Option Effect Enable or disable Enable ACPI Auto Enable or disable BIOS ACPI Auto Enabled/ Disabled Configuration this function Configuration To enable or Enable or disable Enable Hibernation Enabled/ Disabled disable hibernation...
- Page 57 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.4 F81866 Super IO Configuration BIOS Setting Description Setting Option Effect Set Parameters of Serial Ports. User can Enable/Disable Enabled/ Disabled Serial Port 1,2 Enable or disable the serial port and Configuration Serial Port (COM) select optimal Default: Enable...
- Page 58 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.5 Hardware Monitor You can check PC Health Status parameters such as system temperature, fan speed etc. - 58 -...
- Page 59 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.6 RTC Wake Settings BIOS Setting Description Setting Option Effect Enable or disable Configure wake this function. Wake system from from full shutdown Enabled/ When enabled, the and boot mode Disabled system will wake (S5) system setting on full shutdown and boot mode.
- Page 60 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.7 SATA Configuration BIOS Setting Description Setting Option Effect Allows users to enable or disable Enable or disable SATA Controller(s) Enabled/ Disabled the SATA this function controller(s). Allows users to Work in AHCI mode SATA Mode select mode of AHCI...
- Page 61 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.2.8 CSM Configuration Compatability Support Module Configuration. BIOS Setting Description Setting Option Effect CSM Support The Compatibility Enabled/ Enable or disable Support Module Disabled the Compatibility (CSM) is a Support Module component of the UEFI firmware that provides legacy BIOS compatibility...
- Page 62 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP this function Option ROM Receiving ROM Force BIOS Set ROM messages Messages Messages Settings parameters Network Specifies which UEFI Only UEFI option Network option ROMs are booted ROM is booted Legacy Only Legacy option ROMs are booted 4.2.2.9 USB Configuration - 62 -...
- Page 63 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP BIOS Setting Description Setting Effect Option Auto Disable legacy support if no USB devices are connected Legacy USB User can enable or Disable Will keep USB devices Support disable USB port. available only for EFI applications.
-
Page 64: Chipset Menu
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.3 Chipset Menu BIOS Setting Description Setting Option Effect System Agent (SA) System Agent (SA) Enter Opens submenu Configuration Parameters PCH-IO PCH Parameters Enter Opens submenu Configuration - 64 -... - Page 65 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.3.1 System Agent (SA) Configuration BIOS Setting Description Setting Option Effect VT-d can help end users improve security and reliability of the systems and also Enables or disables VT-d Enable/Disable improve this function performance of I/O devices in virtualized...
- Page 66 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.3.1.1 Graphics Configuration BIOS Setting Description Setting Option Effect Graphics turbo IMON Set up the value of Graphics Turbo current values 14~31 Graphics turbo IMON Current supported 14~31 IMON current Set up internal Configures Internal Internal Graphics Auto...
- Page 67 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.3.2 PCI Configuration BIOS Setting Description Setting Option Effect PCI Express Configures PCI Express Enter Opens submenu Configuration parameters Configures USB USB Configuration Enter Opens submenu parameters Configures PCH LAN Enables or disables PCH LAN Controller Enable/Disable Controller parameters...
- Page 68 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.3.2.1 PCI Express Configuration BIOS Setting Description Setting Option Effect The control of Active State Power DMI Link ASPM Management on Enable/ Enables or disables Control both NB side and Disable this function SB side of the DMI Link.
- Page 69 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP PCI Express Root BIOS Setting Description Setting Option Effect PCI Express Root The control of PCI Enable/ Enables or disables Port 1 Express Root Port Disable this function Configures ASPM Enable/ Enables or disables ASPM Support Support Disable...
- Page 70 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP parameters Configures Setting up the Reserved Memory Reserved Memory Set the value value parameters Configures Prefetchable Prefetchable Setting up the Set the value Memory Memory value parameters Configures Setting up the Reserved IO Reserved IO Set the value value...
- Page 71 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP USB Configuration BIOS Setting Description Setting Option Effect Allows user to Enable/ Enables or disables USB Precondition enable or disable Disable this function USB Precondition Allows user to Smart Auto/ Enables or disables XHCI Mode enable or disable Enable/...
-
Page 72: Security Menu
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.4 Security Menu This section allows you to configure and improve your system and allows you to set up some system features according to your preference. BIOS Setting Description Setting Option Effect Administrator Displays whether or not Enter... - Page 73 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.4.1 Security Boot Menu BIOS Setting Description Setting Option Effect Secure Boot Secure Boot is a Enable/ Enables or disables feature designed to Disable this function prevent malicious software and unauthorized media from loading during the boot process.
- Page 74 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.4.1.1 Key Management - 74 -...
-
Page 75: Boot Menu
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.5 Boot Menu - 75 -... - Page 76 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP BIOS Setting Description Setting Option Effect Setup Prompt Allows user to Enter Set the prompt Timeout configure the timeout number of seconds to stay in BIOS setup prompt screen. Boot NumLock Enables or disables Remains On State NumLock feature...
- Page 77 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP - 77 -...
-
Page 78: Save & Exit
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.2.6 Save & Exit BIOS Setting Description Setting Option Effect Save Changes and This saves the <YES> Save changes Exit changes to the CMOS and exits the BIOS Setup program. Discard Changes This exits the BIOS <YES>... - Page 79 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP and Reset without saving any <NO> Return to the BIOS changes Setup Main Menu Save Changes Save changes done <YES> Saves the changes so far to any of the <NO> Return to the BIOS setup options.
-
Page 80: Using Recovery Wizard To Restore Computer
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.3 Using Recovery Wizard to Restore Computer Note: Before starting the recovery process, make sure to backup all user data. The data will be lost after the recovery process. To enable quick one-key recovery procedure: ... - Page 81 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP Wait the recovery process to complete. During the recovery process, a command prompt will show up to indicate the percent of recovery process complete. The system will restart automatically after recovery completed. - 81 -...
-
Page 82: How To Enable Watchdog
USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP 4.4 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Share. - Page 83 USER MANUAL CHAPTER 4 AMI UEFI BIOS SETUP Example: Every 10 min watchdog will monitor the system, in case any error occurs the system will restart automatically when the countdown time reaches 0. Every 9 min watchdog timer will be reset to 10 min. Settings Description The system automaticity restarts when this...
-
Page 84: Chapter 5: Technical Support
USER MANUAL CHAPTER 5 TECHNICAL SUPPORT TECHNICAL SUPPORT This chapter contains directory to technical support. -
Page 85: Software Developer Support
Winmate provides the following development kits (SDK) for IHMH100 M-Series Box PC: Item File Type Description Watchdog SDK & AP Watchdog SDK and AP You can download drivers and SDK and other from Winmate File Share or Winmate Download Center. Winmate Download Center: http://www.winmate.com/DownCenter/DownLoadCenter.asp?DownType=2906&OnlyCo ntent= Winmate File Share: https://winmate.box.com/v/Winmate-M-Series-Box-IHMH100... -
Page 86: Problem Report Form
USER MANUAL CHAPTER 5 TECHNICAL SUPPORT 5.2 Problem Report Form M-Series Box PC (Modular Design) Customer name: Company: Tel.: Fax: E-mail: Date: Product Serial Number: ____________________________________________________________________ Problem Description: Please describe the problem as clearly as possible. Detailed description of the occurred problem will allow us to find the best solution to solve the problem as soon as possible. -
Page 87: Appendix A: Pcie Card Dimensions
USER MANUAL APPENDIX A PCIE CARD DIMENSIONS PCIE CARD DIMENSIONS This section includes mechanical dimensions of Expansion PCIe Card Appendix - 87 -... - Page 88 USER MANUAL APPENDIX A PCIE CARD DIMENSIONS APPENDIX A: PCIE CARD DIMENSIONS This section includes mechanical dimensions of Expansion PCIe Card. Expansion PCIe Card Dimensions PCIe Card Height Limit - 88 -...
-
Page 89: Appendix B: Product Specifications
USER MANUAL APPENDIX B PRODUCT SPECIFICATIONS PRODUCT SPECIFICATIONS This section includes IBMH100 technical specifications. Appendix - 89 -... - Page 90 USER MANUAL APPENDIX B PRODUCT SPECIFICATIONS APPENDIX B: PRODUCT SPECIFICATIONS Hardware Specifications Model Name IHMH100 Intel® Core™ i5-5200U Processor, 3M Cache 2.2Ghz (Turbo to 2.7GHz) BIOS AMI UEFI BIOS Graphic Chipset Intel® HD graphics 5500 System Memory SODIMM DDR3L-1600 4GB, option up to 8GB (2 slots)
- Page 91 (Intel TXE) Driver ☑ ☒ ☒ USB 3.0 Driver ☑ ☑ ☑ Winmate Watchdog Driver Winmate provides the following development kits (SDK) for IHMH100 M-Series Box PC: Item File Type Description Watchdog SDK & AP Watchdog SDK and AP - 91 -...
- Page 92 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
