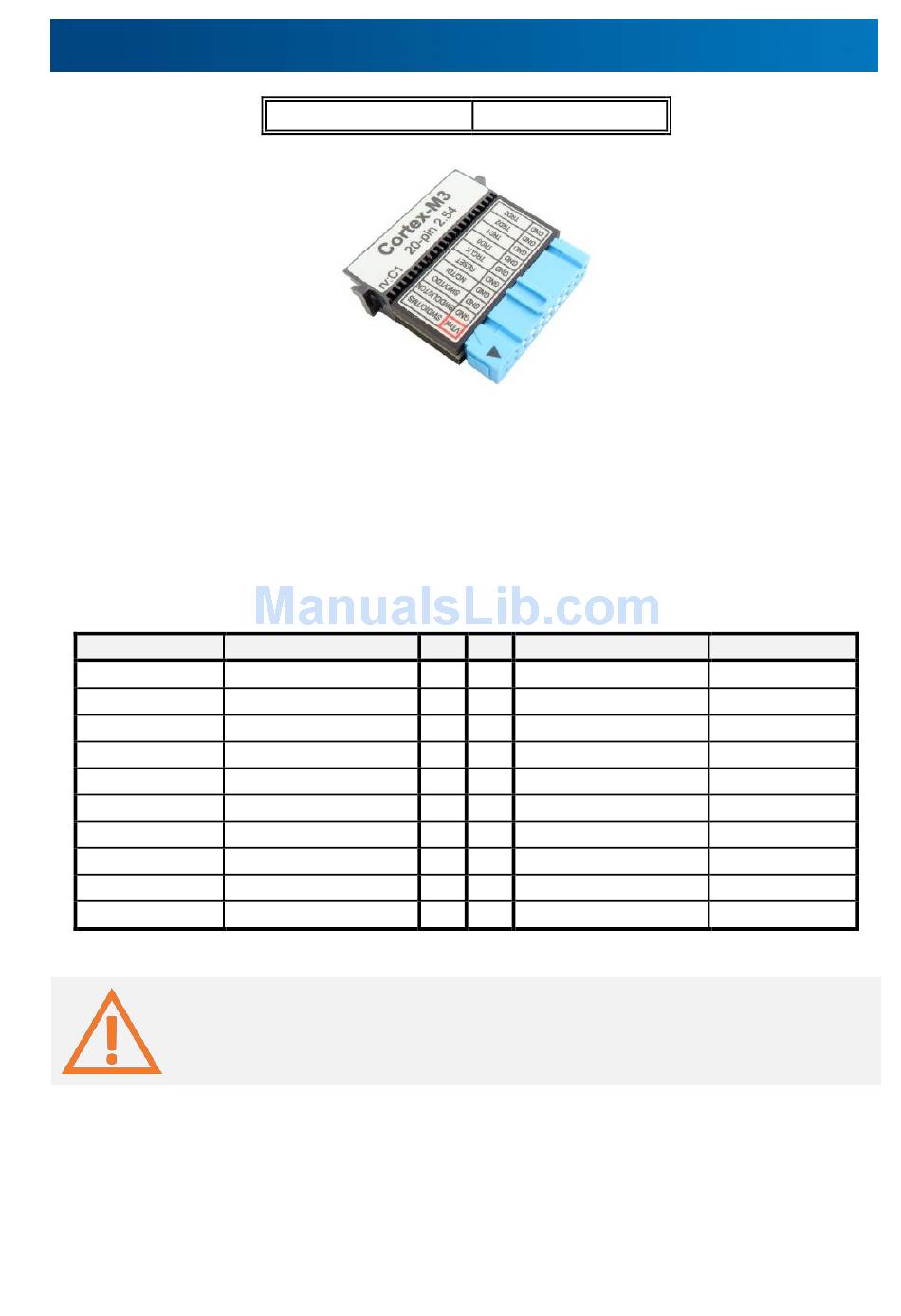

20-pin 2.54mm Cortex Debug Adapter

This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to the Cortex-M
based target. It's used to connect to the embedded target featuring a 20-pin 2.54 mm pitch
target debug connector with the ARM pinout.
The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to
the target debug connector on the other side. Refer to the BlueBox User Manual for more
details on connecting the debug adapter.
The following pinout is valid on the target side:
Signal direction
I
I
When connecting the BlueBox to the new embedded target for the first time, double
check that the debug adapter pinout matches with the target debug connector. Note
that a mismatch can result in a hardware failure.
The debug adapter features resettable fuses on pins 1, 2, 4, 6, 8 and 10. These protect debug
signals against overcurrent. These fuses cycle back to a conductive state after the excessive
current fades away.
The debug adapter connects to the target via a 20-pin 2.54 mm connector, for example
Yamaichi FAS-2001-2101-2-0BF. A target should feature a matching part, for example WÜRTH
ELEKTRONIK: 612 020 216 21.
Ordering code
Signal Pin
VTref 1
3
GND
5
GND
7
GND
GND 9
GND 11
13
GND
15
GND
17
GND
19
GND
20-pin Cortex-M pinout
4
IC50111-2
Pin Signal
2 SWDIO/TMS
4
SWCLK/TCK
6
SWO/TDO
8
NC/TDI
10 nSRST
12 TRCLK
14
TRD0
16
TRD1
18
TRD2
20
TRD3
Signal direction
I/O
O
I
O
I/O
I
I
I
I
I
