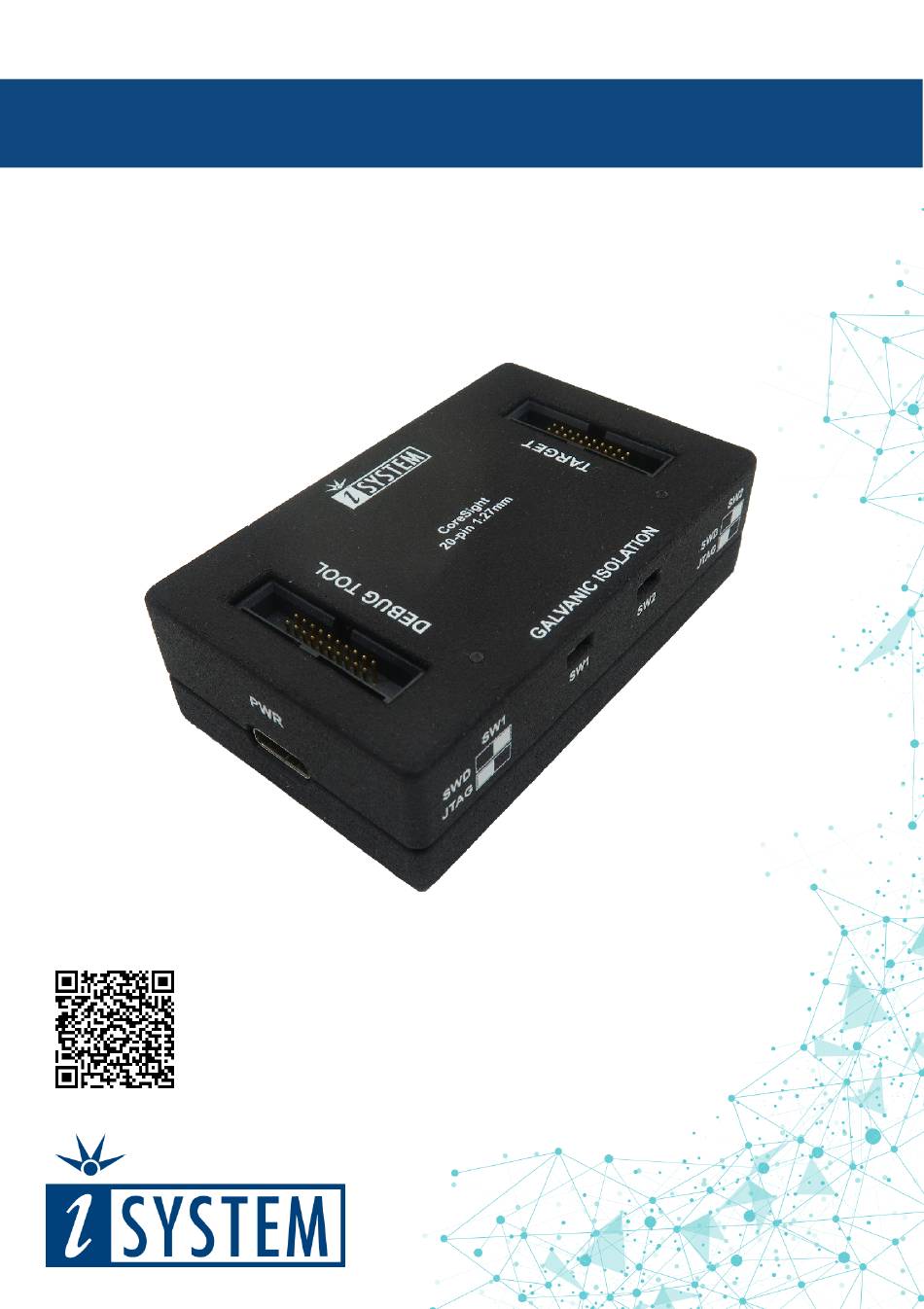

- Page 1 Coresight Galvanic Isolation Adapter V1.1 User Manual...
- Page 2 This document and all documents accompanying it are copyrighted by iSYSTEM AG and all rights are reserved. Duplication of these documents is allowed for personal use. In all other cases, written consent from iSYSTEM is required. iSYSTEM AG. All rights reserved.
-
Page 3: Table Of Contents
Contents CoreSight 20-pin 1.27mm Galvanic Isolation Adapter Package content ..........................5 Specifications ..........................6 Device overview ..........................7 Connecting procedure ......................... 10 Accessories ........................... 11... -
Page 4: Coresight 20-Pin 1.27Mm Galvanic Isolation Adapter
Galvanic isolation is also used for safety, preventing accidental current from reaching ground through a person's body. iSYSTEM Galvanic Isolation Adapters provide a basic isolation that withstands high voltages. To prevent injury to personnel when dealing with potentially hazardous voltages it is mandatory to have a second protection measure in place, in case the first insulation barrier fails. -
Page 5: Package Content
Package content CoreSight 20-pin 1.27mm Galvanic Isolation Adapter is delivered with the following components: CoreSight 20-pin 1.27mm USB-C Power supply Ribbon cable Galvanic Isolation Adapter Ordering code: Ordering code: Ordering code: IEA-GI-CORESIGHT IT5V2AUSBC-PS IA20PIN20_10PIN-CS User Manual... -
Page 6: Specifications
Specifications GENERAL Operating temperature 10°C to 40°C Storage temperature -10°C to 60°C MECHANICAL Size 65 x 40 x 19 mm Weight approx. 55 g ELECTRICAL Isolation Type Basic Isolation Ratings 1kVrms VIORM 560Vpeak DEBUG TOOL SIDE Supply Voltage 5V (via attached power supply) Max Supply Current 50mA TARGET SIDE... -
Page 7: Device Overview
The side face of the Galvanic Isolation Adapter features: D – USB-C Power supply socket (PWR). Use only original iSYSTEM USB-C Power supply for powering and connecting with the GI Adapter, otherwise the primary functionality of the GI Adapter would be counteracted. - Page 8 Debug interface JTAG...
- Page 9 Pinout 10-pin 1.27mm CoreSight Debug Adapter The following pinout is valid on the target side: Signal Signal Signal Signal Signal Signal Direction Description Description Direction Reference Vref SWDIO/TMS JTAG Voltage Ground SWCLK/TCK JTAG Ground SWO/TDO JTAG NC/TDI Connected /J Connected Ground nRESET Reset...
-
Page 10: Connecting Procedure
6. Connect 1:1 Ribbon cable to the embedded target. 7. Connect BlueBox, GI Adapter and Target to the power supply. Use only original iSYSTEM USB-C Power supply for powering and connecting with the GI Adapter, otherwise the primary functionality of the GI Adapter would be counteracted. -
Page 11: Accessories
Ordering Code Description IC57000 iC5700 BlueBox IC50118-2 20-pin 1.27mm CoreSight Debug Adapter Please refer to the iC5700 BlueBox User Manual for all current iC5700 Accessories. Find more information on www.isystem.com or contact sales@isystem.com. To reach for technical support please visit www.isystem.com/support. - Page 12 Whilst iSYSTEM reserves the right to make changes to its products and/or the specifications detailed herein, it does not make any representations or commitments to update this document.
