- Page 1 NXP S32K148 Emulation Adapter V1.3 User Manual December 2022...
- Page 2 This document and all documents accompanying it are copyrighted by iSYSTEM AG and all rights are reserved. Duplication of these documents is allowed for personal use. In all other cases, written consent from iSYSTEM is required. iSYSTEM AG. All rights reserved.
-
Page 3: Table Of Contents
Contents NXP S32K148 Package content ............................6 Options ............................... 7 Target adaptation ..........................................7 Measurement board ........................................8 Operation ..............................9 How to connect ............................................ 9 Configuration ............................................9 Connectors ............................................13 Standalone operation ........................................13 Mechanical information ........................15 Emulation Adapter ......................................... -
Page 4: Nxp S32K148

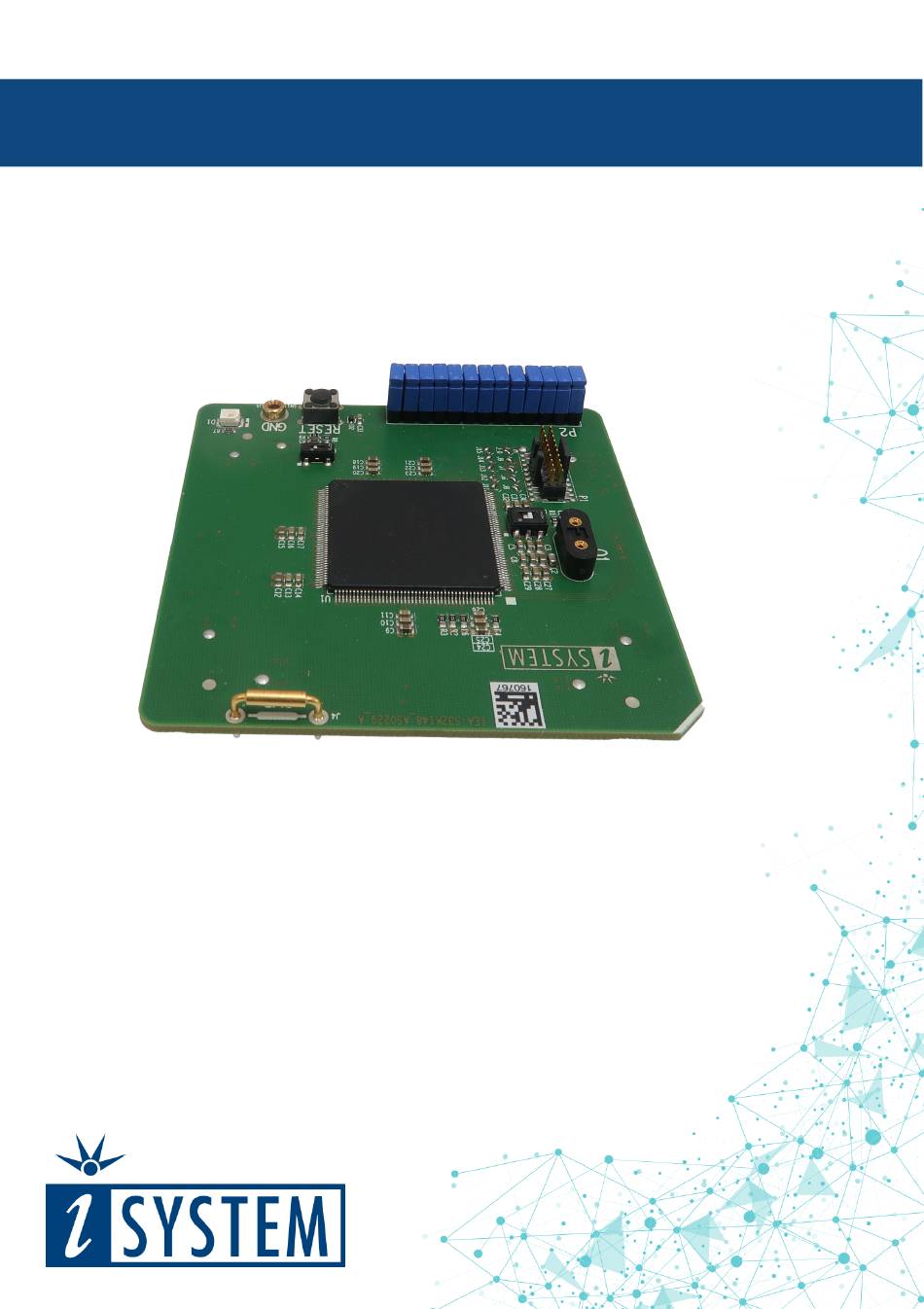

NXP S32K148 Introduction to iSYSTEM Emulation Adapter (Video Tutorial) NXP S32K148 Emulation Adapter is based on the 176-pin S32K148 superset device and provides full trace capability for the: · 48-pin · 64-pin · 100-pin · 144-pin device, where trace port is not available or lacks the full trace capability. - Page 5 Debug and Trace solutions Trace provides non-intrusive and deep insight in the embedded application without influencing real-time behavior. It can be used to debug the most difficult and complex code defects and offers a complete trace history capture of the program execution.
-
Page 6: Package Content
Package content NXP S32K148 Emulation Adapter is delivered with all the components required for a standalone operation. Target adaptation parts for the Target board adaptation must be ordered separately. Power supply package NXP S32K148 Emulation Adapter Power converter Power adapter... -
Page 7: Options
Options Target adaptation The Emulation Adapter adaptation to a specific target microcontroller pincount and package is done via a Conversion board and a Solder part. Conversion boards connect between the Emulation Adapter and the matching Solder part, which is being soldered on the embedded target side. -
Page 8: Measurement Board
Measurement board The Measurement board is an optional extension to the Emulation Adapter. Because embedded targets often do not have access to all the MCU pins / connected signals to connect with measurement equipment (oscilloscope, logic analyzer), its use provides easy access to all MCU pins respectively. -
Page 9: Operation
Operation How to connect? How to connect Emulation Adapter (Video Tutorial) How to connect iSYSTEM Hardware (Video Tutorial) Configuration DIP1: Target reset configuration DIP switch DIP1 connects the Emulation Adapter reset line and the user target board reset line and is on (position next to the white dot) by default. The Emulation Adapter also features a Reset push button (SW1). - Page 10 Note that PTD16 can operate either as TRACE_CLK or TRACE_D2. Use of alternate ports decrease the performance of the trace interface since output drivers on these ports are slower. It's recommended to contact iSYSTEM for assistance if the default trace configuration has to be changed.
- Page 11 winIDEA configuration Configure winIDEA accordingly depending on which ports are connected to the physical trace interface. Open Hardware menu / CPU Options / SoC Advanced page. Depending on the user target board configuration, set: · TRACE CLOCK Port to PTC2 (alternative PTD16) ·...
- Page 12 If a different power source is used (e.g., a Standalone operation), remove all jumpers and apply 3V3 or 5V to: · VDD (pin 2), · VREFH (pin 4), Enclosed Power supply package (Power converter and Power adapter) simply plugs into the P2 header row, providing the necessary power supply for Emulation Adapter operation.
-
Page 13: Connectors
Conversion board, through which the Emulation Adapter adapts to different pin count packages. Standalone operation NXP S32K148 Emulation Adapter is delivered with all components required for a Standalone operation. Power supply Use the enclosed IEA-PS Emulation Adapter Power converter and adapter. - Page 14 · The target board doesn’t provide an accurate supply voltage. · The target board doesn’t provide sufficient current for the Emulation Adapter operation. The Power converter can supply either 3.3 V or 5 V. The array of jumpers J0–J9 selects 3.3 V or 5 V voltage on the P3 connector, which connects to the Emulation Adapter.
-
Page 15: Mechanical Information
Mechanical information Emulation Adapter Side view of the Emulation adapter complete setup - QFP Fixed Adaptation Top view of the Emulation Adapter Top view of the Conversion board Unit (mm) Ordering code IEA-S32K148 32.6 36.4 47.5 IEA-S32K148-xxxxx Solder parts Top view of the Solder part Solder part Solder pad view In the case of soldering the Solder part manually, it’s highly recommended to prolong the solder pad E on the outer side (e.g., for 1.5–2 mm) during the PCB design. - Page 16 Recommended PCB footprint dimensions: Unit (mm) Ordering code IA48TQ-SOLDER 1.505 13.0 13.0 IA64ATQ-SOLDER 1.505 15.0 15.0 16.0 IA100TQ-SOLDER 16.5 1.125 17.0 17.0 2.15 19.55 19.55 IA144TQ-SOLDER 1.125 23.0 23.0 2.15 25.05 25.05...
-
Page 17: Assembly
1. Solder the Solder part [B] on the embedded target PCB [A] to get a BA setup. Use the Surface Mount Technology (SMT) to solder the Solder parts to the user target board instead of the original microcontroller. iSYSTEM provides this soldering service on request too. - Page 18 Slot screw The Slot screw (30mm) can be used to fix the Conversion board (Fixed Adaptation) to the Solder part. This way the setup becomes mechanically more robust. Screw the Conversion board to the Solder part first, before the Emulation Adapter is attached on top and watch out not to break out the Solder part, e.g., if you accidentally hit the Emulation Adapter from the side.
-
Page 19: Accessories
Accessories To ease the development process, we recommend using the following iSYSTEM hardware tools with the Emulation Adapter. Ordering Code Description IC5700 iC5700 BlueBox On-Chip Analyzer IC5000 iC5000 BlueBox On-Chip Analyzer IC57031 IOM6 Hub (3 x FNet & FBridge) IC57040... -
Page 20: Schematics
To view the Emulation Adapter schematics, click on the link below. Schematics To view the Emulation Adapter schematics: · Visit isystem.com/user-manuals, find your Emulation Adapter User Manual and go to the Schematics chapter, or · Scan the QR code below. -
Page 21: User Notes
User Notes This page is intentionally left blank. - Page 22 This page is intentionally left blank.
- Page 23 This page is intentionally left blank.
- Page 24 Whilst iSYSTEM reserves the right to make changes to its products and/or the specifications detailed herein, it does not make any representations or commitments to update this document.
