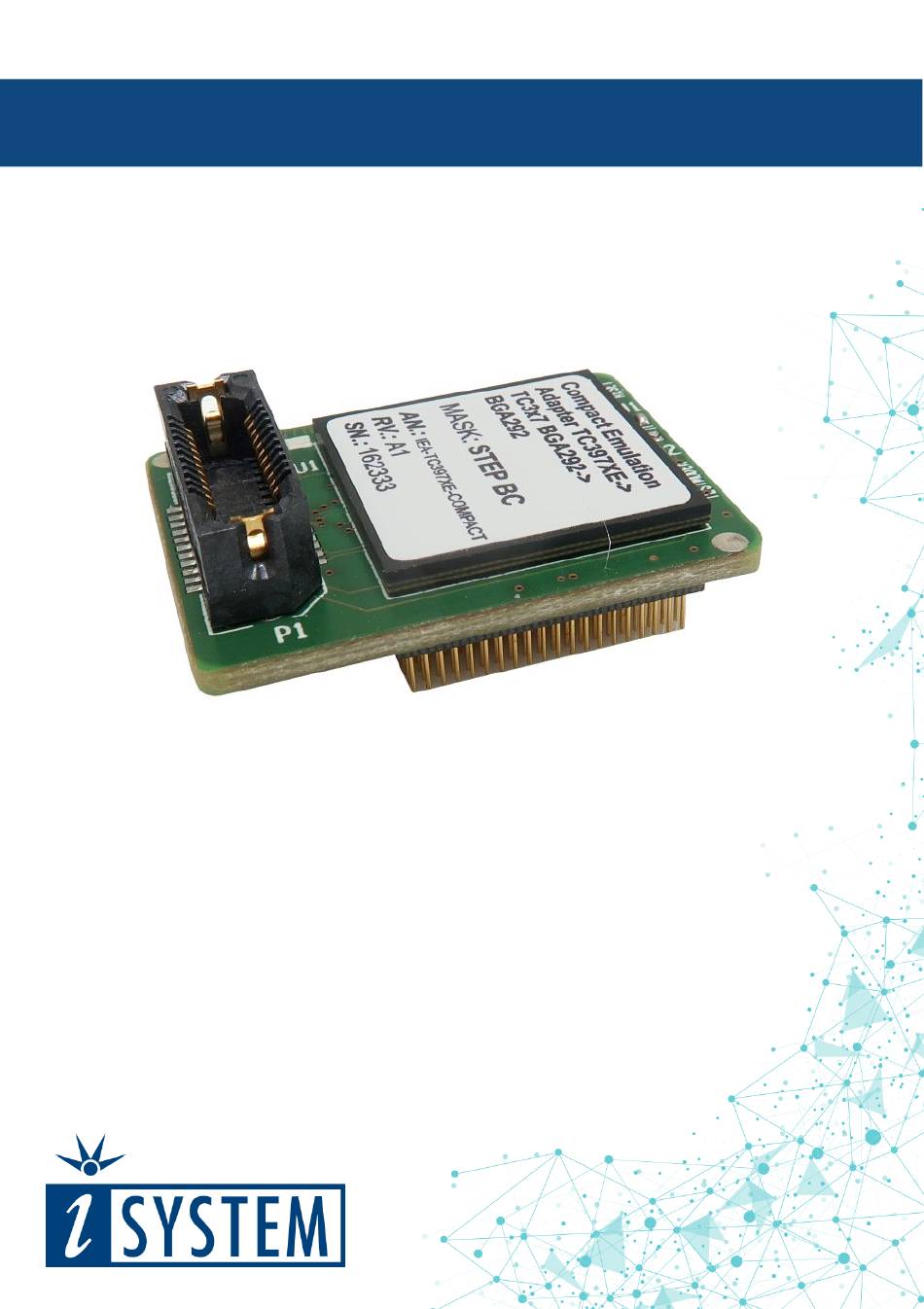

- Page 1 Infineon TC397XE Compact Emulation Adapter V1.0 User Manual...
- Page 2 This document and all documents accompanying it are copyrighted by iSYSTEM AG and all rights are reserved. Duplication of these documents is allowed for personal use. In all other cases, written consent from iSYSTEM is required. iSYSTEM AG. All rights reserved.
-
Page 3: Table Of Contents
Contents Infineon TC397XE Compact Package content ............................5 Operation ..............................6 Configuration ............................................7 Mechanical information ......................... 8 Accessories ............................. 10 Schematics ............................. 11... -
Page 4: Infineon Tc397Xe Compact
Infineon TC397XE Compact Infineon TC397XE Compact Emulation Adapter has been custom designed to achieve a minimum vertical size of the LQFP292 adaptation. It provides full trace capabilities for the TC397Xx, TC387QP, TC3E7Qx devices where the trace port is not available or lacks the full trace capability. -
Page 5: Package Content
Package content Infineon TC397XE Compact Emulation Adapter is delivered with all components required for a standalone operation. Adaptation package for a specific Target board must be ordered separately. Infineon TC397XE Compact Emulation Adapter User Manual with Infineon Microcontroller TC397XE Ordering code:... -
Page 6: Operation
Device overview The Emulation Adapter offers the following adaption setups: · IEA-TC397XE Compact Emulation Adapter Top / Bottom side of the Emulation Adapter How to connect Emulation Adapter (Video Tutorial) How to connect iSYSTEM Hardware (Video Tutorial) Adaptation setups BGA Adaptation... -
Page 7: Configuration
Configuration J1: Target reset configuration Solder jumper J1 connects the Emulation Adapter (EA) reset line and the user target board reset line and is soldered by default. J2: TP20_2/TESTMODEn configuration TP20_2/TESTMODEn microcontroller pin is latched at power on reset release to enter test mode. -
Page 8: Mechanical Information
Mechanical information BGA292 Adaptation BGA Adaptation: The Target can have electronic components placed around the Microcontroller within the Emulation Adapter (EA) "ground floor", which impede connecting the EA to the Target. In such cases the distance of the EA from the Target can be optionally increased in steps of 3.25 mm by inserting the optional Extender. - Page 9 3. Connect the Emulation Adapter to the Solder part respectively to the Extender when it's being used. 4. Connect iSYSTEM Debug Adapter or Active Probe to the connector on the Emulation Adapter. Gently press the Emulation Adapter with your thumb to the Target board and keep it stable.
-
Page 10: Accessories
Accessories To ease the development process, we recommend using the following iSYSTEM hardware tools with the Infineon TC397XE Compact Emulation Adapter. Ordering Code Description IC5700 iC5700 BlueBox On-Chip Analyzer IC57031 IOM6 Hub (3 x FNet & FBridge) IC57040 IOM6 CAN/LIN... -
Page 11: Schematics
To view the Emulation Adapter schematics click on the link below: Schematics To view the Emulation Adapter schematics: · Visit isystem.com/user-manuals, find your Emulation Adapter User Manual and go to the Schematics chapter or · Scan the below QR code:... - Page 12 Whilst iSYSTEM reserves the right to make changes to its products and/or the specifications detailed herein, it does not make any representations or commitments to update this document.
