38-pin Mictor ARM ETM 16-bit D. Adapter

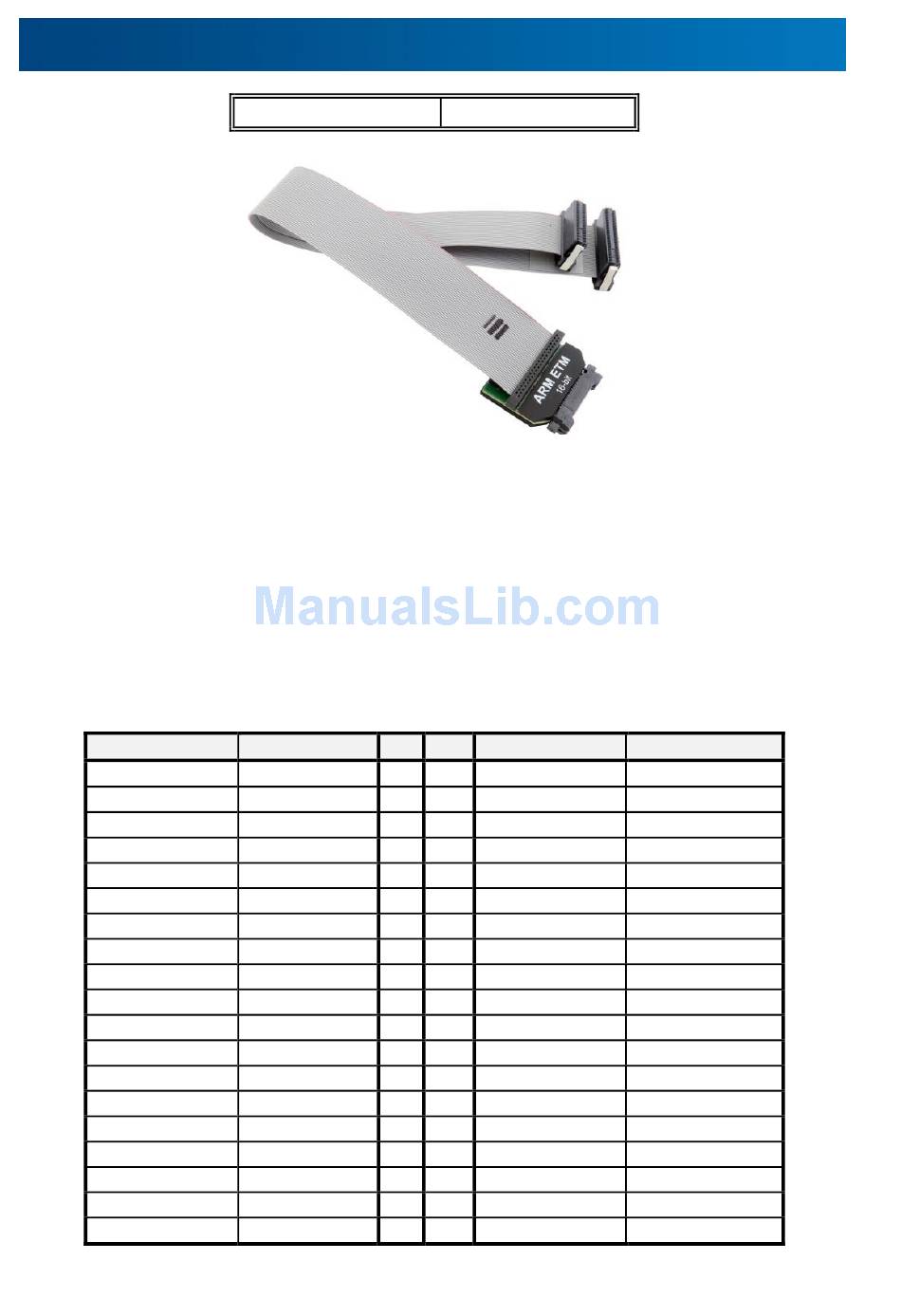

This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to the Cortex-A, the
Cortex-R, the ARM7 and the ARM9 based target. It's used to connect to the embedded target
featuring a 38-pin Mictor target debug connector with the ARM ETMv1 or the ARM ETMv3
pinout.
The debug adapter connects to the BlueBox through the two ribbon cables and to the target
debug connector on the other side. Refer to the BlueBox User Manual for more details on
connecting the debug adapter.
The same debug adapter covers the ARM ETMv1 and the ARM ETMv3 pinout. The following
pinout is valid on the target side for the ARM ETMv1:
Signal direction
O
I
O
O
O
O
I
I
I
I
I
I
I
I
Ordering code
Signal Pin
NC 1
NC 3
NC 5
NC 7
nSRST 9
TDO 11
NC 13
TCK 15
TMS 17
TDI 19
nTRST 21
TRACEPKT[15] 23
TRACEPKT[14] 25
TRACEPKT[13] 27
TRACEPKT[12] 29
TRACEPKT[11] 31
TRACEPKT[10] 33
TRACEPKT[9] 35
TRACEPKT[8] 37
ETMv1 target pinout
IC50115
Pin Signal
2 NC
4 NC
6 TRACECLK
8 NC
10 NC
12 VTref
14 NC
16 TRACEPKT[7]
18 TRACEPKT[6]
20 TRACEPKT[5]
22 TRACEPKT[4]
24 TRACEPKT[3]
26 TRACEPKT[2]
28 TRACEPKT[1]
30 TRACEPKT[0]
32 TRACESYNC
34 PIPESTAT[2]
36 PIPESTAT[1]
38 PIPESTAT[0]
7
Signal direction
I
I
I
I
I
I
I
I
I
I
I
I
I
I
