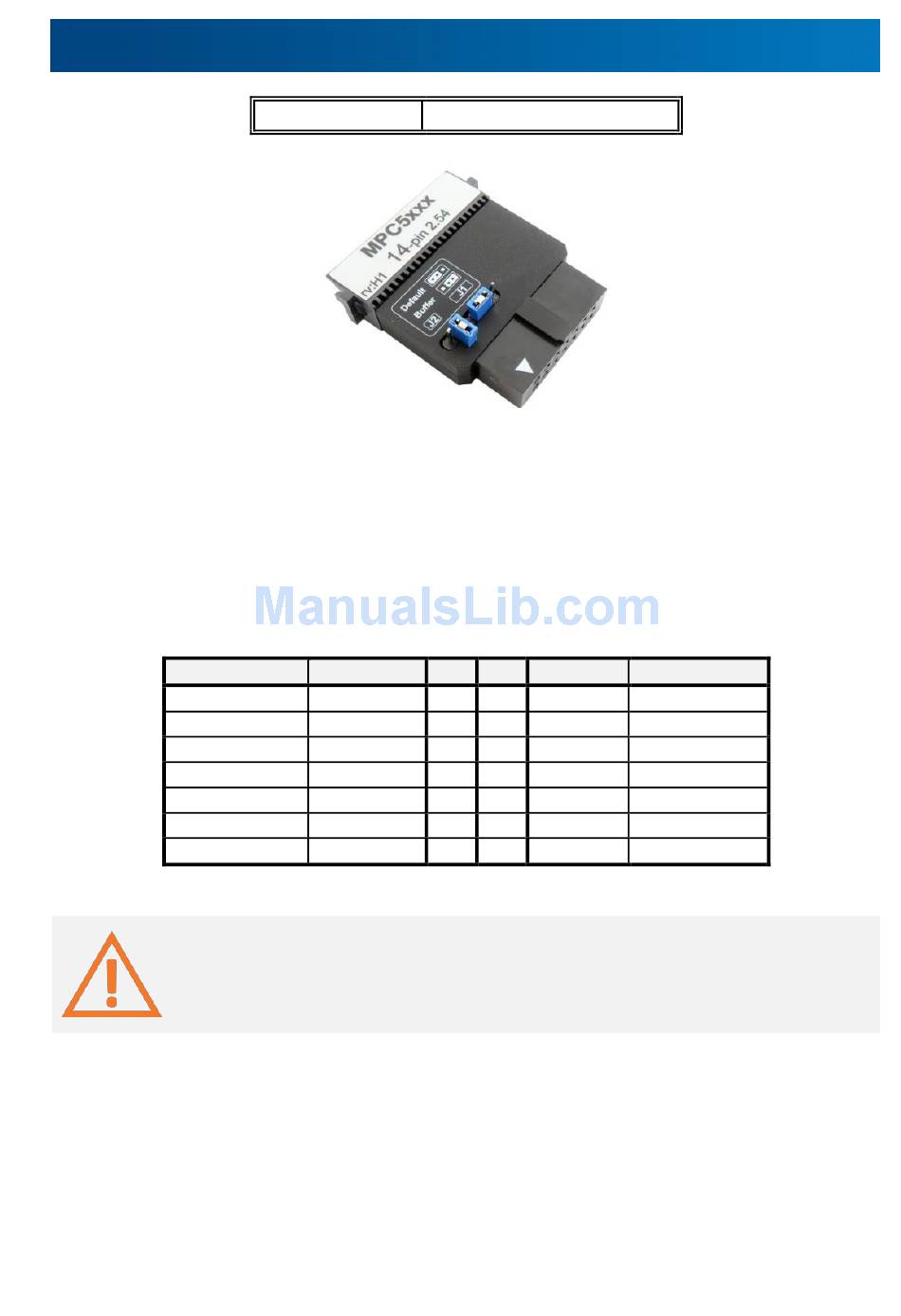

14-pin 2.54mm MPC5xxx Debug Adapter

This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to the Cortex-M
based target. It's used to connect to the embedded target featuring a 14-pin 2.54mm pitch
target debug connector with MPC5xxx/SPC5 pinout.
The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to
the target debug connector on the other side. Refer to the BlueBox User Manual for more
details on connecting the debug adapter.
The following pinout is valid on the target side:
Signal direction
When connecting the BlueBox to the new embedded target for the first time, double
check that the debug adapter pinout matches with the target debug connector. Note
that a mismatch can result in a hardware failure.
14-pin 2.54mm MPC5xxx Debug Adapter features resettable fuses on all connected pins. These
protect debug signals against overcurrent and cycle back to a conductive state after the
excessive current fades away.
Mandatory pins on the microcontroller side are the GND, VDD, nSRST, TMS, TDI, TDO and TCK.
Ordering code
Signal
O TDI
I TDO
O TCK
O EVTIN
I/O nSRST
I VTref
NC
14-pin MPC5xxx & SPC5 target pinout
IC50150
Pin Pin Signal
1 2 GND
3 4 GND
5 6 GND
7 8 PORST*
9 10 TMS
11 12 GND
13 14 JCOMP
