If the 20-pin 1.27 mm pitch ribbon cable gets damaged, it can be ordered as a spare part under
the ordering code IA20PIN20PIN127.

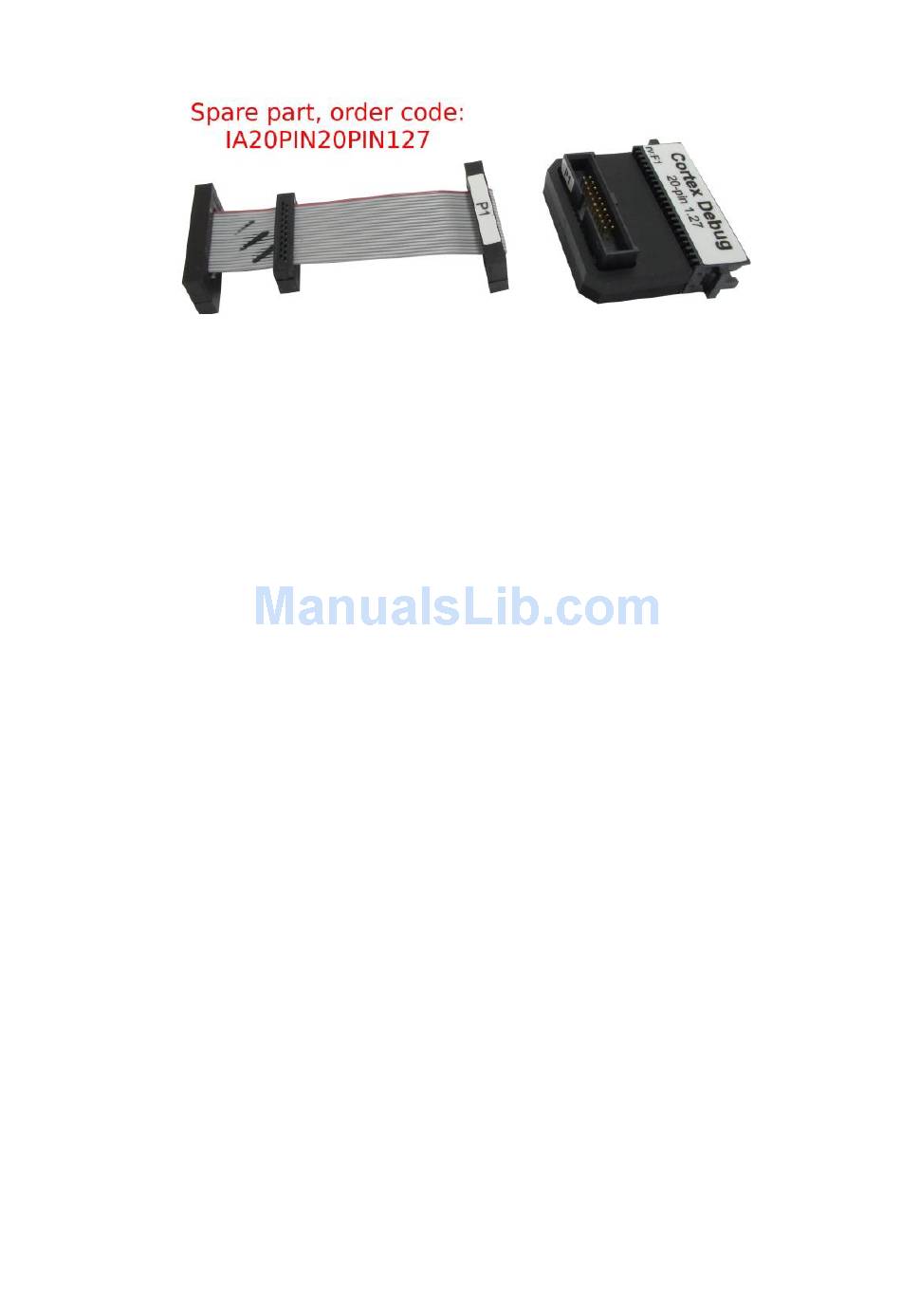

IC50118-2 with detached 20-pin 1.27mm pitch ribbon cable
Optionally, a longer ribbon cable can be ordered under the ordering code IA20PIN20PIN127-
CUST. A cable length must be specified at the order. Note that the optional length should be
reasonable (e.g. 10 cm) since the quality of electrical signals degrades with prolonging the
cable. iSYSTEM gives no assurance for BlueBox operation with this cable. The cable is meant to
be used only for boundary cases where BlueBox cannot be connected to the target hardware
through the standard debug adapter, for example due to the physical obstacles of the target
system. In such cases, operating the BlueBox at lower JTAG scan speeds and not using the trace
functionality at all, might be still an acceptable compromise. It's up to the user to thoroughly
test and qualify the BlueBox operation using custom length ribbon cable and to determine
TM
working winIDEA settings for his system.
