Infineon TC377TE Emulation Adapter
V1.8
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Infineon TC377TE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iSystem Infineon TC377TE

Summary of Contents for iSystem Infineon TC377TE

  • Page 1 Infineon TC377TE Emulation Adapter V1.8 User Manual...
  • Page 2 This document and all documents accompanying it are copyrighted by iSYSTEM AG and all rights are reserved. Duplication of these documents is allowed for personal use. In all other cases, written consent from iSYSTEM is required. iSYSTEM AG. All rights reserved.

  • Page 3: Table Of Contents

    Contents Infineon TC377TE Emulation Adapter Package content ............................5 Adaptation packages ........................................6 Operation ..............................12 Jumper configuration ........................................16 Power supply package ........................................ 21 Standalone operation ........................................22 IEA-TC377TE Adaptations ......................................23 Mechanical information ........................25 NQ Pack Assembly .......................................... 27 HQ Pack Assembly ..........................................

  • Page 4: Infineon Tc377Te Emulation Adapter

    Furthermore, IOM6 accessories enable the synchronous capture of analog and digital signals in parallel to trace information. Hardware tools coupled with iSYSTEM winIDEA IDE enable reliable recording of program flow and data trace. Integrated measurement and visualization tool Analyzer provides graphical presentation of execution time analysis and much more.

  • Page 5: Package Content

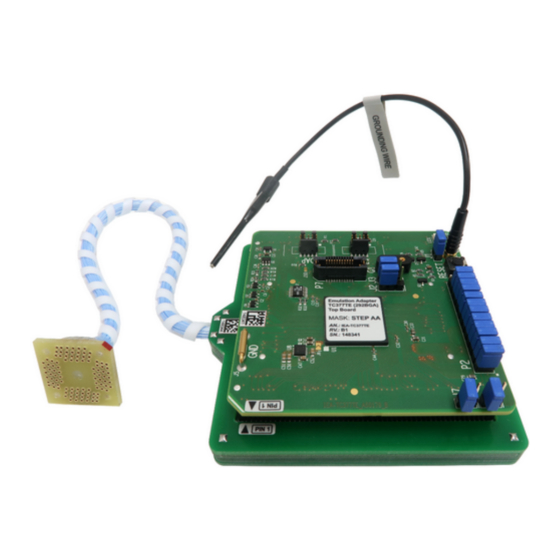

    The IEA-TC377TE Emulation Adapter hosts Infineon emulation device TC377TE. The emulation device will be listed on our quotation as IEA-TC377TE-MC and must be ordered in addition to the other components. iSYSTEM solders this device and ships the complete adapter. Infineon TC377TE Emulation Adapter Package...

  • Page 6: Adaptation Packages

    Adaptation packages Socket cover HQ Pack is used together with the production device and the Solder part NQ Pack. For assembly instructions please refer to HQ Pack Assembly. QFP80 Adaptation - 0.4 pitch (TC332) 80-pin 80-pin 80-pin Connecting part Socket cover "flex”...
  • Page 7 QFP144 Adaptation - 0.4 pitch (TC324, TC334) 144-pin 144-pin 144-pin Connecting part Socket cover "flex” Conversion board Solder part (optional) Ordering code: Ordering code: Ordering code: Ordering code: IEA-TC377TE-TC334W IAYQPACK144SE IANQPACK144SE IAHQPACK144SE QFP144 Adaptation - 0.4 pitch (TC364) 144-pin 144-pin 144-pin Connecting part Socket cover...
  • Page 8 QFP144 Adaptation - 0.5 pitch (TC364) 144-pin 144-pin "flex” Conversion board Solder part Ordering code: Ordering code: IEA-TC377TE-TC364W5 IA144TQ-SOLDER QFP144 Adaptation - 0.5 pitch (TC364) 144-pin 144-pin "fixed" Conversion board Solder part Ordering code: Ordering code: IEA-TC377TE-TC364F5 IA144TQ-SOLDER...
  • Page 9 QFP176 Adaptation - 0.5 pitch (TC365) 176-pin 176-pin "flex” Conversion board Solder part Ordering code: Ordering code: IEA-TC377TE-TC365W5 IA176TQ-SOLDER QFP176 Adaptation - 0.5 pitch (TC365) 176-pin 176-pin "fixed" Conversion board Solder part Ordering code: Ordering code: IEA-TC377TE-TC365F5 IA176TQ-SOLDER QFP176 Adaptation - 0.5 pitch (TC375) 176-pin 176-pin "flex”...
  • Page 10 QFP176 Adaptation - 0.5 pitch (TC375) 176-pin 176-pin "fixed" Conversion board Solder part Ordering code: Ordering code: IEA-TC377TE-TC375F5 IA176TQ-SOLDER...
  • Page 11 BGA292 Adaptation (TC327LP, TC337LP, TC367DP, TC377TP) Conversion board Extender (optional) Solder part Ordering code: Ordering code: Ordering code: IEA-TC377TE-TC377 IA292LFBGA-EXTENDER IA292LFBGA-SOLDER Target can have too high electronic components placed around the microcontroller within the Emulation Adapter (EA) ground floor, which impede connecting the EA to the Target.

  • Page 12: Operation

    Operation Device overview A setup in conjunction with the User target board and Wire adapter contains: iSYSTEM BlueBox connecting to the Power supply Emulation Adapter IEA-PS IT9V-PS Emulation Adapter IEA-TC377TE IEA-TC377TE-MC must be ordered along Measurement Board (optional) IAMTC377TE Conversion board...
  • Page 13 A setup in conjunction with the User target board and "fixed" Conversion board contains: iSYSTEM BlueBox connecting to the Power supply Emulation Adapter IEA-PS IT9V-PS Emulation Adapter IEA-TC377TE IEA-TC377TE-MC must be ordered along Measurement Board (optional) IAMTC377TE Conversion board IEA-TC377TE-TC364F5...
  • Page 14 A setup in conjunction with the BGA292 Adaptation board solution and the User target board contains: iSYSTEM BlueBox connecting to the Power supply Emulation Adapter IEA-PS IT9V-PS Emulation Adapter IEA-TC377TE IEA-TC377TE-MC must be ordered along. Measurement Board (optional) IAMTC377TE Conversion board...
  • Page 15 Power supply package, which is delivered with the Emulation Adapter, is required when: The Emulation Adapter is used as a standalone device · User target doesn’t provide accurate supply voltage · User target doesn’t provide sufficient current for the Emulation Adapter operation. ·...

  • Page 16: Jumper Configuration

    Jumper configuration J1: Target reset configuration Jumper J1 connects the Emulation Adapter reset line and the user target board reset line and is populated by default. Emulation Adapter also features a Reset push button (SW1). If having problems establishing the initial debug session with the Emulation Adapter, remove J1 and try again.
  • Page 17 Crystal socket Q1 schematics below: J4 & J5: GND connection points In case a good ground connection is required, connection points bridge J4 and pin J5 provide easy access to the emulation adapter GND potential. J6 & J7: VFLEX & VAREF VFLEX - If the target’s VFLEX pin isn’t exposed, set the jumper to the position J6 to connect VEXT from the target to power VFLEX.
  • Page 18 Reset 10-pin Infineon DAP pinout Signal Direction is described from the BlueBox perspective. iSYSTEM BlueBox solution supporting Infineon DAP debug interface connects to the P1 connector. P2: Power supply configuration Emulation Adapter Power supply is configured via the unshrouded 26-pin 2.54 mm header (P2).
  • Page 19 DAP clock Optional 2nd Ground DAPE2 Data pin Not Connected DAPEN/DAP3 Output Ground Not Connected 10-pin DAPE pinout Signal Direction is described from the BlueBox perspective. iSYSTEM BlueBox supporting Infineon DAPE debug and trace interface connects to the P8 connector.
  • Page 20 Blue color marks the trace signals. Pin 18: TGO (AGBT Trigger out) is connected to the pin TP32.6. Before Revision C1 pin 18 was NC (Not Connected). iSYSTEM BlueBox solution supporting AGBT (Aurora GigaBit Trace) interface connects to the P7 connector.

  • Page 21: Power Supply Package

    Power supply package The IEA-PS Emulation Adapter Power converter can supply either 3.3V or 5V. Array of jumpers J0 – J9 on the Power converter IEA-PS select 3.3V or 5V voltage on the U6 connector, which connects to the Emulation Adapter. Signal Signal U6 connector and J0-J9 jumper correlation table...

  • Page 22: Standalone Operation

    Standalone operation Infineon TC377TE Emulation Adapter is delivered with all components required for a Standalone operation: Power supply Use enclosed IEA-PS Emulation Adapter Power converter and adapter. Clock source If user target’s crystal circuit microcontroller oscillator (if available) is not an adequate clock source, insert appropriate crystal into the Q1 socket, replace the default 10pF C7 and C8 capacitors when necessary and place jumpers J2 and J3 in 2-3 position.

  • Page 23: Iea-Tc377Te Adaptations

    IEA-TC377TE Adaptations Conversion board connects between the TriCore TC377TE Emulation Adapter and the Solder part which is soldered on the target side. Conversion Target Connecting part Extender Solder part Socket cover Adaptation board (ordering Microcontroller (ordering code) (ordering code) (ordering code) (ordering code) code) IEA-TC377TE-...
  • Page 24 Measurement Board The Measurement Board (Ordering code IAMTC377TE) is optional and it connects between the Emulation Adapter and the Conversion Board. Target Microcontroller Adaptation Pin count layout board TC323, TC333 (0.4 pitch) QFP100 TC333 TQFP-100 TC324, TC334 (0.4 pitch) QFP144 TC334 TQFP-144 TC364 (0.4 pitch) QFP144...

  • Page 25: Mechanical Information

    Mechanical information NQ PACK Solder part solder upper view Side view of the Solder part Solder part solder bottom view Top view of the Conversion board Top view of the Emulation Adapter NQPACK Solder pad view...
  • Page 26 0.20 21.20 0.18 You must be familiar with the SMT (Surface Mount Technology) soldering to solder the NQPACK to the PCB. On request, iSYSTEM provides this service too. BGA292 Adaptation For ordering the correct amount of Extenders go to the IEA-TC377TE Adaptations chapter.

  • Page 27: Nq Pack Assembly

    3. Connect the Emulation Adapter after checking for a match with the position of pin 1 for the YQPACK, and connect the Debug Adapter / Active Probe from the BlueBox to the connector on the Emulation Adapter. For more information on how to connect iSYSTEM hardware refer to isystem.com/connect.

  • Page 28: Hq Pack Assembly

    HQ Pack Assembly First check that the pin 1 positions on the pad pattern and all of the components are correctly aligned. 1. Solder the NQPACK on the Target after checking for a match with the position of pin 1 on the Target.

  • Page 29: Bga Assembly

    3. Connect the Emulation Adapter after checking for a match with the position of pin 1 for the Extender/Solder part, and connect the Debug Adapter/Active Probe from the BlueBox to the connector on the Emulation Adapter. For more information on how to connect iSYSTEM hardware refer to isystem.com/connect.

  • Page 30: Recommended Isystem Tools

    Recommended iSYSTEM tools To ease the development process, we recommend using following iSYSTEM hardware tools with the Infineon TC377TE Emulation Adapter. Ordering Code Description IC5700 iC5700 BlueBox On-Chip Analyzer IC5000 iC5000 BlueBox On-Chip Analyzer IC57031 IOM6 Hub (3 x FNet & FBridge)

  • Page 31: Schematics

    Schematics To view the Emulation Adapter Schematics click on the link below: Schematics To view the Emulation Adapter Schematics: Visit isystem.com/user-manuals, find your Emulation Adapter User Manual and go to the · Schematics chapter or Scan the below QR code:...
  • Page 32 Whilst iSYSTEM reserves the right to make changes to its products and/or the specifications detailed herein, it does not make any representations or commitments to update this document.
