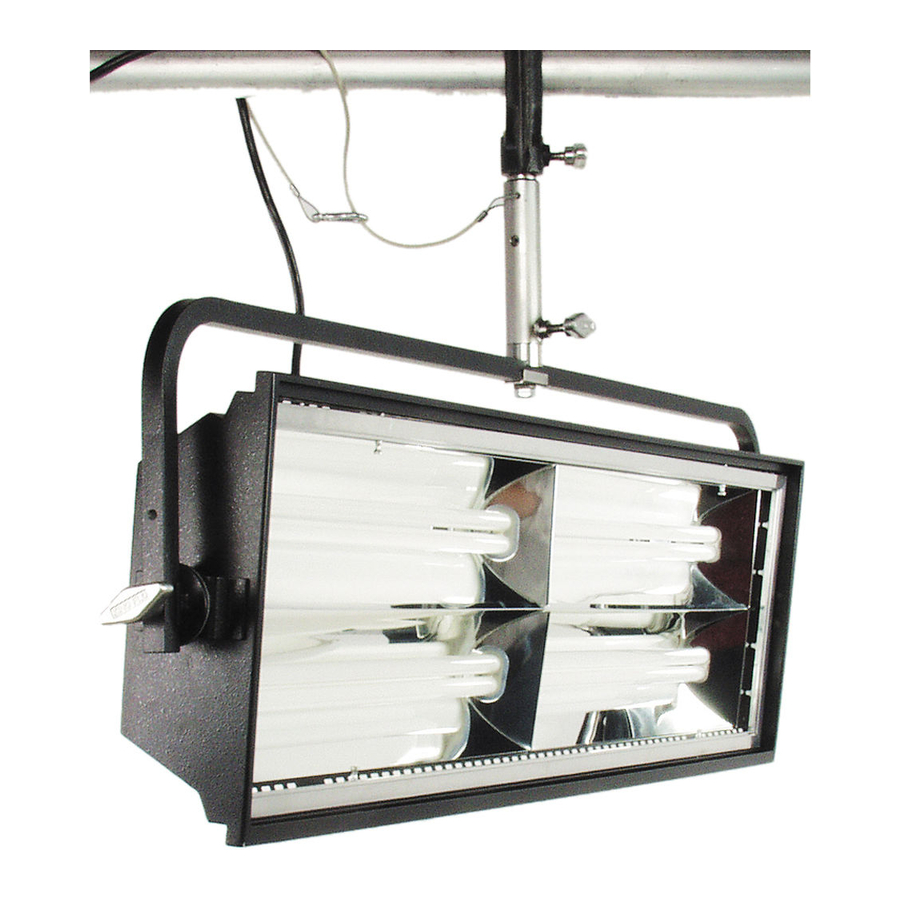

Operation Manual
ParaZip
200 & 400
Part No. 3100039
Rev B
01-07-2008

Advertisement

loading
Need help?

Need help?

Do you have a question about the ParaZip 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kino Flo ParaZip 200

  • Page 1 Operation Manual ParaZip 200 & 400 Part No. 3100039 Rev B 01-07-2008...
  • Page 2 ZIP-400-120………. ParaZip 400 DMX 120VAC ZIP-400-230………. ParaZip 400 DMX 230VAC ZIP-200-120… ParaZip 200 DMX 120VAC ZIP-200-230… ParaZip 200 DMX 230VAC GFR-Z4…. ParaZip 400 Gel Frame GFR-Z2…. ParaZip 200 Gel Frame LVR-Z4-S….ParaZip 400 Louver/Silver LVR-Z2-S….ParaZip 200 Louver/Silver...
  • Page 3     Remove Gel frame. emove the lamp base Insert lamp tip first. cover by pulling up on the two push-buttons. Replace Lamp Base To release lamps, press Snap lamp base into Cover and push down on Red Button and lift lamp Lamp connector.
  • Page 4 A) The Gel Frame comes with Gel Clips. Cut the gel to size and use the Clips to fasten the gel to the Frame. B) Another method is to apply transfer tape directly to the gel frame. The clips are not necessary when taping the gel.
  • Page 5 Warning! To Ensure Proper Operation ALWAYS TURN OFF THE FIXTURE BEFORE connecting or disconnecting lamps. After the lamps are properly installed, the Ballast can be turned on. Avoid operating in temperatures above 125°F (51°C) or below 60°F (15°C). In temperatures below 60°F or 15°C the ballast may take longer to strike. If lamps do not strike within 5 seconds, switch the ballast to OFF, and try again.
  • Page 6: Dmx Addressing

    The on-board dimmer dial can manually dim lamps. The REMOTE DIM jack enables the use of a handheld remote control dimmer (Part # DIM-5, Hand Held Dimmer). The MANUAL DIM LAMPS switch selects 4 or 2 lamp operation. In the 4 setting all four lamps are dimmed. In the 2 setting the center two lamps are dimmed.
  • Page 7 Tip: Position 2 allows for a greater degree of control. The board operator can turn two lamps off (1 f-stop drop in exposure) without shifting the color temperature. The ParaZip 200 operates on one address per fixture. Two lamps are dimmed on one dimmer channel.
  • Page 8 Note: If a Fixture or Ballast loses its DMX signal it will hold its last DMX command. For this reason it is important to turn the Fixture or Ballast off using the DMX commands. For example, if you try to turn off the lights by turning off the dimmer board, the lights will remember their last DMX command and stay on.
  • Page 9 BRD-Z4 ParaZip 400 Barndoors (set of 2) BRD-Z2 ParaZip 200 Barndoors (set of 2) DIM-5 Hand Held remote dimmer with 15ft dimming cable LVR-Z445..… ParaZip 400, Louver 45° LVR-Z460….. ParaZip 400, Louver 60° LVR-Z490….. ParaZip 400, Louver 90° LVR-Z245….. ParaZip 400, Louver 45°...
  • Page 10 XLR-525…Dmx Cable 5-Pin xlr, 25ft XLR-515…Dmx Cable 5-Pin xlr, 15ft KAS-Z41… ParaZip 400 Case KAS-Z21… ParaZip 200 Case KAS-CL6 …. 6-Lamp Carry Case, (55W Compact)
  • Page 11 Lamp types: 55 watt compact fluorescent lamps with 2G11 base Switching: 4 lamp and 2 lamp on/off Dimming: Manual and DMX ZIP-200 ParaZip 200 Power requirements: 120VAC or 230VAC Amperage: 1.1 amps at 120VAC .6 amps at 230VAC Weight: with lamps, louver and gel frame 13.9lbs / 6.3kg...
  • Page 12 Environmental: Disposal of Old Electrical & Electronic Equipment. This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. This product is made of recyclable materials and should be disposed of in accordance with local and state regulations.

This manual is also suitable for:

Parazip 400
