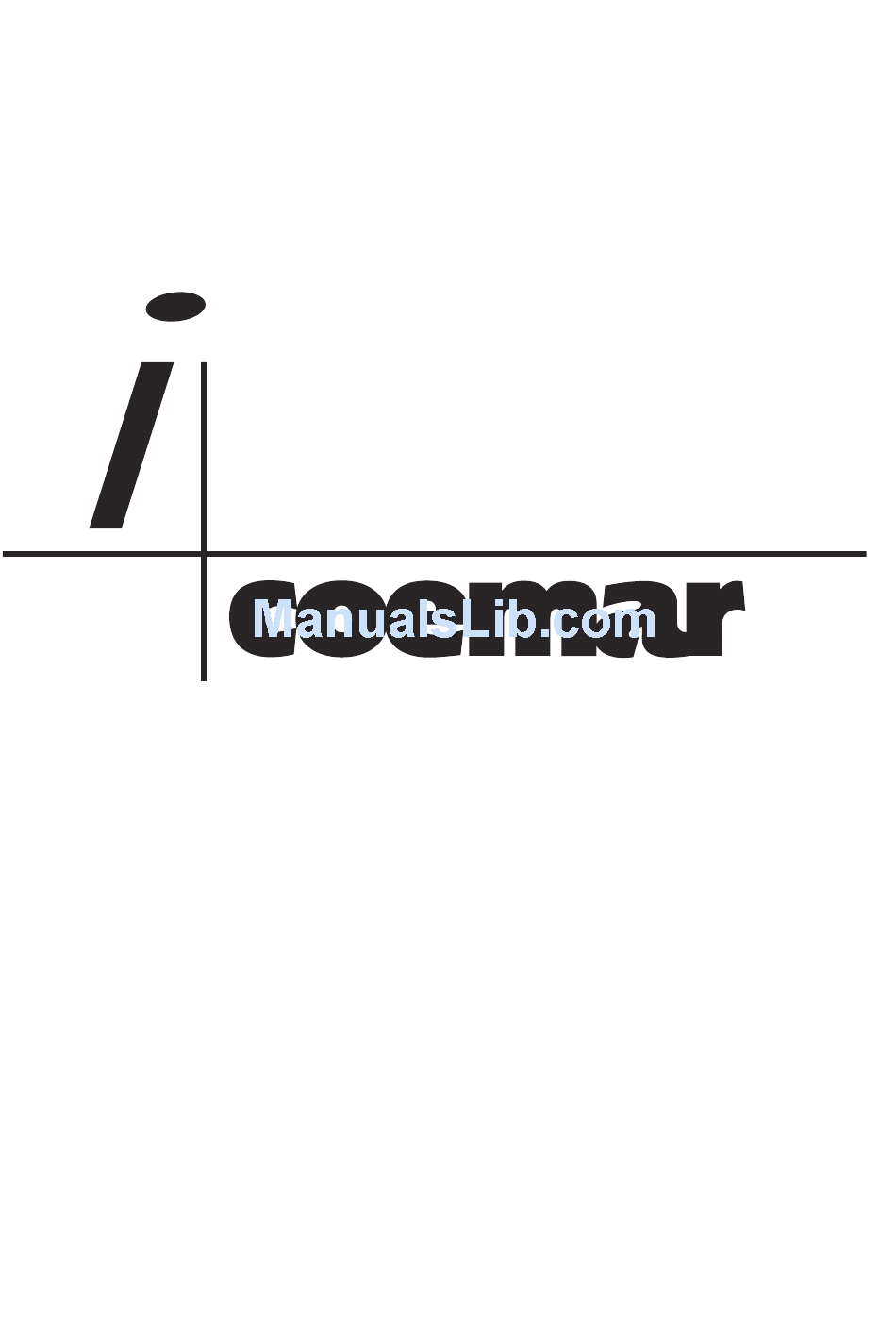

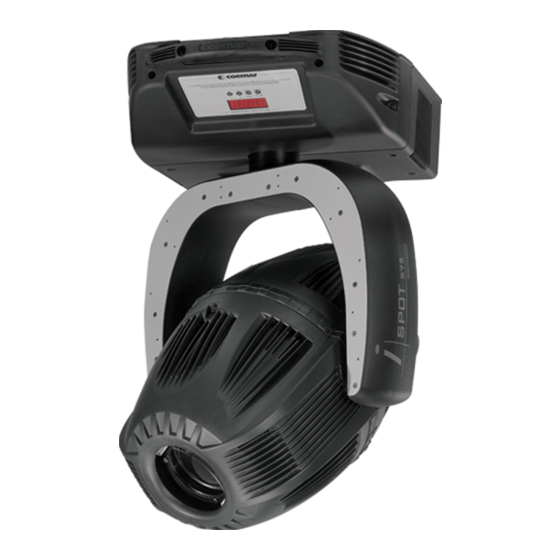

- Page 1 SPOT 575 MB manuale di istruzioni instructions manual 1^ edizione, giugno 2004 edition, june 2004...
- Page 3 iSPOT 575 MB numero di serie/serial number data di acquisto/date of purchase fornitore/retailer indirizzo/address cap/città/suburb provincia/capital city stato/state tel./fax/ Prendete nota, nello spazio apposito, dei dati relativi al modello e al rivenditore del vostro iWASH 575 MB: in caso di richiesta di informazioni, pezzi di ricambio, servizi di riparazione o altro ci permetteranno di assistervi con la massima rapidità...
-
Page 4: Table Of Contents
English Index 1. Packaging Pag. 5 2. Transportation 3. Important safety information 4. Lamp: installation and substitution 5. Operating voltage and frequency 6. Installation 7. Mains connection 8. Signal connection ,, 10 9. Powering up ,, 11 10. DMX addressing ,, 12 11. -
Page 5: Transportation
English Congratulations on having purchased a coemar product. You are assured of a projector of the highest quality, both in the compo- nentry used and in the technology. We reiterate our invitation for you to complete the information on the previous page to expe- dite any request for service information or spares (in case of problems encountered either during, or subsequent to, installation). - Page 6 4. Lamp: Installation and replacement The iSPOT 575 MB utilises a Philips 575 MSD or Philips 575 MSR/2 575W lamp with a GX 9.5 lampbase. The lamp is available from your coemar service centre: Philips 575 MSD Philips 575 MSR/2 coemar cod.
-
Page 7: Operating Voltage And Frequency
Refer to section 13 for a description of this procedure. 5. Operating voltage and frequency The projector is able to operate at either 100, 115, 208, 230 or 240 V. Coemar presets (barring specific requests) an operating voltage of 240v at a frequency of 50 Hz. -
Page 8: Installation
For the purposes of floor mounting, the iSPOT 575 MB is fitted with four pads on the base. For suspending the fixture from lighting truss, coemar has included two cam-lock devices (A). The two cam-lock devices may be installed on the base of the iSPOT 575 MB. The devices are 1/4 turn locking. To install them, make sure that they are correctly seated in the appropriate slots in the base of the unit. - Page 9 If using an after-market safety chain not manufactured by coemar, ensure that it is of a sufficient rating to hold the weight of the unit. The safety chain is attached by means of the two holes B located in the base of the unit as shown in the diagram.
-
Page 10: Mains Connection
331, IEC 332 3C,CEI 20 35. NB: In case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively (cable 3x1,5 ø external 10 mm, rated 300/500V, tested to 2KV, operating temperature -40° +180°, coemar cod. CV5309). mains connection iSPOT 575 MB may operate at 100V-115V-208V-230V-240V at 50 or 60Hz (operating voltage should be selected as discussed in section 5 of this manual). -
Page 11: Signal Connection
7A IP 20 base: GX 9,5 ie max: 5A ie max: 10A 150°C 35°C 0,98 made in italy serial number: by coemar spa, Castel Goffredo Mantova - Italy Controller Standard DMX 512 factory set main at: 100V 115V dmx 512... -
Page 12: Powering Up
English 9. Powering up After having followed the preceding steps, turn on the projector via the power button. upon powering up, the projector will per- form a reset on all its motors, allowing them to be correctly aligned. Software version “D”... -
Page 13: Display Panel Functions
Incorrectly altering the coemar factory settings may vary the functioning of the projector, causing it to not respond to external DMX 512 control signal; please read and familiarise yourself with the following information very carefully prior to altering any selections. - Page 14 English iSPOT 575 MB As stated in the table above, the is able to invert the display on the projector should it be installed base down. The display will appear as shown in the diagram below. function display A O O 1 To change DMX address use (+) and (--);...
-
Page 15: Measure And Test (Meas)
English 11.2. Measure and test (MEAS) iSPOT 575 MB The electronic pcbs of the allow for various digital and auto-diagnostic measurements to be made. You may, in this section, record a home position to which the projector will return when it is turned on in the absence of dmx signal. AOO1 menu FUNC... -
Page 16: Quick Guide To Menu Navigation
English 11.3. Quick guide to menu navigation The following guide will allow you to scroll quickly through the various menus located in the display. A023 A 0 23 AOO1 enter enter menu MEAS FUNC PDIR TDIR enter OPTO TEST P A N enter LAMP T I L T... -
Page 17: Dmx 512 Operation
English 12. DMX 512 operation If all the procedures have been carried out correctly to this point, the 22 channels of your DMX 512 controller will have control over all the functions of the iSPOT 575 MB as described in the table below: type of channel function... - Page 18 Note 6: Turning off the lamp and all the reset functions are delayed by 6 seconds to prevent accidental activation Note 7: The lamp on/off function can only be effected if an opposite level is set Projector: coemar i Spot 575 MB Table name: DMX 512 functions...
-
Page 19: Aligning The Lamp In The Optical Path
English 13. Aligning the lamp in the optical path Aligning the lamp in the optical path is achieved by altering the three adjusters located on the rear of the fixture. This procedure should be undertaken to properly align the lamp in the optical system, thus avoiding the possible overheating of internal components and ensuring the maximum luminous output form the fixture. -
Page 20: Turning On The Ispot 575 Mb Without Articulated Movement
English Turning on the iSPOT 575 MB without articulated movement This procedure may be useful in situations where the iSPOT 575 MB may need to be switched on and have parameters altered in an enclosed space, such as in its flight case. 1) Turn on the projector whilst holding down the enter, menu and –... - Page 21 English 17. Opening the projector The projector is designed to be able to be completely opened up for inspection by removing the housing as described below: Attention Remove the unit from mains power prior to removing the housing. 1) Use a flat head screwdriver to remove the screws which affix the front and rear housings. 2) Lift off the covers to gain access to the internals.
-
Page 22: Opening Up The Projector
The iSPOT 575 MB utilises a mechanical fastening systems which allows gobos to be interchanged without the need for any tools such as spanners or screwdrivers. Gobos should be constructed from heat-resistant glass or metal. A large range of gobos are available from your Coemar service centre. Replacing gobos Gobo dimensions: gobo wheel 1 (closest to the lamp): external ø... - Page 23 (Reserved for technical staff) If the operating voltage set by coemar does not correspond to that is use in your country of operation, or if the projectors are desti- ned for use in another country, a new operating voltage selection may be made as described below.
-
Page 24: Thermal Protection
Periodically check all mechanical devices for wear and tear; gears, guides, belts, etc., replacing them if necessary. Periodically check the lubrication of all components, particularly the parts subject to high temperatures. If necessary, lubricate with suitable lubricant, available from your coemar distributor. electrical components Check all electrical components for correct earthing and proper attachment of all connectors, refastening if necessary. -
Page 25: Electronic Motor Alignment
The display panel of the iSPOT 575 MB allows for the electronic alignment of the projector’ s motors in the optical system. This pro- cedure is performed by coemar at the factory. It may be useful to perform this procedure in the case of internal components being replaced. -
Page 26: Error Messages
The initial parameter settings are incorrect or corrupt; the projector has reloaded its factory default settings. Turn the projector off and on again. Should the error reoccur, refer the unit to your authorised coemar ser- vice centre to have the EEPROM check and possibly replaced. -
Page 27: Spare Parts
25. Spare parts All the components of the iSPOT 575 MB are available as replacement spares from your authorised coemar sales agent. Accurate description of the fixture, model number, and type will assist us in providing for your requirements in an efficient and effec-... -
Page 28: Troubleshooting
Replace the fuse with one of identical value. If the fuse should blow once again, seek assi- The fuse which protects the lamp circuit may stance from your Coemar service centre prior be blown. to replacing the fuse once more. - Page 29 Inghilterra 46042 Castelgoffredo (Mantova) Italy Tel. 0376/77521 Fax 0376/780657 Coemar si riserva il diritto di apportare modifiche senza preavviso. Coemar reserves the right to effect modifications without notification manuale istruzioni instruction manual iSPOT 575 MB 1^ edizione Giugno 2004...
