Coemar Infinity Spot L Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

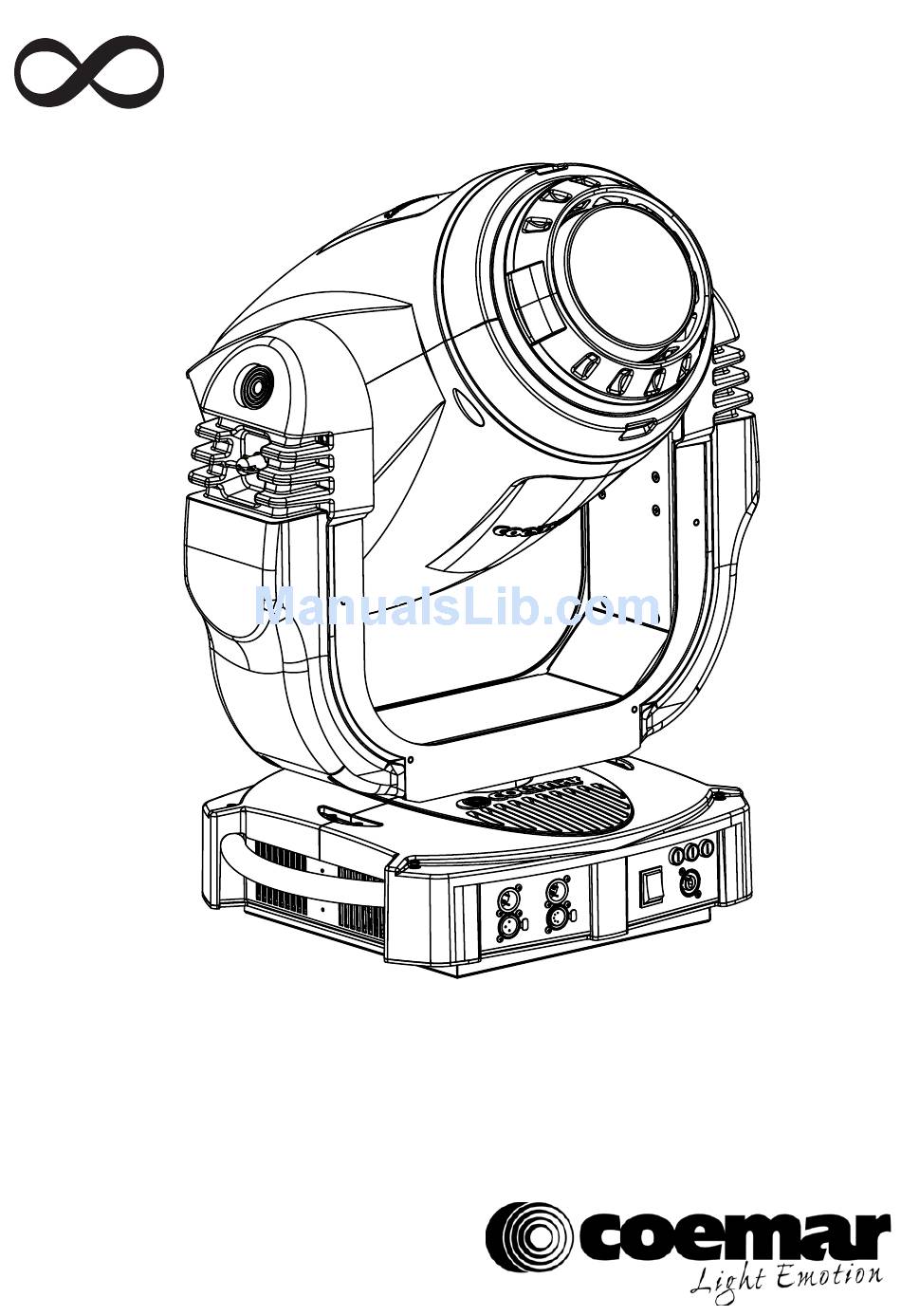

Infinity Spot L
Instruction manual
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Infinity Spot L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coemar Infinity Spot L

Summary of Contents for Coemar Infinity Spot L

  • Page 1 Infinity Spot L Instruction manual Version 1.0...
  • Page 3 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your Infinity Spot L: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.

  • Page 5: Table Of Contents

    English INDEX 1.Packaging and transportation ..........................6 1.1 Packaging ................................6 1.2 Trasportation ................................. 6 2. General information .............................. 6 2.1 Important safety information ........................... 6 2.2 Warranty conditions ............................7 2.3 EC Norms ................................7 3. Product specifications ............................7 3.1 Technical characteristics ............................

  • Page 6: Packaging And Transportation

    2.1 Important safety information. Fire prevention: 1. Infinity Spot L utilizes a Osram Lock-IT® HTI® 1000W/PS lamp, the use of any alternative lamp might be risky and will make the warranty of the fixture null and void. 2. Never locate the fixture on any flammable surface.

  • Page 7: Warranty Conditions

    English Protection rating against penetration by external agents: The fixture is classified as an ordinary apparatus ; its protection grade against penetration by external agents, solid or liquid, is IP20. 2.2 Warranty conditions 1. The fixture is guaranteed for a period of 12 months from the date of purchase against manufacturing or materials defects. 2.

  • Page 8: Installation

    4.1 Mechanical installation Infinity Spot L may be either floor or ceiling mounted. It may also be installed on a structure. The unit is provided with four rubber feet mounted on its base, allowing it to be placed on a flat surface. For installations on a reticular structure, Coemar provides a set of Cam-lock support brackets, which are included in the packaging.

  • Page 9: Safety Connection

    4.2 Safety connection If the Infinity Spot L is fixed to a structure, the use of a safety chain is recommended in order to meet the current rele- vant safety standards. The safety chain must pass through the holes “A” and then fixed to the structure itself.

  • Page 10: Powering Up

    • Infinity Spot L cannot be powered through Dimmer power units. • A good earth connection is necessary for the correct operation of the Infinity Spot L. Never connect the projector to main power if the green/yellow earth cable provided is not correctly connected.

  • Page 11: Turning On The Projector

    1 to 28 from your DMX 512 controller. A second unit must be addressed as A029, a third as A057 and so on. The operation must be carried out every Infinity Spot L which has an address different from A001.

  • Page 12: Dmx Functions

    English 8. DMX functions channel function type of control effect decimale percentage x axis, base movement proportional proportional coarse control of the base motor movement - 255 0% - 100% (pan coarse) x axis, base movement proportional proportional fine control of the base motor movement - 255 0% - 100% (pan fine)
  • Page 13 English full color - 63 0% - 25% step half color - 127 25% - 50% color mode proportional proportional color 128 - 191 50% - 75% step rainbow 192 - 255 75% - 100% proportional control of the percentage of cyan color in the light beam cyan proportional - 255...
  • Page 14 English open - 25 0% - 10% gobo 1 - 51 10% - 20% gobo 2 - 77 20% - 30% gobo 3 - 103 31% - 40% gobo 4 104 - 129 41% - 51% gobo 5 130 - 155 51% - 61% gobo 6 156 - 181...
  • Page 15 79% - 94% total reset 240 - 255 94% - 100% NOTE: Perform a motor reset after the lamp ignition to obtain the best motor alignment Projector: Infinity Spot L Chart name: DMX 512 functions Table number: 341 Edition: 0 Data: 10/07/2015...

  • Page 16: Display Panel Functions

    English 9. Display panel functions By suitably using all the functions of Infinity Spot L, which can be activated through its display panel, it is possible to change some of the parameters and to add some functions. Changing the preset settings made by Coemar can vary the functions of the projector so that it will respond differently to the controller;...

  • Page 17: Measures

    LCD master: software installed on to LCD master board. VERSION sw MOTOR slave: software installed on to MOTOR slave board. 9.5 Display setup The display setup allows tot une the Infinity Spot L functions according to your needs. The following diagram shows the section features. DISPLAY SETUP DIPSPLAY -Standard It allows 180°...

  • Page 18: Special Mode And Electronic Motor Alignment

    The electronic alignment is only possible with DMX512 signal active. The display panel of Infinity Spot L allows the electronic motor alignment of the projector motors in the optical system; this procedure is performed by Coemar at the factory during the testing: in order to obtain particular effects or in the case of internal components being replaced (motors, electronic boards, sensors, etc.) it may be necessary...

  • Page 19: Lamp Installation And Alignment

    10. Lamp installation and alignment Infinity Spot L comes with one Osram Lock-IT® HTI® 1000W/PS with a PGJX28 base working at maximum power of 1000W. It is possible to install also alternative lamps listed in the table below.These lamps are available as a spare part at your Coemar’s distributor or service centre.

  • Page 20: Aligning The Lamp In The Optical Path

    English 10.2 Aligning the lamp in the optical path Aligning the lamp in the optical system is achieved via the 3 adjusters at the rear of the projector. This procedure should be undertaken to maximize output, to avoid the possible overheating of the internal components due to the incorrect focusing of the beam onto components not predisposed to high temperature.

  • Page 21: Operating On Internal Groups

    English 11. Operating on internal groups The fixture allows the extraction of both gobos and colour changer assemblies in order to facilitate inspection, gobos replacing and clearing of colour filters and lenses. WARNING! The following procedures should be undertaken by qualified and experienced technical personnel. Handle with extreme care! Always disconnect al cables before proceeding and ensure that the unit is sufficiently cool.

  • Page 22: Rotating Gobo Wheel Configuration (Gobos Wheel 1)

    Glass gobos defined Up to 21 Up to 6,8 Up to 26,8 In case of replacing of metal gobos, we strongly recommend to use special gobos provided by Coemar. In any case gobo’s thickness must never be below 0.5 mm.

  • Page 23: How To Replace Gobos

    English 11.4 How to replace gobos 1. Lift and gently extract from the gobo wheel the support which contains the gobo you are going to replace. 2. Remove the spring that fixes the gobo to the support. 3. Remove the old gobo. 4.

  • Page 24: Standard Fixed Gobos Wheel Configuration (Gobos Wheel 2)

    11.5 Standard fixed gobos wheel configuration (gobos wheel 2) Note: this gobos wheel only accepts gobos made of metal, in case of replacing we strongly recommend to use special gobos supplied by Coemar. In any case, thickness of the gobos never must be under 0,5 mm. CODE DESCRIPTION N°...

  • Page 25: Standard Color Whel Configuration

    English 11.7 Standard color whel configuration 40mm. CODE POS ROSCO STANDARD N° VT357 021 Bright Red VT351 022 Dark Amber FC050 411 Full CT straw VT355 089 Moss Green VT353 079 Just Blue 11.8 How to replace filters 1. Facing the front side of the wheel, push up the filter to replace inserting your finger through the plate hole, then remove the filter.

  • Page 26: Standard Effect Wheel Configuration

    English 11.9 Standard effect wheel configuration no effect Magnet home position. Magnete per la posizione di riposo. CODE DESCRIPTION N° COPR03 4 Facet Prism COPR01 3D Effect VT333 Progressive Frost 11.10 How to replace effects 1. Lift and gently extract from the wheel the support which contains the effect you are going to replace. 2.

  • Page 27: Maintenance

    13. Spare parts All the components of Infinity Spot L are available as replacement spares from your authorized Coemar service cen- tre. Accurate description of the fixture, model number and type will assist us in providing for your requirements in an...

  • Page 28: Error Messages

    English 14. Error Messages If you have to check a malfunction, Infinity Spot L has an auto diagnostic system that visualizes in the lower part of the display one or more intermittent messages, preceded by “ERR”. The following table will help you to understand these messages correctly. If the problem persists despite carrying out the suggested procedure, contact your Coemar Customer Service Centre.

  • Page 29: Frequently Asked Questions

    English 15. Frequently asked questions Domanda Causa Possibile Possibile Soulzione Check that the mains power cable is Projector not powered up:. connected to power. The projector is completely still. The circuit breaker is switched off. Set the circuit breaker to ON. The protection fuse is blown.
  • Page 30 Coemar Lighting s.r.l. via Carpenedolo 90 46043 Castiglione delle Stiviere Mantova, Italy ph. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to effect modifications without notification...
