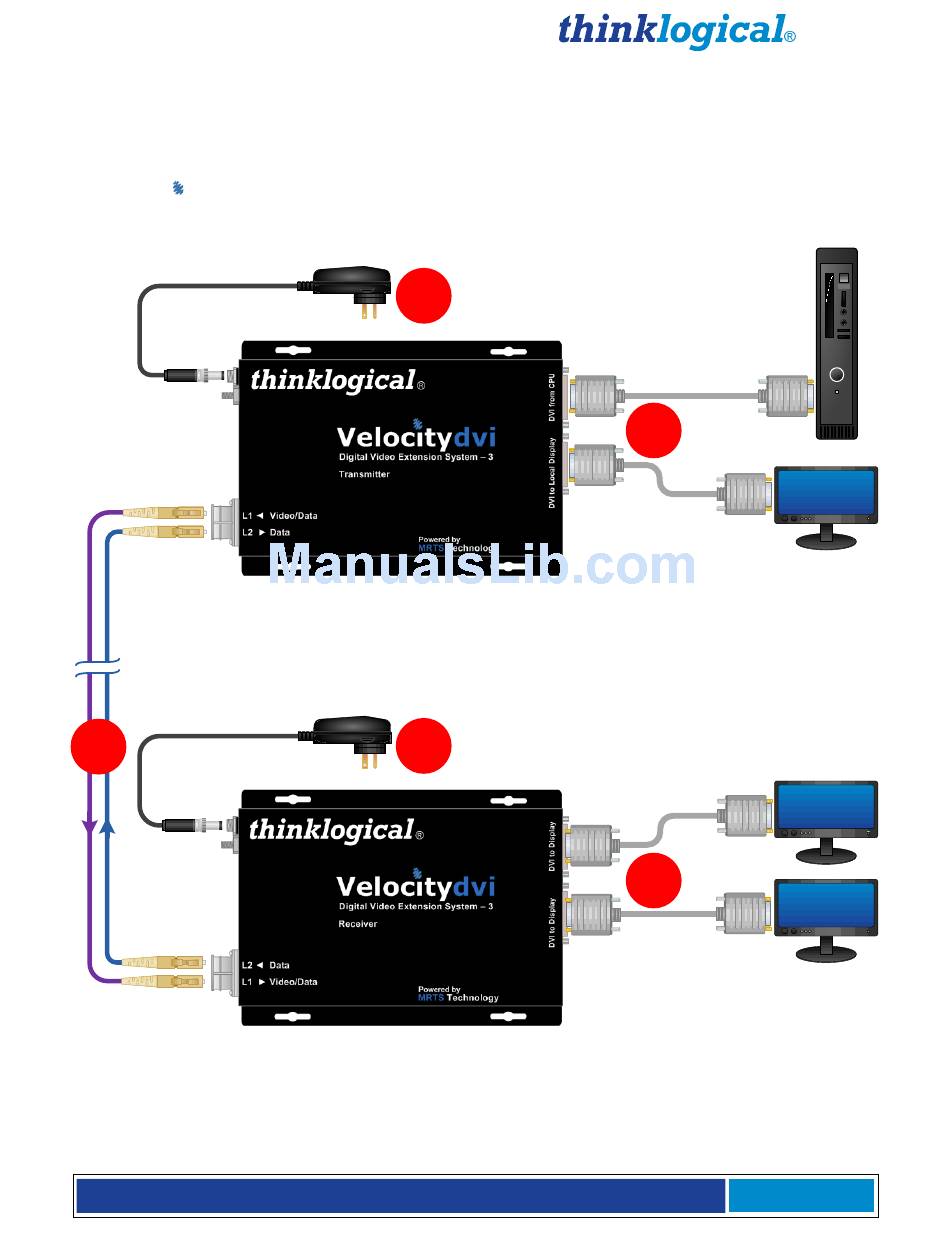

Appendix A: Installation Overview

A.1. VEL-3
Velocitydvi
Digital Video Extender-3 Installation Overview
Power Supply
(PWR-000022-R)
L1
L2
STEP 1: Connect multi-mode fiber optic cables
(up to 1000 meters) between the Rx and Tx units.
L1: Data Tx to Rx & Video
L2: Data Rx to Tx
1
Power Supply
(PWR-000022-R)
L2
L1
Receiver VEL-000M03-LCRX
V e l o c i t y D V I E x t e n d e r P r o d u c t M a n u a l , R e v . G , M a y ,
4
Transmitter VEL-000M03-LCTX
2
STEP 4: Connect the supplied AC Power
Adapter (PWR-000022-R) to the Tx and
plug it into a standard AC source.
STEP 5:
(CPU) to the Tx with a DVI-D M-M
Cable. An optional local display can also
be connected using a DVI-D M-M Cable.
STEP 2:
Connect the supplied AC Power
Adapter (PWR-000022-R) to the Rx and
plug it into a standard AC source.
Primary DDC Port
STEP 3:
port to a video monitor (or projector or other
viewing device) with a DVI-D M-M Cable. A
second device can be installed at the DVI to
Display port using a similar cable. Turn on the
DVI video devices.
CPU
5
Local
Monitor
Connect the video source
DVI OUT
3
DVI OUT
DDC
Connect the DVI to Display DDC
