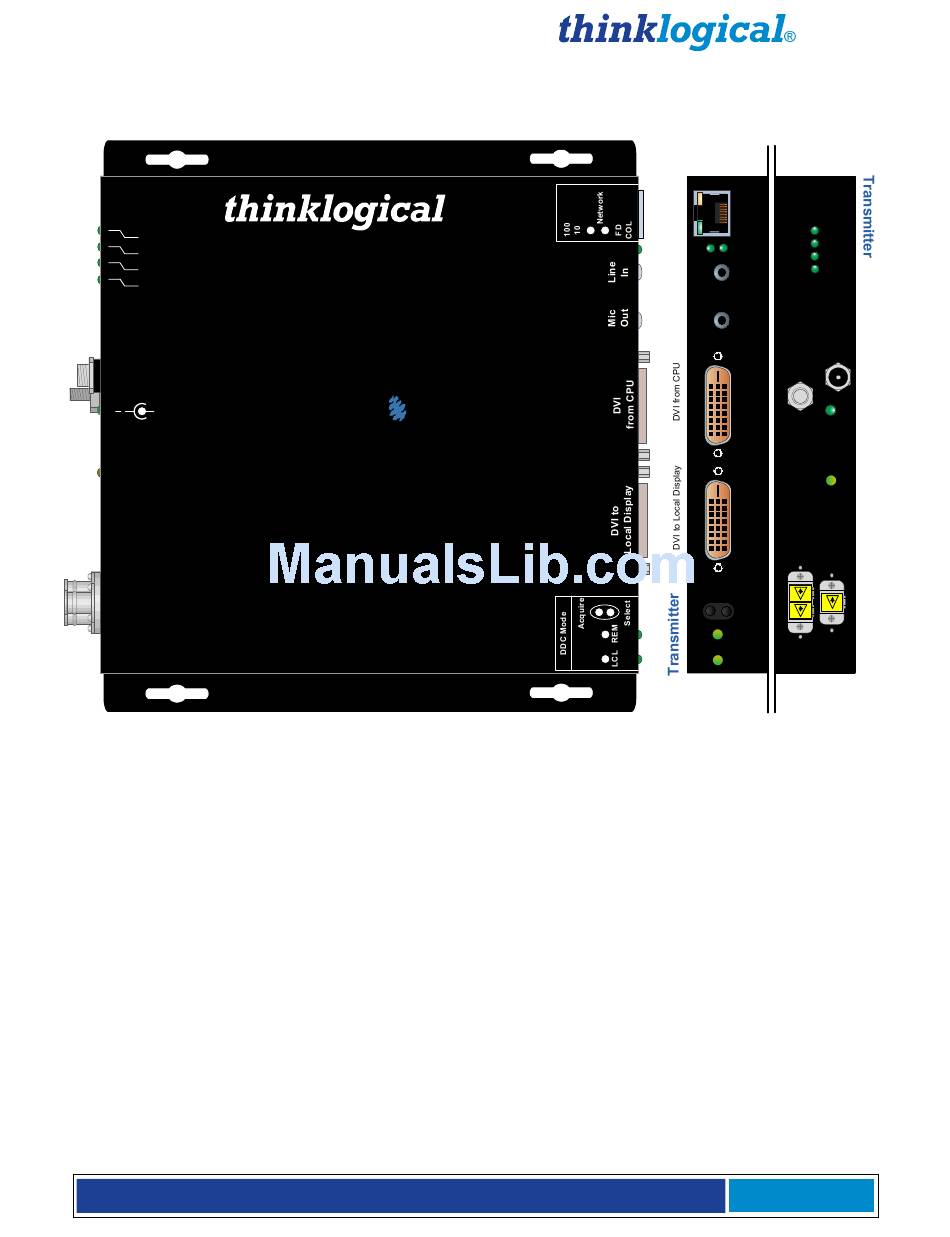

VelocityDVI-6 A/N+ Transmitter
FOL
TX
RX
LNK/ACT
Power
5VDC
+
Status
Lower Connector Lower Connector
◄ ►
L1 Video/Data
L2 Data
◄
L3 Video
7.00" (177.80mm) L x 7.49" (190.25mm) W x 1.10" (27.94mm) H
Front Panel Network Status LEDS:
FOL is ON when Fiber Optic Link is OK.
TX is ON when data is transferring from TX to RX.
RX is ON when data is transferring from RX to TX.
LNK/ACT is ON when link is established. Flashes
when actively transferring data.
V e l o c i t y D V I E x t e n d e r P r o d u c t M a n u a l , R e v . G , M a y ,
Velocity
dvi
Digital Video Extension System – 6A/N+
Dual-Link DVI Transmitter
Powered by
MRTS Technology
Rear Panel Network Status LEDS:
10/100:
When lit, speed of link is 100 Mb/sec.
When off, speed of link is 10 Mb/sec.
FD/COL:
When lit, indicates operation in Full Duplex.
When off, indicates operation in Half Duplex.
When blinking, indicates Collision.
On the RJ45 Connector:
Green LED = Link
Yellow LED (blinking) = Activity
2 0 1 3
