7.4.30. D
ISASSEMBLING THE BELL

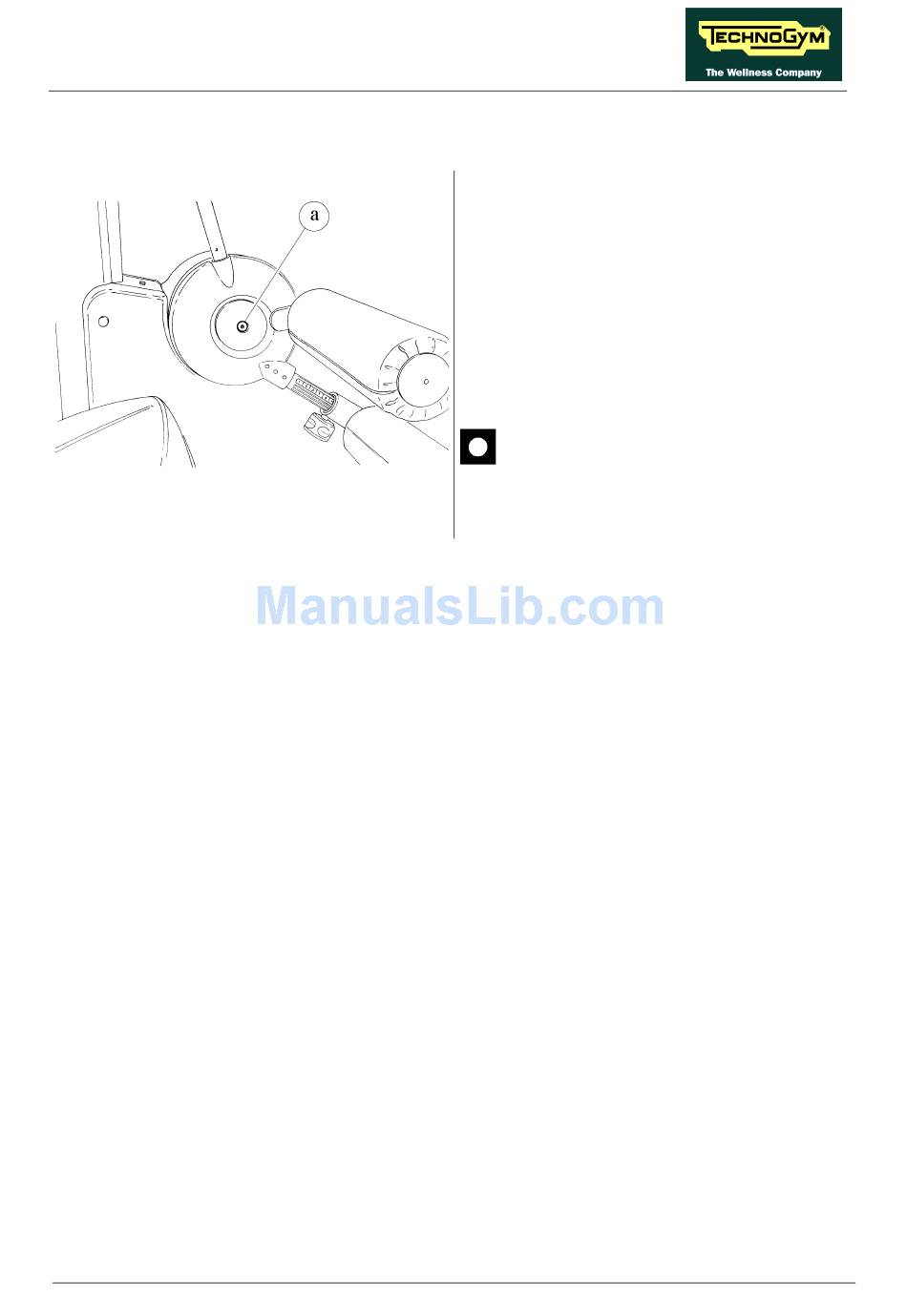

Figure 7.4.30-1
Follow the steps described in paragraphs 7.4.27.
"Disassembling the bell guard".
1. Unscrew the screw a using a 6-gauge
hexagonal T-wrench.
2. Remove the BELL.
To reassemble the BELL, follow the above steps
in reverse order.
During reassembly, make sure that the
BELL pin is inserted in the hole
provided in the weight stack frame.
Page 7.159
