Summary of Contents for Monark 927 E

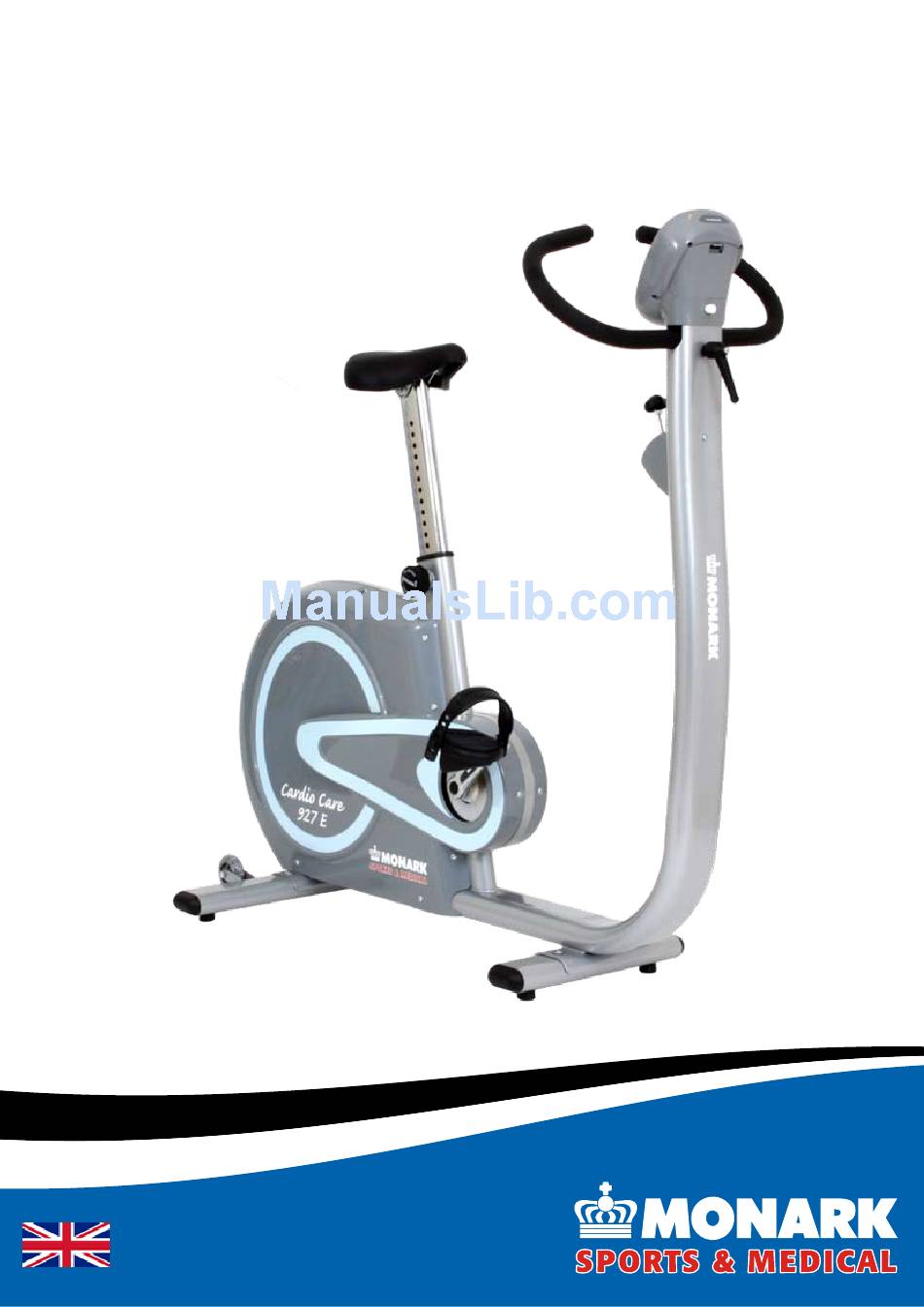

  • Page 1 Manual 927 E...
  • Page 3: Table Of Contents

    Brake belt contact surface ���������������������������������� 11 Chain 1/2“ x 1/8“ ������������������������������������������������� 12 Freewheel sprocket ��������������������������������������������� 13 Spare parts ���������������������������������������������������� 14 Important Read the manual carefully before using the cycle and save it for future use. © 2010 MONARK EXERCISE AB, Vansbro, Sweden...
  • Page 4: Monark Exercise Ab

    Since the early 1900s, Monark’s cycles have been living proof of precision, re- liability, strength and service. That are the reasons why we are now the world leader in cycle ergometers and the market leader in Scandinavia in transport cycles.
  • Page 5: Product Information

    • Adjustable saddle with quick release lever • Adjustable handlebar with quick release lever Monark 927 E Cardio Care is designed to in a sim- • Stable frame, solid steel tube ple way be used for exercise and rehabilitation. This •...
  • Page 6: Operating Instruction

    During longer exercise sessions it can be recommended to change handlebar position. To adjust the handlebar loosen the quick release lever. See fig: Adjustments. Fig: Adjustments. 1) Quick release bolt 2) Quick release lever Monark 927 E...
  • Page 7: Computer Specifications

    Turn off After two minutes the computer will turn off auto- matically if there is no speed or HR-signal detected. At an automatic turn off all parameters are set to zero. Monark 927 E...
  • Page 8 2) Lower display Maintenance 3) MODE-key Do not expose the computer to direct sunlight or ex- 4) (+) -key 5) (-) -key tremely high temperatures. Do not use solvents when 6) RESET-key cleaning, just a dry cloth. Monark 927 E...
  • Page 9: Trouble Shooting Guide

    Scratching sound is heard when pedalling. Check that the carriage block is taken off and that none of the covers is scratching. There is a click noise and a squeak noise Untighten the chain a bit. when pedalling. Monark 927 E...
  • Page 10: Service

    (4 times EC Directive 1999/44/EC. In short, the directive pro- per year). vides for that your Monark Dealer will be liable for • Check now and then that both pedals are firmly any defects, which existed at the time of delivery.
  • Page 11: Batteries

    Crank bearing face”. The crank bearing is long term greased and require normally no supplementary lubrication. If problem arises, please contact your Monark dealer. Brake belt contact surface Flywheel bearing Deposits of dirt on the brake belt and on the contact...
  • Page 12: Chain 1/2" X 1/8

    Adjust chain adjusters to allow chain play according to above. Tighten hub nuts firmly. Put on frame cov- ers again. Monark 927 E...
  • Page 13: Freewheel Sprocket

    The sprocket should be lubricated with a few drops of oil once a year. Tilt the cycle somewhat to make it easier for the oil to reach the ball bearing. See fig: Lubrication. Fig: Lubrication Fig: Hub assembly Fig: Special remover (Art. No: 9100-14) Monark 927 E...
  • Page 14: Spare Parts

    Brake belt, complete 9309-10 Cable holder 9371-16 Magnet 5673-9 Screw M5x12 8523-2 Dust cover for crank 9309-72 Tension device, complete 8523-115 Screw M8x1x20 5698 Screw M5x55 9300-430 Steel crank set, complete 9309-24 Tension cable, complete 9328-33 Adapter M20/M16 Monark 927 E...
  • Page 15 9328-130 Saddle post 9309-9 Handlebar, complete 76424 Foot straps (pair) 9309-71 -Handgrip (pair) 74435 Pedal (pair) 9309-150 Screw set 9300-12 Screw M8x16 9309-550 Decal set 9328-5 Support tube, front 9309-78 Handlebar black compl. with clamp and lever Monark 927 E...
  • Page 16 Version 1010 Art. No: 7950-316 KROONS VÄG 1, SE-780 50 VANSBRO, SWEDEN | WWW.MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81...
