Summary of Contents for Monark 927 E

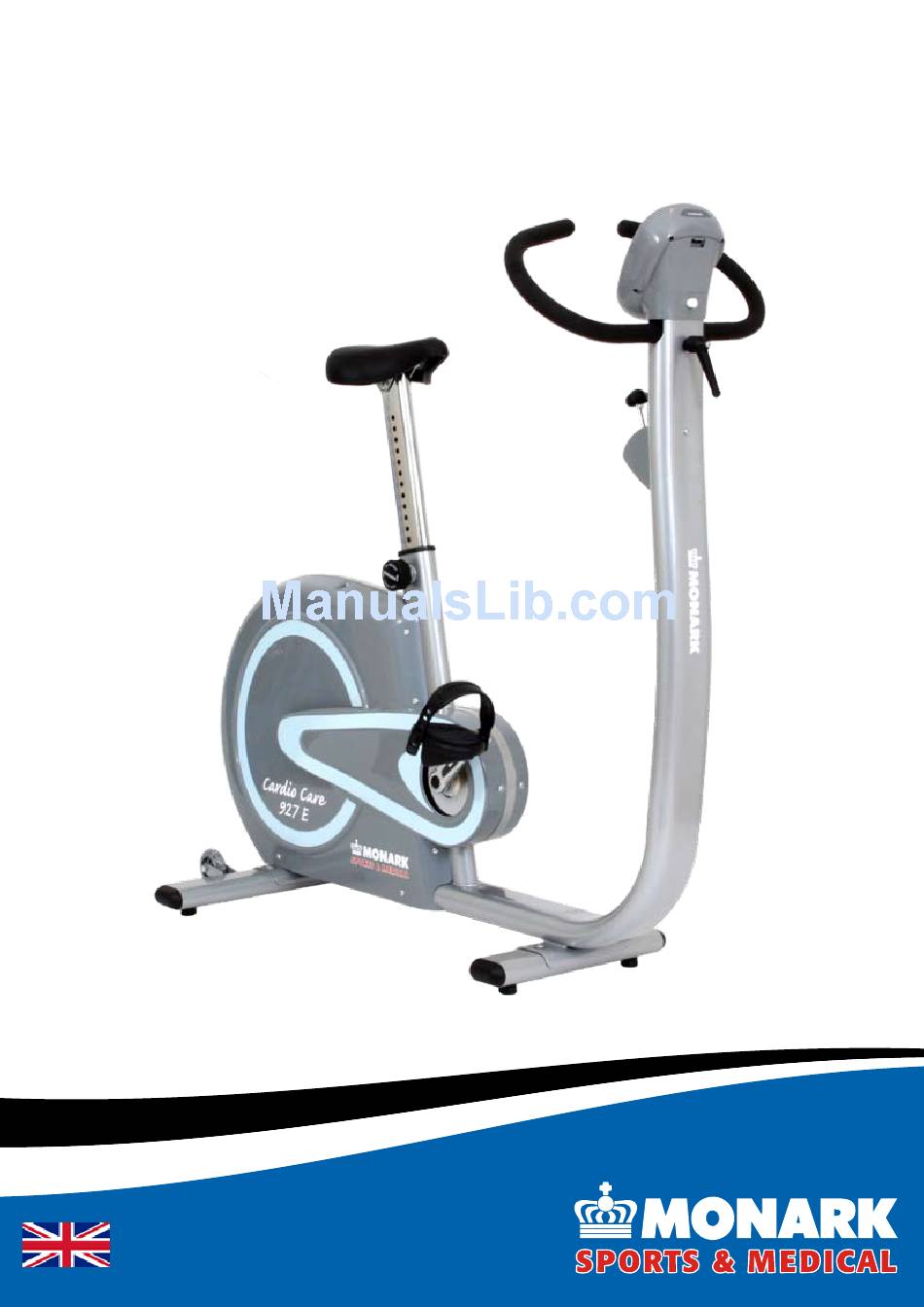

- Page 1 Manual 927 E...
-
Page 3: Table Of Contents
Brake belt contact surface ���������������������������������� 11 Chain 1/2“ x 1/8“ ������������������������������������������������� 12 Freewheel sprocket ��������������������������������������������� 13 Spare parts list ��������������������������������������������� 14 Important Read the manual carefully before using the cycle and save it for future use. 2014 MONARK EXERCISE AB, Vansbro, Sweden... -
Page 4: Monark Exercise Ab
Monark Exercise AB Monark has 100 years’ experience of bicycle production. The Monark tradition has yielded know-how, experience, and a real feel for the product and quality. Since the early 1900s, Monark’s cycles have been living proof of precision, reliability, strength and service. These are the reasons why we are now the word leader in cycle ergometers and the market leader in Scandinavia in transport cycles. -
Page 5: Product Information

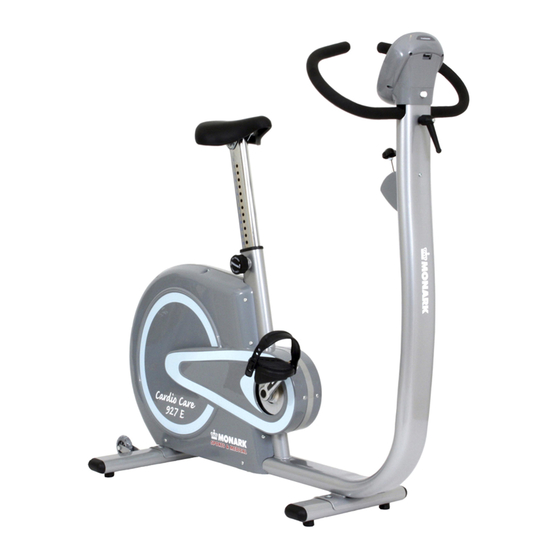

Congratulations on your new exercise bike! • Adjustable saddle with quick release lever • Adjustable handlebar Monark 927 E Cardio Care is designed to in a simple • Stable frame, solid steel tube way be used for exercise and rehabilitation. This •... -
Page 6: Operating Instruction
During longer exercise sessions it is recommended to occasionally change handlebar position. The handlebar is adjusted by loosening the locking knob on the handlebar. See Fig: Adjustments. Fig: Adjustments 1) Quick release bolt 2) Quick release lever Monark 927 E... -
Page 7: Meter Instructions
Do not expose the meter to direct sunlight or extremely automatically if there is no speed or HR-signal high temperature. Do not use any dissolvents when detected. At an automatic turn off all parameters are cleaning. Use only dry cloth. set to zero. Monark 927 E... -
Page 8: Heart Rate
NOTE! Electromagnetic waves may disturb heart rate function. Cellular phones are not allowed to be used near the bike during test. MONARK Fig: Electrodes on the back of the chest belt (1) Fig: Placement of the chest belt Monark 927 E... -
Page 9: Trouble Shooting Guide
Scratching sound is heard when pedalling • Check that the carriage block is taken off and that none of the covers is scratching. There is a click noise and a squeak noise • Loosen the chain. when pedalling. Monark 927 E... -
Page 10: Service
EC Directive 1999/44/EC. In short, tightened. If not the threading in the pedal arms will the directive states for that your Monark Dealer will be damaged. Also check that pedal arms are firmly be liable for any defects, which existed at the time of tightened on the crank axle, tighten if necessary. -
Page 11: Batteries
If a problem arises, Deposits of dirt on the brake belt and on the contact please contact your Monark dealer. surface may cause the unit to operate unevenly and will also wear down the brake belt. The contact surface of... -
Page 12: Chain 1/2" X 1/8
Otherwise the chain and sprockets makes a lot of noise and wears out rapidly. Fig: Chain replacement 4) Lock spring 5) Movement direction Then assemble the removed parts as above but in 6) Chain lock reverse order. Monark 927 E... -
Page 13: Freewheel Sprocket
The sprocket should be lubricated with a few drops of oil once a year. Tilt the cycle to make it easier for the oil to reach the bearing. See Fig: Lubrication. Fig: Lubrication Fig: Hub assembly Monark 927 E... -
Page 14: Spare Parts List
Magnet 5673-9 Screw M5x12 8523-2 Dust cover for crank 9309-72 Tension device, complete 8523-115 Screw M8 x 1 x 20 5698 Screw M5 x 55 9300-430 Steel crank set, complete 9309-24 Tension cable, complete 9328-33 Adaptor M20/M16 Monark 927 E... - Page 15 9328-130 Saddle post 9309-9 Handlebar, complete 76424 Foot straps (pair) 9309-71 -Handgrip (pair) 74435 Pedal (pair) 9309-150 Screw set 9300-12 Screw M8x16 9309-550 Decal set 9328-5 Support tube, front 9309-78 Handlebar black complete with clamp and handle Monark 927 E...
- Page 16 Version 1401 Art. No: 7950-316 KROONS VÄG 1, SE-780 50 VANSBRO, SWEDEN | WWW.MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81...
