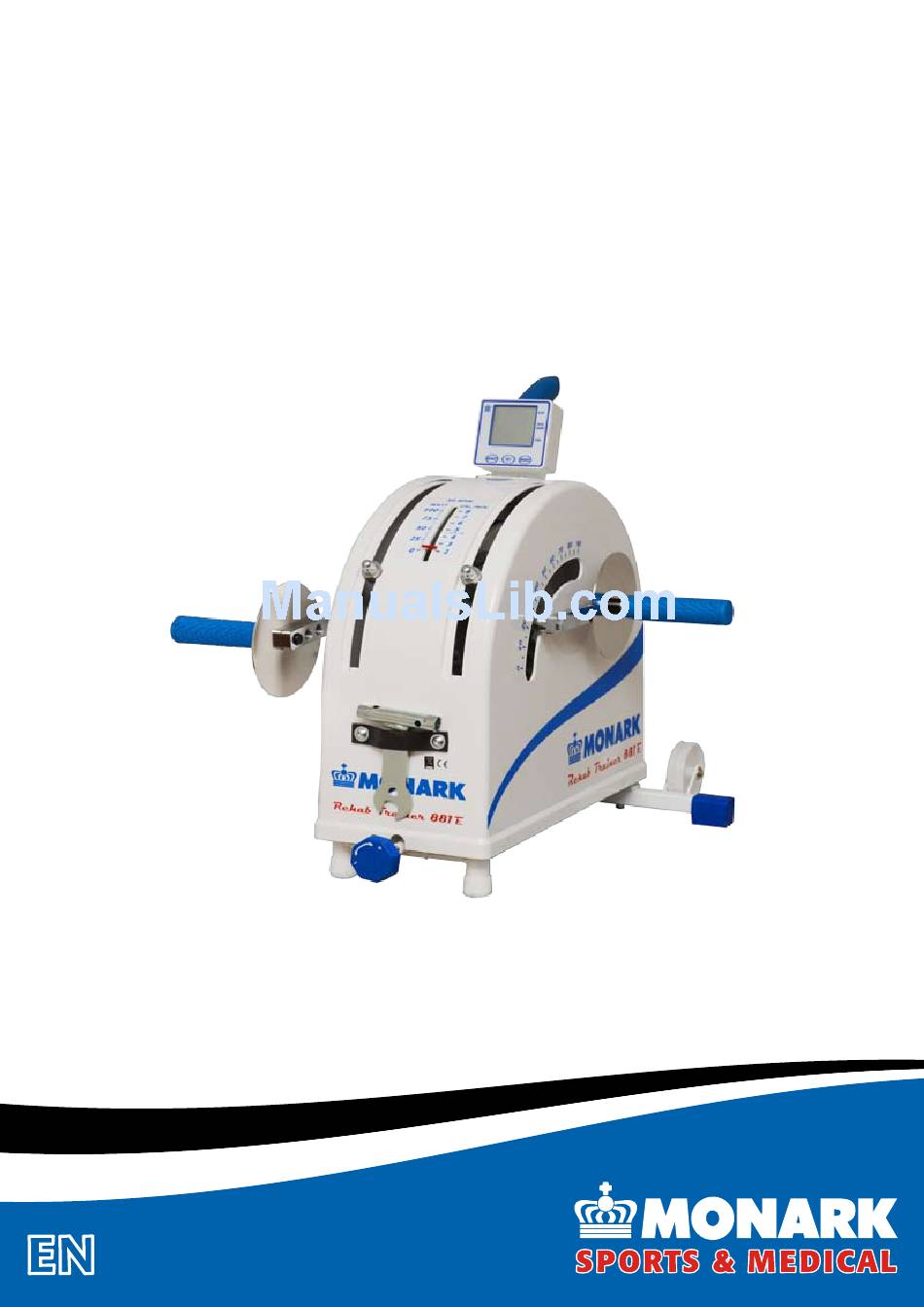

- Page 1 Manual 881 E...
-
Page 3: Table Of Contents
Brake belt contact surface ���������������������������������� 11 Chain 1/2“ x 1/8“ ������������������������������������������������� 12 Freewheel sprocket ��������������������������������������������� 13 Spare parts list ��������������������������������������������� 14 Important Read the manual carefully before using the cycle and save it for future use. 2013 MONARK EXERCISE AB, Vansbro, Sweden... -
Page 4: Monark Exercise Ab
Monark Exercise AB Monark has 100 years’ experience of bicycle production. The Monark tradition has yielded know-how, experience, and a real feel for the product and quality. Since the early 1900s, Monark’s cycles have been living proof of precision, reliability, strength and service. Those are the reasons why we are now the world leader in cycle ergometers and the market leader in Scandinavia in transport cycles. -
Page 5: Product Information

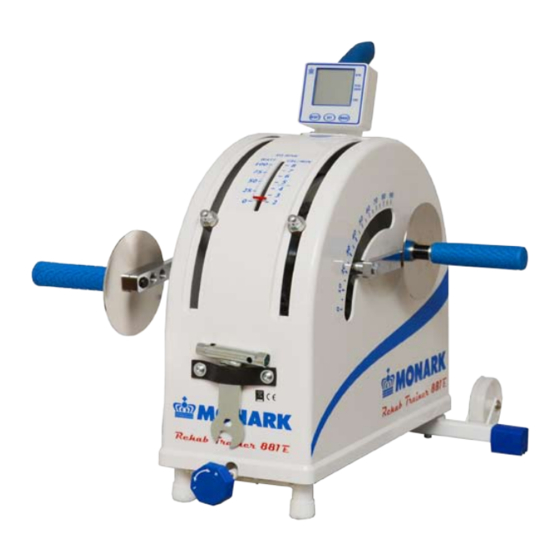

Graduated scale in watts, showing the work load Congratulations on your new Ergometer! at 50 rpm • Electronic measurement of rpm / min, total rpm Monark Rehab Trainer 881 E is an arm and leg and time ergometer that provides the potential to individually • Adjustable... -
Page 6: Operating Instruction
Operating Instruction Workload adjustment Monark Rehab Trainer model 881 E is an arm and leg ergometer provided with a brake belt. The power can be read in watts at 50 pedal rpm. The Rehab Trainer is also equipped with an electronic meter... -
Page 7: Meter Instructions
Each press of the SET will increase the value by 10. When the pedals / handles are rotated the countdown of number of turns automatically start and count down to 0 and a beep will be heard for five seconds. Monark 881 E... -
Page 8: Calibration
(6). Adjust the position of the right hand crank so it is in line with left hand crank and tighten the screw. Fig: Watt scale 4) 2 kp Fig: Adjustments 5) Nuts 6) Crank arm screw 7) Graduated scale 8) 3 different positions Monark 881 E... -
Page 9: Trouble Shooting Guide
Check that the cable are properly connected at the back of the meter. Check the batteries. Runs unevenly and the pointer moves • Dirt on the brake belt and/or contact surface. See ”Brake belt contact irregularly (up and down) surface”. Monark 881 E... -
Page 10: Service
EC Directive 1999/44/EC. In short, tightened. If not the threading in the pedal arms will the directive states for that your Monark Dealer will be damaged. Also check that pedal arms are firmly be liable for any defects, which existed at the time of tightened on the crank axle, tighten if necessary. -
Page 11: Batteries
See ”Brake belt contact surface”. The crank bearing is long term greased and requires no supplementary lubrication. If a problem arises, please contact your Monark dealer. Brake belt contact surface Crank bearing Deposits of dirt on the brake belt and on the contact... -
Page 12: Chain 1/2" X 1/8
Otherwise the chain and Fig: Chain replacement 4) Lock spring sprockets makes a lot of noise and wears out rapidly. 5) Movement direction 6) Chain lock Then assemble the removed parts as above but in reverse order. Monark 881 E... -
Page 13: Freewheel Sprocket
The sprocket should be lubricated with a few drops of oil once a year. Tilt the cycle to make it easier for the oil to reach the bearing. See Fig: Lubrication. Fig: Lubrication Fig: Hub assembly Monark 881 E... -
Page 14: Spare Parts List
Spare parts list Monark 881 E... - Page 15 9045-71 Handcover 9145-136 Tension lever, complete 9045-101 Wall bar fastener 9145-140 Handwheel with tension axle, 9145-550 Decal set for 881 E compl. 6720 Crank bearing set, complete 9145-150 Set with screw, washer and nut 9007-36 Chain wheel, 34T 9145-8 Adjustable stand, accessory 9145-55 Chain 1/2 x 1/8”,42 l, incl.
- Page 16 Version 1407 Art. No: 7950-308 KROONS VÄG 1, SE-780 50 VANSBRO, SWEDEN | WWW.MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81...
