- Page 1 Manual 871 E...
-
Page 3: Table Of Contents
Brake belt contact surface ���������������������������������� 10 Chain 1/2“ x 1/8“ ������������������������������������������������� 11 Freewheel sprocket ��������������������������������������������� 12 Spare parts ���������������������������������������������������� 13 Important Read the manual carefully before using the cycle and save it for future use. © 2010 MONARK EXERCISE AB, Vansbro, Sweden... -
Page 4: Monark Exercise Ab
Since the early 1900s, Monark’s cycles have been living proof of precision, re- liability, strength and service. That are the reasons why we are now the world leader in cycle ergometers and the market leader in Scandinavia in transport cycles. -
Page 5: Product Information

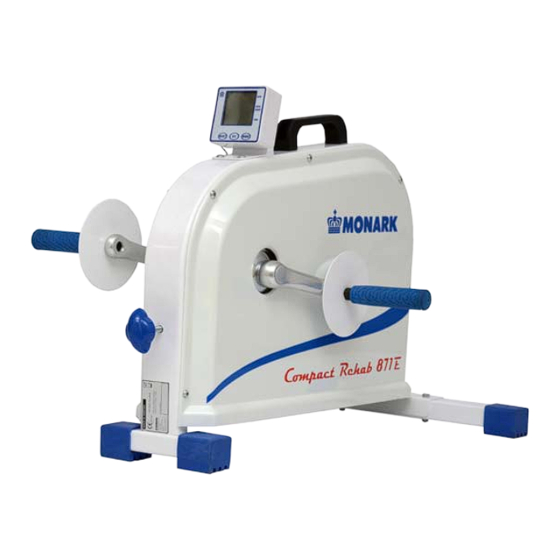

• Transport handle • Powder painted Monark Compact Rehab 871 E is a small, handy arm/ leg trainer which is easy to use and has smooth run- Width ning. Ideal for warm up and exercise in hospitals and 180 mm (7”) at front support tube rehabilitations centers from wheelchair or standing 450 mm (18”) at rear support tube... -
Page 6: Operating Instruction
Operating Instruction Workload device Monark Compact Rehab 871 E is an arm and leg trainer provided with a flywheel and belt brake system. The workload can be changed either by increasing/de- creasing the rotation speed or increasing/decreasing the brake force with the adjustment knob(2). -
Page 7: Computer Specifications
Each press of SET will advance value by 10. When pedalling is started, measurement of remaining revo- lutions will begin and the unit will count down to 0 at which time beeper will sound for five seconds. Monark 871 E... -
Page 8: Troubleshooting Guide
Scratching sound is heard when cycling. Check that the carriage block is taken off and that none of the covers is scratching. There is a click noise and a squeak noise Untighten the chain a bit. when cycling. Monark 871 E... -
Page 9: Service
(4 times EC Directive 1999/44/EC. In short, the directive pro- per year). vides for that your Monark Dealer will be liable for • Check now and then that both pedals are firmly any defects, which existed at the time of delivery. -
Page 10: Batteries
The crank bearing is long term greased and require Brake belt contact surface normally no supplementary lubrication. If problem arises, please contact your Monark dealer. The brake belt should be regularly checked to ensure Flywheel bearing that it has not suffered excessive wear. If it looks worn it should be replaced. -
Page 11: Chain 1/2" X 1/8
Adjust chain adjusters to allow chain play according to above. Tighten hub nuts firmly. Put on frame cov- ers again. Monark 871 E... -
Page 12: Freewheel Sprocket
The sprocket should be lubricated with a few drops of oil once a year. Tilt the cycle somewhat to make it easier for the oil to reach the ball bearing. See fig: Lubrication. Fig: Lubrication Fig: Hub assembly Fig: Special remover (Art. no: 9100-14) Monark 871 E... -
Page 13: Spare Parts
9371-51 Cover, right 9371-30 Brake belt, complete 5673-9 Screw 9327-6 Support tube 9145-71 Handle, pair 9300-215 Pedal, pair 9371-71 Handcover 9300-207 Footstraps, pair 9371-16 Magnet 9371-150 Screw set 9371-55 Chain 9371-550 Decal set 9300-340 BB cartridge bearing Monark 871 E... - Page 14 Notes: ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................... Monark 871 E...
