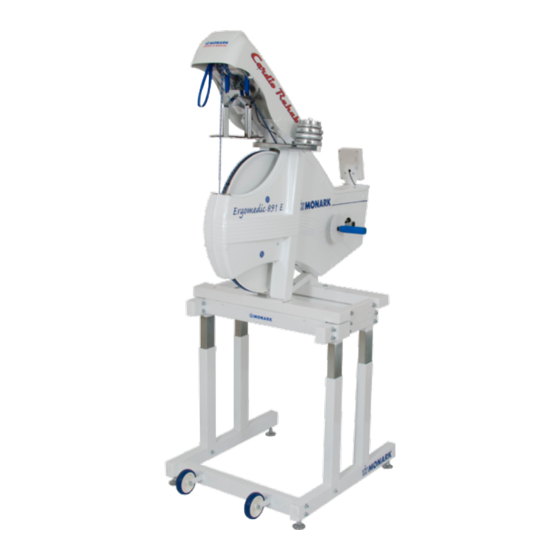

Monark 891 E and 891 E Wingate Option
891 E
Art. No: 90891
Manual for
891 E Wingate Option
Art. No: 90891-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 891 E and is the answer not in the manual?

Questions and answers

Summary of Contents for Monark 891 E

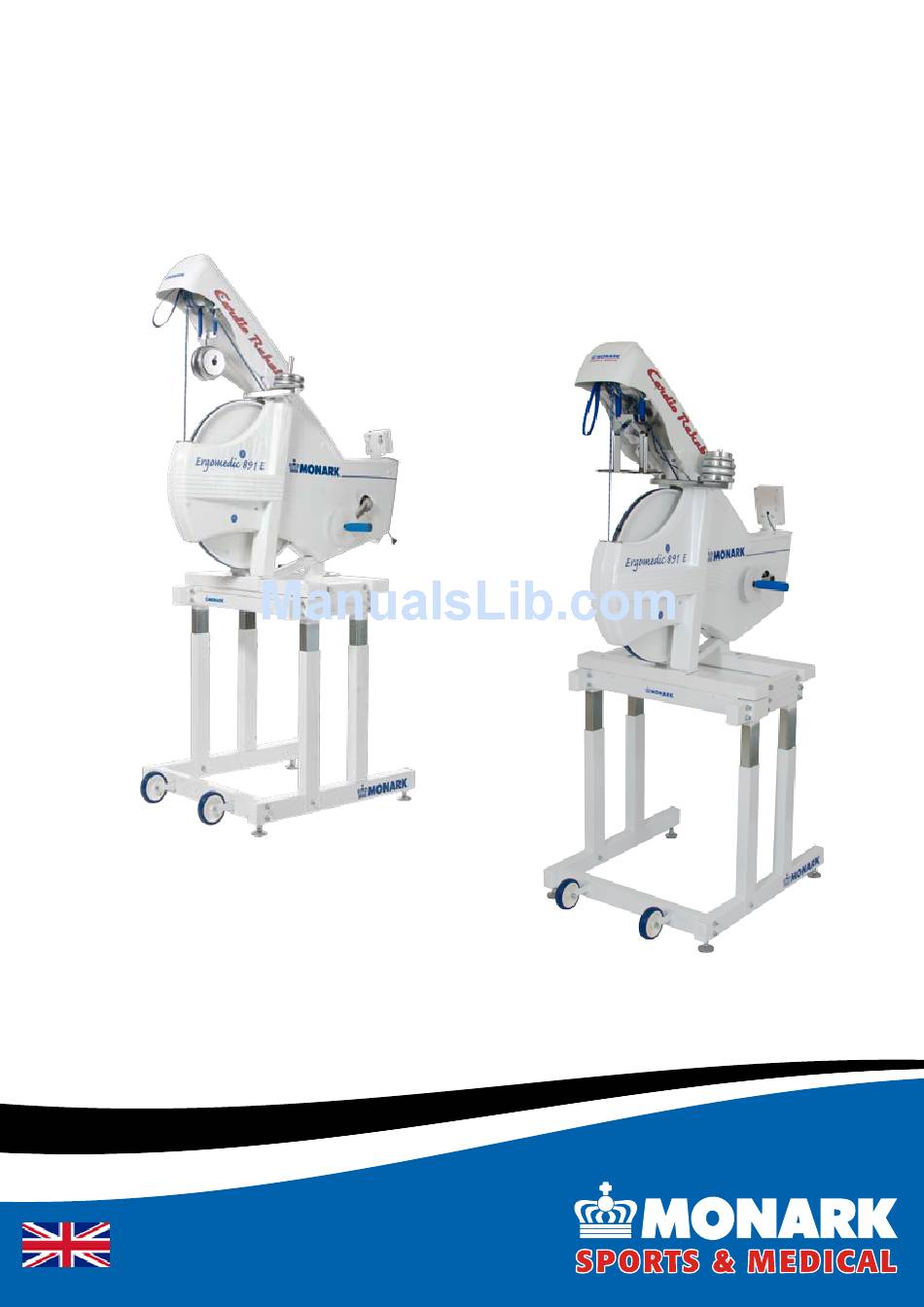

  • Page 1 Manual for Monark 891 E and 891 E Wingate Option 891 E Art. No: 90891 891 E Wingate Option Art. No: 90891-2...
  • Page 3: Table Of Contents

    Meter instructions ���������������������������������������������������������������������������������� 7 891 E ����������������������������������������������������������������������������������������������������� 7 891 E Wingate Option ��������������������������������������������������������������������������� 7 Heart rate 891 E and 891 E Wingate Option ���������������������������������������� 8 Work load control Monark 891 E ����������������������������������������������������������� 8 Power measurement ����������������������������������������������������������������������������� 8 Settings ������������������������������������������������������������������������������������������������� 8 Work load control 891 E Wingate Option ����������������������������������������������...
  • Page 4: Monark Exercise Ab

    Monark Exercise AB Monark has 100 years’ experience of bicycle production. The Monark tradition has yielded know-how, experience, and a real feel for the product and quality. Since the early 1900s, Monark’s cycles have been living proof of precision, reliability, strength and service. Those are the reasons why we are now the world leader in cycle ergometers and the market leader in Scandinavia in transport cycles.
  • Page 5: Monark 891 E And 891 E Wingate Option

    Ideal for exercise from a wheel chair. "Protocols". It is provide with a break, which controls by putting weights in a weight basket. 891 E and 891 E Wingate NOTE! Option is stable arm ergometers qualified for tests The Astrand test is developed for leg ergometer.
  • Page 6: Facts About 891 E

    Facts about 891 E Facts about 891 E Wingate Option • Adjustable stand for optimal position • Adjustable stand for optimal position • The weight basket is released by a push button • Control lever for releasing weight basket from mounted on the cover sitting position.
  • Page 7: Features 891 E And 891 E Wingate Option

    Features 891 E and 891 E Wingate Option Meter instructions Display 0-250 rev./min. 50-240 TIME 0:00-99:59 min:sec SPEED 0-99 km/h or mph DISTANCE 0.0-99.9 FORCE 0.0-7.0 Calories (CAL) 0-999 kcal WATT 0.7 x RPM watt Batteries: 2 x 1.5 V, R6 (AA) Storing temperature: -10º...
  • Page 8: Heart Rate 891 E And 891 E Wingate Option

    Heart rate 891 E and 891 E Wingate Option Work load control Monark 891 E A person's heart rate can be measured with a chest Monark Ergomedic 891 E is a test device, applied belt that senses the electronic output of the heart. The with a braking system, where the brake force can be chest belt is standard equipment.
  • Page 9: Work Load Control 891 E Wingate Option

    Work load control 891 E Wingate Option Anaerobic tests 891 E Wingate Option Through pedalling the test person supplies kinetic Model 894 E has a computer for anaerobic testing energy to the flywheel. The flywheel is then braked and makes the bike possible to connect to an external by means of a brake belt/cord which runs around the PC, PC-cable is included.
  • Page 10: Adjustment Brake Cord Tension 891 E

    Adjustment brake cord tension 891 E At first check that the brake cord is lying correct on the flywheel surface, see Fig: Brake cord and Fig: Brake device. Loosen the stop lever(2) from the tension centre(1). Put 1 kg in the weight basket(4). Rotate the flywheel by hand.
  • Page 11: Adjustment Brake Cord Tension 891 E Wingate Option

    Adjustment brake cord tension 891 E Wingate Option Check at first that the brake belt is lying correct on the flywheel brake surface. See Fig: Brake cord and Fig: Brake device If the weight basket is in its upper position, press the release button. The basket will fall down and increase the tension of the brake belt/cord against the flywheel.
  • Page 12: Troubleshooting Guide 891

    Move the bike to a different location in the room or change rooms. If an irregular HR remains it should be checked manually If the HR remains irregular at work the person's health should be examined. Monark 891 E/891 E Wingate Option...
  • Page 13: Troubleshooting Guide 891 E Wingate Option

    Troubleshooting guide 891 E Wingate Option Symptoms Probable Cause/Corrective Action There is a click noise with every pedal • The pedals are not tight. Tighten them or change pedals. revolution (increases with the weight). • The crank is loose. Check, tighten.
  • Page 14 Incorrect type of data cable is used. Correct type 0-modem cable. Start button in Monark software has not been activated. Communication settings within the Monark software is not correct. Try to change COM-port. In the software’s menu click on –...
  • Page 15 Troubleshooting guide 891 E Wingate Option Fig: COM-port tester Fig: Connections on Circuit board Connector U: Sensor 1 Connector F: Sensor 2 Connector R: Sensor on flywheel Connector +: Power supply (red/black wire) Connector M: Magnet Connector RS232: Communication cables (5 pcs) Connector 1MS: Button to release the weight basket Fig: Sensor and magnets on flywheel.
  • Page 16: Service

    EC Directive 1999/44/EC. In short, be damaged. Also check that pedal arms are firmly the directive states for that your Monark Dealer will tightened on the crank axle, tighten if necessary. be liable for any defects, which existed at the time of When the Ergometer is new it is important to tighten delivery.
  • Page 17: Batteries

    Lock the end of the cord Fig: Brake belt with the lock washer. Monark 891 E/891 E Wingate Option...
  • Page 18: Chain 1/2" X 1/8

    Otherwise the chain and Fig: Chain replacement 4) Lock spring sprockets makes a lot of noise and wears out rapidly. 5) Movement direction 6) Chain lock Then assemble the removed parts as above but in reverse order. Monark 891 E/891 E Wingate Option...
  • Page 19: Freewheel Sprocket

    The sprocket should be lubricated with a few drops of oil once a year. Tilt the cycle to make it easier for the oil to reach the bearing. See Fig: Lubrication. Fig: Lubrication Fig: Hub assembly Fig: Special remover (Art. no: 9100-14) Monark 891 E/891 E Wingate Option...
  • Page 20: Spare Parts List 891

    8523-115 Screw 9324-30 Brake cord 9391-43 Link, complete 9374-60 Bracket for frame 8523-2 Dust cover for crank 9300-5 Chain 116 links incl. lock 9391-41 Push rod 9384-45 Belt control 9100-20 Spring 9339-98 Chest belt Monark 891 E/891 E Wingate Option...
  • Page 21: Spare Parts List 891 E And 891 E Wingate Option

    Spare Parts List 891 E and 891 E Wingate Option Pos. Qty. Art. No. Description Pos. Qty. Art. No. Description 9391-80 Table stand, complete, height- 9000-29 Transport wheel, complete adjustable 9391-9 Upper part 9391-8-10 Screw set Monark 891 E/891 E Wingate Option...
  • Page 22: Spare Parts List 891 E Wingate Option

    Spare Parts List 891 E Wingate Option 15 16 12 17 11 Pos. Qty. Art. No. Description Pos. Qty. Art. No. Description 9374-9 Frame for equipment 9102-30 Weight 0.1 kg / 0.2 lb 5844 Locking nut M8 9102-27 Weight 0.5 kg / 1.1 lb...
  • Page 23 -Axle, length 132 mm 8523-115 Screw M8x1x20 9384-47 Brake cord 9391-43 Link, complete 9300-5 Chain 116 links incl. lock 8523-2 Dust cover for crank 9339-98 Chest belt 14374 Screw M8x160 9300-365 Software 9338-20 USB- Serial converter Monark 891 E/891 E Wingate Option...
  • Page 24 Version 1301 Art. No: 7950-310 KROONS VÄG 1, SE-780 50 VANSBRO, SWEDEN | WWW.MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81...
