- Page 1 Manual 871 E...
-
Page 3: Table Of Contents
Brake belt contact surface ���������������������������������� 10 Chain 1/2“ x 1/8“ ������������������������������������������������� 11 Freewheel sprocket ��������������������������������������������� 12 Spare parts ���������������������������������������������������� 13 Important Read the manual carefully before using the cycle and save it for future use. 2013 MONARK EXERCISE AB, Vansbro, Sweden... -
Page 4: Monark Exercise Ab
Since the early 1900s, Monark’s cycles have been living proof of precision, reliability, strength and service. These are the reasons why we are now the world leader in cycle ergometers and the market leader in Scandinavia in transport cycles. -
Page 5: Product Information

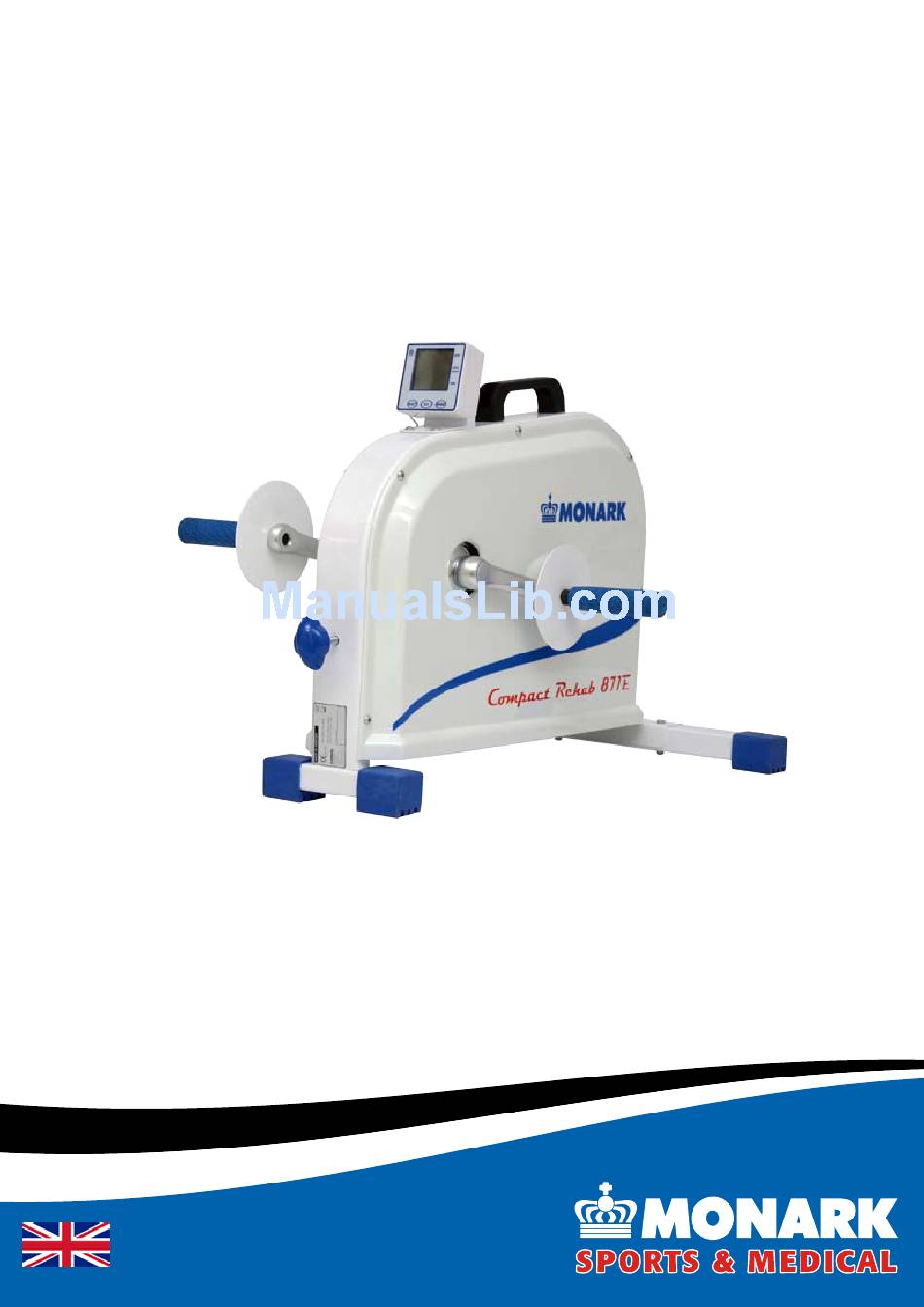

• Transport handle • Powder painted The Monark Compact Rehab 871 E is a small, handy arm/leg trainer which is easy to use and has Width smooth running. Ideal for warm up and exercise in 180 mm (7”) at front support tube hospitals and rehabilitations centers from wheelchair 450 mm (18”) at rear support tube... -
Page 6: Operating Instruction
Operating Instruction Workload device Monark Compact Rehab 871 E is an arm and leg trainer provided with a flywheel and belt brake system. The workload can be changed either by increasing/ decreasing the rotation speed or increasing/decreasing the brake force with the adjustment knob (2). -
Page 7: Computer Specifications
SET to enter your desired value. Each press of SET will advance value by 10. When pedalling is started, measurement of remaining revolutions will begin and the unit will count down to 0 at which time beeper will sound for five seconds. Monark 871 E... -
Page 8: Troubleshooting Guide
Scratching sound is heard when cycling • Check that the carriage block is taken off and that none of the covers is scratching. There is a click noise and a squeak noise • Loosen the chain. when cycling Monark 871 E... -
Page 9: Service
EC Directive 1999/44/EC. In short, important to tighten the pedals after 5 hours of ped- the directive states for that your Monark Dealer will alling (4 times per year). be liable for any defects, which existed at the time of •... -
Page 10: Batteries
See ”Brake belt contact The crank bearing is greased and normally requires surface”. no supplementary lubrication. If a problem arises, please contact your Monark dealer. Brake belt contact surface Flywheel bearing Deposits of dirt on the brake belt and on the contact... -
Page 11: Chain 1/2" X 1/8
Adjust chain adjusters to allow chain play according to above. Tighten hub nuts firmly. Replace frame covers. Monark 871 E... -
Page 12: Freewheel Sprocket
The sprocket should be lubricated with a few drops of oil once a year. Tilt the cycle to make it easier for the oil to reach the bearing. See fig: Lubrication. Fig: Lubrication Fig: Hub assembly Monark 871 E... -
Page 13: Spare Parts
9371-51 Cover, right 9371-30 Brake belt, complete 5673-9 Screw 9327-6 Support tube 9145-71 Handle, pair 9300-215 Pedal, pair 9371-71 Handcover 9300-207 Footstraps, pair 9371-16 Magnet 9371-150 Screw set 9371-55 Chain 9371-550 Decal set 9300-330 BB cartridge bearing Monark 871 E... - Page 14 Notes: ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................Monark 871 E...
- Page 15 Notes: ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................Monark 871 E...
- Page 16 Version 1312 Art. No: 7950-304 KROONS VÄG 1, SE-780 50 VANSBRO, SWEDEN | WWW.MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81...
