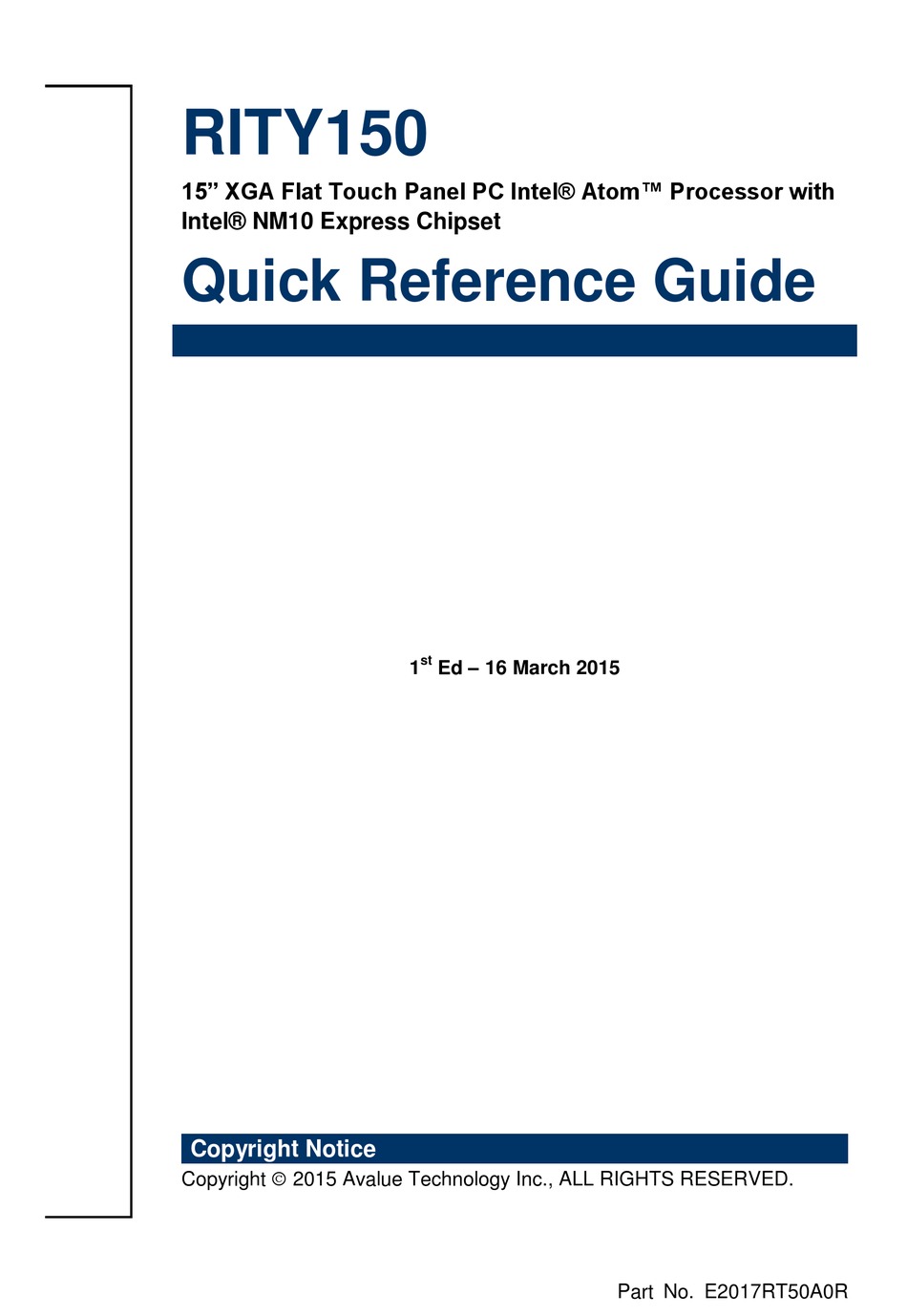

RITY150
15" XGA Flat Touch Panel PC Intel® Atom™ Processor with
Intel® NM10 Express Chipset
Quick Reference Guide
st
Ed – 16 March 2015
1
Copyright Notice
Copyright  2015 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017RT50A0R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RITY150 and is the answer not in the manual?

Questions and answers

Related Manuals for Avalue Technology RITY150

Summary of Contents for Avalue Technology RITY150

  • Page 1 RITY150 15” XGA Flat Touch Panel PC Intel® Atom™ Processor with Intel® NM10 Express Chipset Quick Reference Guide Ed – 16 March 2015 Copyright Notice Copyright  2015 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017RT50A0R...
  • Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 RITY150 Quick Reference Guide...

  • Page 3: Table Of Contents

    Right View ..........................8 1.4.2 Bottom View ..........................8 1.5 System Dimensions ....................9 Hardware Configuration ..................10 2.1 RITY150 connector mapping .................. 11 2.1.1 External Serial Port 1 connector (COM1) ................11 2.1.2 External Serial Port 2 connector (COM2) ................12 2.1.3...

  • Page 4: Getting Started

    1.2 Packing List 1 x RITY Series Panel PC  1 x Power Adapter  1 x Power Cord  1 x Stand (option)  4 RITY150 Quick Reference Guide...

  • Page 5: System Specifications

    1 x mSATA 6 x USB 2.0 2 x RS-232/422/485 (BIOS) COM Port 1 x RS-232 Display Intel® Cedarview Integrated Graphics Chipset Supports dual display LVDS: Max. resolution 1024x768 @ 60Hz Resolution VGA: Max. resolution 1024x768 @ 60Hz RITY150 Quick Reference Guide...
  • Page 6 0% ~ 90% Relative Humidity, Non-condensing Humidity With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Vibration Test Random, 5 ~ 500Hz, 30min/axis Shock Test With SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms Certifications & Software Support Certification Information FCC Class B 6 RITY150 Quick Reference Guide...
  • Page 7 Quick Reference Guide VCCI OS Information POS Ready, Win 7, Win XP Note: Specifications are subject to change without notice. RITY150 Quick Reference Guide...

  • Page 8: System Overview

    External Serial Port 6 connector (For RS-232) VGA connector VGA/HDMI HDMI connector Cash Drawer connector 6 x USB 2.0 connector 2 x RJ-45 Ethernet connector DC Power-in connector DC-IN DC 24V OUT DC Power-out connector KB/MS Keyboard & Mouse connector 8 RITY150 Quick Reference Guide...

  • Page 9: System Dimensions

    Quick Reference Guide 1.5 System Dimensions (Unit: mm) RITY150 Quick Reference Guide...

  • Page 10: Hardware Configuration

    RITY150 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw 10 RITY150 Quick Reference Guide...

  • Page 11: Rity150 Connector Mapping

    External Serial Port 1 connector (COM1) In RS-232 Mode Signal Signal DCDA# DSRA# RXDA RTSA# TXDA CTSA# DTRA# RIA# In RS-422 Mode Signal Signal TxD1- TxD1+ RxD1+ RxD1- In RS-485 Mode Signal Signal DATA1- DATA1+ RITY150 Quick Reference Guide 11...

  • Page 12: External Serial Port 2 Connector (Com2)

    External Serial Port 2 connector (COM2) In RS-232 Mode Signal Signal DCDB# DSRB# RXDB RTSB# TXDB CTSB# DTRB# RIB# In RS-422 Mode Signal Signal TxD1- TxD1+ RxD1+ RxD1- In RS-485 Mode Signal Signal DATA1- DATA1+ 12 RITY150 Quick Reference Guide...

  • Page 13: External Serial Port 6 Connector (Com6)

    Quick Reference Guide 2.1.3 External Serial Port 6 connector (COM6) Signal Signal 2.1.4 VGA/HDMI connector (VGA/HDMI) PIN Signal PIN Signal PIN Signal +12V DATA HSYNC +12V VSYNC RITY150 Quick Reference Guide 13...

  • Page 14: Installing Memory, Mini Pci-E Device & Hard Disk

    RITY150 2.2 Installing Memory, Mini PCI-e device & Hard Disk Step 1. Memory Installation: Unfasten 2 screws from the case. Then take off the top chassis. Step 2. Insert the SODIMM into the memory socket. 14 RITY150 Quick Reference Guide...
  • Page 15 Quick Reference Guide Step 3. Mini PCI-e device Installation: Unfasten 2 screws from the case. Then take off the top chassis. Step 4. Insert the Mini PCI-e device into the socket and fasten 2 screws. RITY150 Quick Reference Guide 15...
  • Page 16 Unfasten 2 screws from the case. Then take off the top chassis. Step 6. Insert the HDD into the bracket and fasten 4 screws. Step 7. Re-assemble your system back through previous steps to complete the installation. 16 RITY150 Quick Reference Guide...
