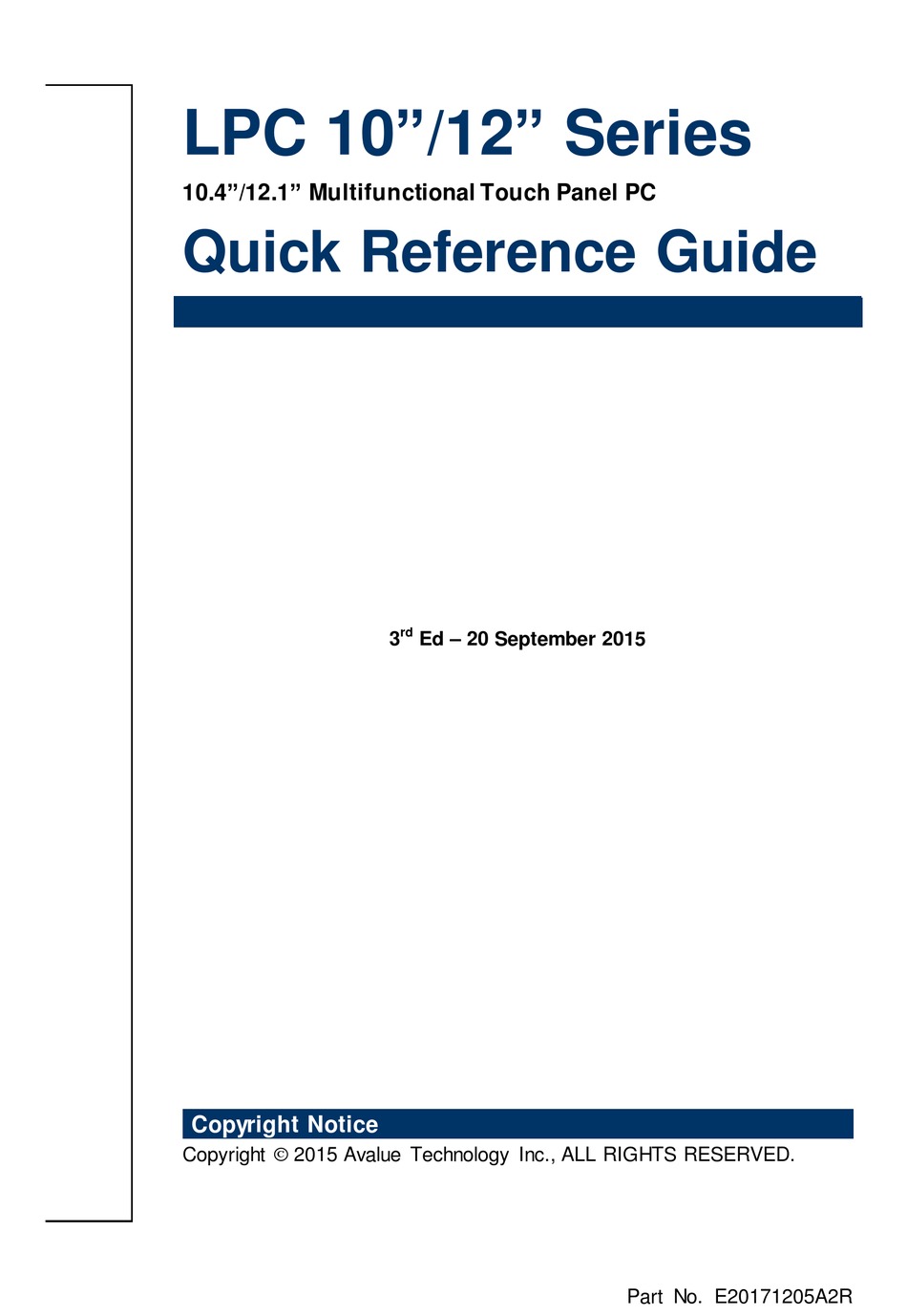

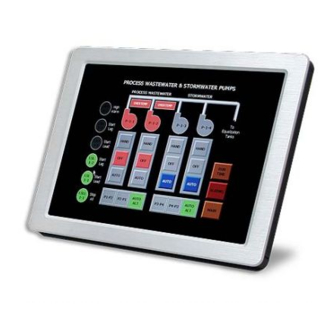

  • Page 1 LPC 10”/12” Series 10.4”/12.1” Multifunctional Touch Panel PC Quick Reference Guide Ed – 20 September 2015 Copyright Notice Copyright  2015 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E20171205A2R...

  • Page 2: Table Of Contents

    LPC 10”/12” Series Contents Getting Started ....................3 1.1 Safety Precautions ..................... 3 1.2 Packing List ....................... 3 1.3 System Specifications ..................4 1.4 System Overview ..................... 10 1.4.1 Front View ........................10 1.4.2 Rear View ........................10 1.5 System Dimensions ..................11 1.5.1 LPC-12 Front and Rear side ..................

  • Page 3: Getting Started

    Quick Reference Guide 1. Getting Started 1.1 Safety Precautions Warning! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges.

  • Page 4: System Specifications

    LPC 10”/12” Series 1.3 System Specifications Panel LPC-1205 LPC-1005 Model 12.1”, 4:3 10.4”, 4:3 LCD size Display type SVGA SVGA Resolution 800 x 600 1024 x 768 800 x 600 1024 x 768 Color 262K 262K 262K 16.2M 0.240mm(H) x 0.240mm(H) x 0.264mm(H) x 0.0685mm(H) x...
  • Page 5 Quick Reference Guide External I/O Ports COM Port 1 x RS-232 Ethernet Port 1 x RJ-45 VGA / LCD Port 1 x DB-15 USB Port 2 x USB 2.0 Audio Port Line-out Mouse & K/B 1 x PS/2 KB & MS Power Supply Unit Power Requirement +12V ~ +26V...
  • Page 6 LPC 10”/12” Series Panel LPC-1203 LPC-1003 Model LCD size 12.1”, 4:3 10.4”, 4:3 Display type SVGA SVGA Resolution 800 x 600 1024 x 768 800 x 600 1024 x 768 Color 262K 262K 262K 262K 0.3075mm(H) x 0.240mm(H) x 0.264mm(H) x 0.20625mm(H) x Pixel pitch 0.3075mm(V)
  • Page 7 Quick Reference Guide External I/O Ports COM Port 1 x RS-232/422/485 setting by BIOS*, optional extra 1 x RS-232/422/485 Ethernet Port Dual RTL8111C Giga LAN VGA / LCD Port 1 x DB-15 Audio Port Line-out USB Port 2 x USB 2.0 Power Supply Unit Power Requirement +12V ~ +26V...
  • Page 8 LPC 10”/12” Series Panel LPC-1201 LPC-1001 Model LCD size 12.1”, 4:3 10.4”, 4:3 Display type SVGA SVGA Resolution 800 x 600 1024 x 768 800 x 600 1024 x 768 Color 262K 262K 262K 262K 0.3075mm(H) x 0.240mm(H) x 0.264mm(H) x 0.20625mm(H) x Pixel pitch 0.3075mm(V)
  • Page 9 Quick Reference Guide External I/O Ports COM Port 1 x RS-232 Ethernet Port Dual RTL8110SC Giga LAN VGA / LCD Port 1 x DB-15 Audio Port Line-out USB Port 2 x USB 2.0 Power Supply Unit Power Input Power Output 12V/5A (60W) Environment &...

  • Page 10: System Overview

    LPC 10”/12” Series 1.4 System Overview 1.4.1 Front View 1.4.2 Rear View POWER Connectors Label Function Note POWER Power on button CF Type I/II Socket with Ejector Optional for 2 COM port Serial port DB-9 male connector LINE OUT Line-out audio jack 2 x USB 2.0 connector Dock USB LAN1...

  • Page 11: System Dimensions

    Quick Reference Guide 1.5 System Dimensions 1.5.1 LPC-12 Front and Rear side LPC 10”/12” Series Quick Reference Guide 11...

  • Page 12: Lpc-10 Front And Rear Side

    LPC 10”/12” Series 1.5.2 LPC-10 Front and Rear side (Unit: mm) 12 LPC 10”/12” Series Quick Reference Guide...

  • Page 13: Bottom And Rear Side

    Quick Reference Guide 1.5.3 Bottom and Rear Side M3*3 Note: The M3*3 screw holes are reserved for LPC Series Panel Mount Brackets. Improper usage may harm the mechanical parts. LPC 10”/12” Series Quick Reference Guide 13...
  • Page 14 LPC 10”/12” Series M4*4 Follow these steps to install the wall mounting arm: 1. Place the wall mounting arm onto the back of panel PC. 2. Insert the 4 screws into the holes and tighten. Line up the holes of the arm with the holes of panel PC. 3.

  • Page 15: Hardware Configuration

    Quick Reference Guide 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw LPC 10”/12” Series Quick Reference Guide 15...

  • Page 16: Bios Settings

    LPC 10”/12” Series 2.1 BIOS settings 2.1.1 RS232/422/485 setting using BIOS 2.1.1.1 EBM-945GSE M/B The COM port setting of LPC-1003/1203, which applies for EBM-945GSE M/B, can be configured by BIOS. The path is shown as below. [BIOS Menu]  [Integrated Peripherals]  [Super IO Device] ...
  • Page 17 Quick Reference Guide 2.1.1.2 EBM-PNV M/B The COM port setting of LPC-1005/1205, which applies for EBM-PNV M/B, can be configured by BIOS. The path is shown as below. [BIOS Menu]  [Advanced]  [Super IO Configuration]  [Serial Port 2 mode for RS-232/422/485] Note: To change COM port setting, it is necessary to adjust SW2, JP1, JP2 settings of EBM-PNV as well.
  • Page 18 LPC 10”/12” Series 2.1.1.2.1 EBM-PNV board COM port setting Serial port 1/ 2 RS-232/ 422/ 485 mode select (JP1/ JP2) Serial port 1/ 2 - RS-232/ 422/ 485 mode select (SW2) 18 LPC 10”/12” Series Quick Reference Guide...

  • Page 19: Pwm Backlight Control Setting For Ebm-Pnv

    Quick Reference Guide 2.1.2 PWM Backlight control setting for EBM-PNV The Backlight control setting which applies for EBM-PNV M/B can be configured by BIOS; the path is shown as below. [Chipset]  [North Bridge Configuration]  [Video Function Configuration] Panel 2 Back light mode: PWM mode Panel 2 Back light control: 100% Note: Panel 1 Back light mode : DC mode...

  • Page 20: Installing Hard Disk & Memory

    LPC 10”/12” Series 2.2 Installing Hard Disk & Memory Step 1. Unfasten 6 screws from the case. Then take off the top chassis. Step 2. Insert the SODIMM into the memory socket. 20 LPC 10”/12” Series Quick Reference Guide...
  • Page 21 Quick Reference Guide Step 3-1. HDD Installation: Insert the cable to connect the HDD and the SATA connecter. SATA Connector IDE Connector Step 3-2. SATA HDD Installation: By default, the SATA cables had been inserted to the according connectors. Just connect to SATA HDD with the two cables. LPC 10”/12”...
  • Page 22 LPC 10”/12” Series Step 3-3. Insert the HDD into the Drive Bay. Remember to place the HDD down to the bottom exactly in order to screw the device tightly. Step 4. Place back the chassis with 6 screws locked. 22 LPC 10”/12” Series Quick Reference Guide...
