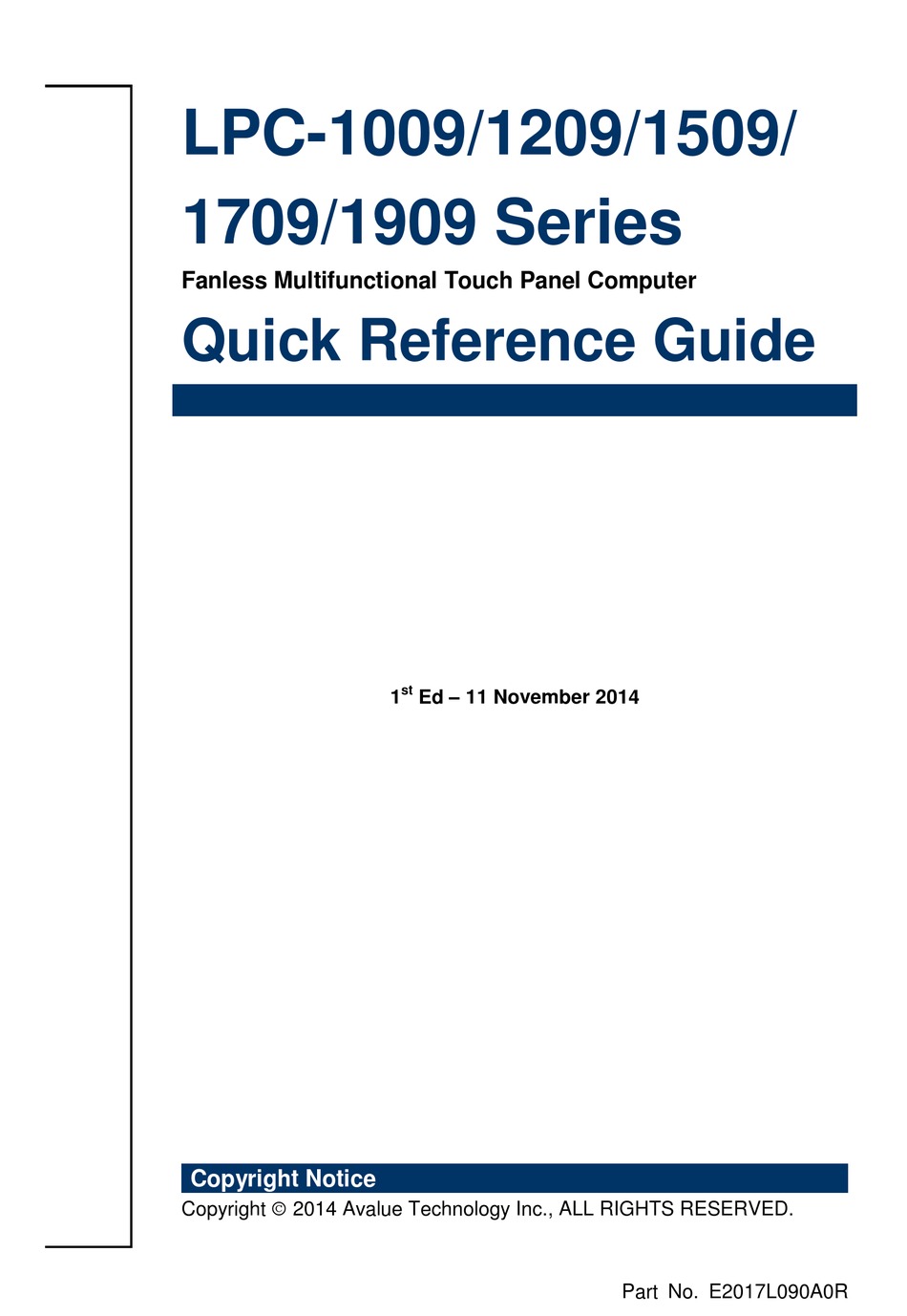

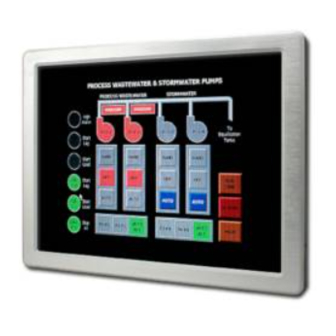

- Page 1 LPC-1009/1209/1509/ 1709/1909 Series Fanless Multifunctional Touch Panel Computer Quick Reference Guide Ed – 11 November 2014 Copyright Notice Copyright 2014 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017L090A0R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
-
Page 4: Table Of Contents
LPC-1009/1209/1509/1709/1909 Series Content Getting Started ......................5 1.1 Safety Precautions ....................5 1.2 Packing List ....................... 5 1.3 System Specifications ....................6 1.4 System Overview ....................10 1.4.1 Top View ..........................10 1.4.2 Bottom View ........................... 10 1.5 System Dimensions ....................12 1.5.1 LPC-1009 Front and Rear side .................... -
Page 5: Getting Started
Quick Reference Guide 1. Getting Started 1.1 Safety Precautions Warning! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. -
Page 6: System Specifications
LPC-1009/1209/1509/1709/1909 Series 1.3 System Specifications Panel LPC-1009 LPC-1209 Model LCD size 10.4", 4:3 12.1", 4:3 Display type XGA TFT Resolution 1024 x 768 Pixel pitch 0.0685mm(H) x 0.2055mm(V) 0.240mm(H) x 0.240mm(V) Luminance 500 cd/m² 600 cd/m² Contrast ratio 1200 Viewing angle 88(U), 88(D), 88(L), 88(R) 70(U), 70(D), 80(L), 80(R) Response time... - Page 7 Quick Reference Guide Audio AC97 Codec Realtek ALC892 supports 5.1-CH Audio Audio Interface Connector: Line out Ethernet LAN Chip Dual Intel I210IT PCI-E Gigabit LAN Ethernet 10/100/1000 Base-Tx Fast Ethernet compatible Interface Mechanical & Environment Color Front Silver & Rear panel Black Mounting Wall/Stand/VESA 75 mm x 75 mm System Power...
- Page 8 LPC-1009/1209/1509/1709/1909 Series Panel LPC-1509 LPC-1709 LPC-1909 Model LCD size 15", 4:3 17", 4:3 19", 4:3 Display type SXGA Resolution 1024 x 768 1280 x 1024 Pixel pitch 0.297mm(H) x 0.297mm(V) 0.264mm(H) x 0.264mm(V) 0.294mm (H) x 0.294mm (V) Luminance 400 cd/m² 350 cd/m²...
- Page 9 Quick Reference Guide Resolution HDMI 1.4a resolutions up to 1920x1200@ 60 24bpp Dual Display LVDS + HDMI Audio AC97 Codec Realtek ALC892 supports 5.1-CH Audio Audio Connector: Line out Interface Ethernet LAN Chip Dual Intel I210IT PCI-E Gigabit LAN Ethernet 10/100/1000 Base-Tx Fast Ethernet compatible Interface Mechanical &...
-
Page 10: System Overview
LPC-1009/1209/1509/1709/1909 Series 1.4 System Overview 1.4.1 Top View LPC-1009/1209 LPC-1509/1709 LPC-1909 1.4.2 Bottom View Connectors Label Function Note POWER Power on button Compact CF Type I/II Socket with Ejector Optional for 2 COM port Flash/COM2 DB-9 male connector COM1 Serial port 1 connector Line-out audio jack LINE OUT 1 x USB 2.0 connector... - Page 11 Quick Reference Guide System power indicator HDMI connector VGA/HDMI RESET Reset button DC-IN DC Power-in connector LPC-1009/1209/1509/1709/1909 Series Quick Reference Guide 11...
-
Page 12: System Dimensions
LPC-1009/1209/1509/1709/1909 Series 1.5 System Dimensions 1.5.1 LPC-1009 Front and Rear side (Unit: mm) 12 LPC-1009/1209/1509/1709/1909 Series Quick Reference Guide... -
Page 13: Lpc-1209 Front And Rear Side
Quick Reference Guide 1.5.2 LPC-1209 Front and Rear side (Unit: mm) LPC-1009/1209/1509/1709/1909 Series Quick Reference Guide 13... -
Page 14: Lpc-1509 Front And Rear Side
LPC-1009/1209/1509/1709/1909 Series 1.5.3 LPC-1509 Front and Rear side (Unit: mm) 14 LPC-1009/1209/1509/1709/1909 Series Quick Reference Guide... -
Page 15: Lpc-1709 Front And Rear Side
Quick Reference Guide 1.5.4 LPC-1709 Front and Rear side (Unit: mm) LPC-1009/1209/1509/1709/1909 Series Quick Reference Guide 15... -
Page 16: Lpc-1909 Front And Rear Side
LPC-1009/1209/1509/1709/1909 Series 1.5.5 LPC-1909 Front and Rear side (Unit: mm) 16 LPC-1009/1209/1509/1709/1909 Series Quick Reference Guide... -
Page 17: Hardware Configuration
Quick Reference Guide 2. Hardware Configuration For advanced information, please refer to: 1- EBM-BYT User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw LPC-1009/1209/1509/1709/1909 Series Quick Reference Guide 17... -
Page 18: Lpc-1009/1209/1509/1709/1909 Series Connector Mapping
LPC-1009/1209/1509/1709/1909 Series 2.1 LPC-1009/1209/1509/1709/1909 Series connector mapping 2.1.1 Serial port 1 connector (COM1) Signal PIN PIN Signal NDCDA#_485TXN NDSRA# NRXDA_485TXP NRTSA# NTXDA_485RXP NCTSA# NDTRA#_485RXN NRIA# 18 LPC-1009/1209/1509/1709/1909 Series Quick Reference Guide... -
Page 19: Serial Port 2 Connector (Com2)
Quick Reference Guide 2.1.2 Serial port 2 connector (COM2) RS-232 Signal PIN PIN Signal RS-422 Signal PIN PIN Signal TxD- RxD+ TxD+ RxD- RS-485 Signal PIN PIN Signal DATA- DATA+ LPC-1009/1209/1509/1709/1909 Series Quick Reference Guide 19... -
Page 20: Installing Hard Disk & Memory (For Lpc-1009/1209)
LPC-1009/1209/1509/1709/1909 Series 2.2 Installing Hard Disk & Memory (For LPC-1009/1209) Step 1. Unfasten 6 screws from the case. Then take off the top chassis. Step 2. Insert the SODIMM into the memory socket. 20 LPC-1009/1209/1509/1709/1909 Series Quick Reference Guide... - Page 21 Quick Reference Guide Step 3-1. SATA HDD Installation: By default, the SATA cables had been inserted to the according connectors. Just connect to SATA HDD with the two cables. Step 3-2. Insert the HDD into the Drive Bay. Remember to place the HDD down to the bottom exactly in order to screw the device tightly.
-
Page 22: Installing Hard Disk & Memory (For Lpc-1509/1709/1909)
LPC-1009/1209/1509/1709/1909 Series 2.3 Installing Hard Disk & Memory (For LPC-1509/1709/1909) Step 1. Memory Installation: Unfasten 6 screws from the case to take off the top chassis. Step 2. Insert the SODIMM into the memory socket. Step 3-1. HDD Installation: Unfasten 2 screws of the HDD bracket and take it off. 22 LPC-1009/1209/1509/1709/1909 Series Quick Reference Guide... - Page 23 Quick Reference Guide Step 3-2. Insert the HDD into the bracket and fasten 4 screws. Step 3-3. SATA HDD Installation: By default, the SATA cables had been inserted to the according connectors. Just connect to SATA HDD with the two cables. MPCIE connector LPC-1009/1209/1509/1709/1909 Series Quick Reference Guide 23...
- Page 24 LPC-1009/1209/1509/1709/1909 Series Step 3-4. Insert the HDD back and fasten 2 screws. Step 4. Place back the chassis with 6 screws locked. 24 LPC-1009/1209/1509/1709/1909 Series Quick Reference Guide...
