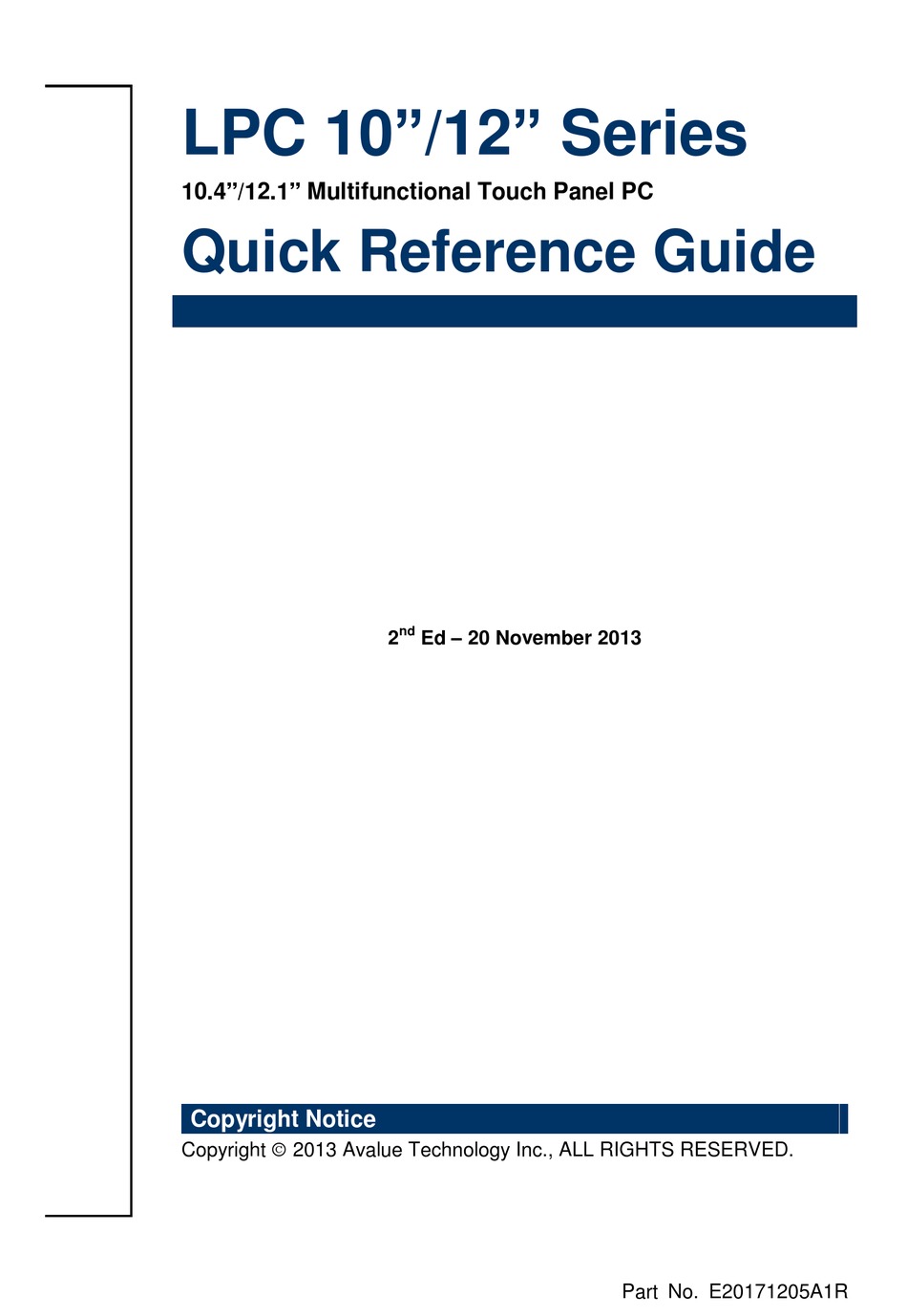

- Page 1 LPC 10”/12” Series 10.4”/12.1” Multifunctional Touch Panel PC Quick Reference Guide Ed – 20 November 2013 Copyright Notice Copyright 2013 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E20171205A1R...
-
Page 2: Getting Started
LPC 10”/12” Series 1. Getting Started 1.1 Safety Precautions Warning! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. -
Page 3: System Specifications
Quick Reference Guide 1.3 System Specifications Panel LPC-1205 LPC-1005 Model LCD size 12.1”, 4:3 10.4”, 4:3 Display type SVGA SVGA Resolution 800 x 600 1024 x 768 800 x 600 1024 x 768 Color 262K 262K 262K 16.2M 0.240mm(H) x 0.240mm(H) x 0.264mm(H) x 0.0685mm(H) x... - Page 4 LPC 10”/12” Series External I/O Ports COM Port 1 x RS-232 1 x RJ-45 Ethernet Port VGA / LCD Port 1 x DB-15 2 x USB 2.0 USB Port Line-out Audio Port 1 x PS/2 KB & MS Mouse & K/B Power Supply Unit Power Requirement +12V ~ +26V...
- Page 5 Quick Reference Guide Panel LPC-1203 LPC-1003 Model 12.1”, 4:3 10.4”, 4:3 LCD size Display type SVGA SVGA 800 x 600 1024 x 768 800 x 600 1024 x 768 Resolution 262K 262K 262K 262K Color 0.3075mm(H) x 0.240mm(H) x 0.264mm(H) x 0.20625mm(H) x Pixel pitch 0.3075mm(V)
- Page 6 LPC 10”/12” Series External I/O Ports COM Port 1 x RS-232/422/485 setting by BIOS*, optional extra 1 x RS-232/422/485 Dual RTL8111C Giga LAN Ethernet Port VGA / LCD Port 1 x DB-15 Line-out Audio Port 2 x USB 2.0 USB Port Power Supply Unit +12V ~ +26V Power Requirement...
- Page 7 Quick Reference Guide Panel LPC-1201 LPC-1001 Model 12.1”, 4:3 10.4”, 4:3 LCD size Display type SVGA SVGA 800 x 600 1024 x 768 800 x 600 1024 x 768 Resolution 262K 262K 262K 262K Color 0.3075mm(H) x 0.240mm(H) x 0.264mm(H) x 0.20625mm(H) x Pixel pitch 0.3075mm(V)
- Page 8 LPC 10”/12” Series External I/O Ports COM Port 1 x RS-232 Dual RTL8110SC Giga LAN Ethernet Port VGA / LCD Port 1 x DB-15 Line-out Audio Port 2 x USB 2.0 USB Port Power Supply Unit Power Input Power Output 12V/5A (60W) Environment &...
-
Page 9: System Overview
Quick Reference Guide 1.4 System Overview 1.4.1 Front View 1.4.2 Rear View POWER Connectors Label Function Note POWER Power on button CF Type I/II Socket with Ejector Optional for 2 COM port Serial port DB-9 male connector LINE OUT Line-out audio jack 2 x USB 2.0 connector Dock USB LAN1... - Page 10 LPC 10”/12” Series 1.5 System Dimensions 1.5.1 LPC-12 Front and Rear side 10 LPC 10”/12” Series Quick Reference Guide...
- Page 11 Quick Reference Guide 1.5.2 LPC-10 Front and Rear side (Unit: mm) LPC 10”/12” Series Quick Reference Guide 11...
- Page 12 LPC 10”/12” Series 1.5.3 Bottom and Rear Side M3*3 Note: The M3*3 screw holes are reserved for LPC Series Panel Mount Brackets. Improper usage may harm the mechanical parts. 12 LPC 10”/12” Series Quick Reference Guide...
- Page 13 Quick Reference Guide M4*4 Follow these steps to install the wall mounting arm: 1. Place the wall mounting arm onto the back of panel PC. 2. Insert the 4 screws into the holes and tighten. Line up the holes of the arm with the holes of panel PC. 3.
- Page 14 LPC 10”/12” Series 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw 14 LPC 10”/12” Series Quick Reference Guide...
-
Page 15: Bios Settings
Quick Reference Guide 2.1 BIOS settings 2.1.1 RS232/422/485 setting using BIOS 2.1.1.1 EBM-945GSE M/B The COM port setting of LPC-1003/1203, which applies for EBM-945GSE M/B, can be configured by BIOS. The path is shown as below. [BIOS Menu] [Integrated Peripherals] [Super IO Device] ... - Page 16 LPC 10”/12” Series 2.1.1.2 EBM-PNV M/B The COM port setting of LPC-1005/1205, which applies for EBM-PNV M/B, can be configured by BIOS. The path is shown as below. [BIOS Menu] [Advanced] [Super IO Configuration] [Serial Port 2 mode for RS-232/422/485] Note: To change COM port setting, it is necessary to adjust SW2, JP1, JP2 settings of EBM-PNV as well.
- Page 17 Quick Reference Guide 2.1.1.2.1 EBM-PNV board COM port setting Serial port 1/ 2 RS-232/ 422/ 485 mode select (JP1/ JP2) Serial port 1/ 2 - RS-232/ 422/ 485 mode select (SW2) LPC 10”/12” Series Quick Reference Guide 17...
- Page 18 LPC 10”/12” Series 2.1.2 PWM Backlight control setting for EBM-PNV The Backlight control setting which applies for EBM-PNV M/B can be configured by BIOS; the path is shown as below. [Chipset] [North Bridge Configuration] [Video Function Configuration] Panel 2 Back light mode: PWM mode Panel 2 Back light control: 100% Note: Panel 1 Back light mode : DC mode...
-
Page 19: Installing Hard Disk & Memory
Quick Reference Guide 2.2 Installing Hard Disk & Memory Step 1. Unfasten 6 screws from the case. Then take off the top chassis. Step 2. Insert the SODIMM into the memory socket. LPC 10”/12” Series Quick Reference Guide 19... - Page 20 LPC 10”/12” Series Step 3-1. HDD Installation: Insert the cable to connect the HDD and the SATA connecter. SATA Connector IDE Connector Step 3-2. SATA HDD Installation: By default, the SATA cables had been inserted to the according connectors. Just connect to SATA HDD with the two cables. 20 LPC 10”/12”...
- Page 21 Quick Reference Guide Step 3-3. Insert the HDD into the Drive Bay. Remember to place the HDD down to the bottom exactly in order to screw the device tightly. Step 4. Place back the chassis with 6 screws locked. LPC 10”/12” Series Quick Reference Guide 21...
