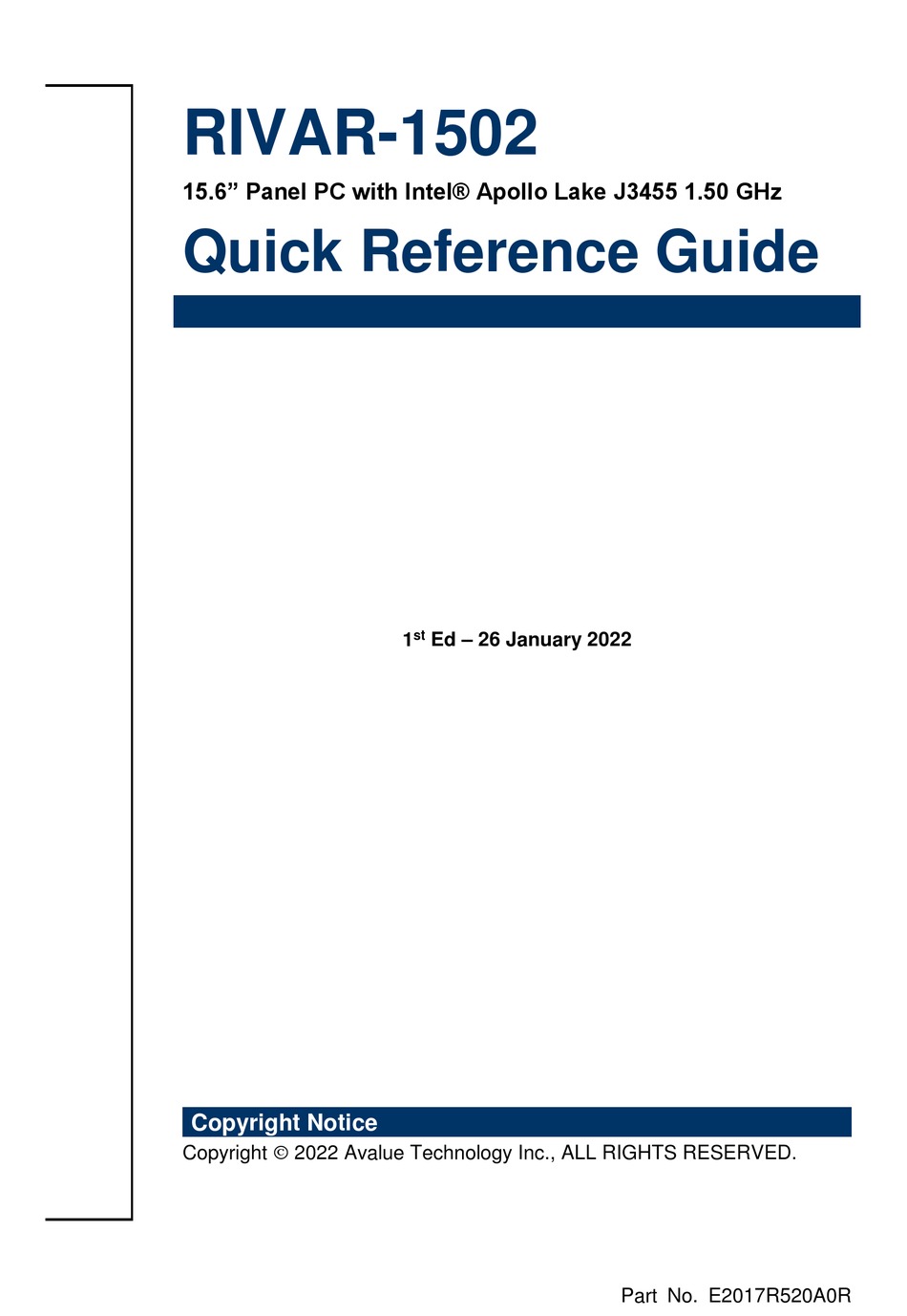

- Page 1 RIVAR-1502 15.6” Panel PC with Intel® Apollo Lake J3455 1.50 GHz Quick Reference Guide Ed – 26 January 2022 Copyright Notice Copyright 2022 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017R520A0R...
- Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 RIVAR-1502 Quick Reference Guide...
-
Page 3: Table Of Contents
1.4.1 Bottom View ..........................8 1.5 System Dimensions ....................9 Hardware Configuration ..................10 2.1 RIVAR-1502 connector mapping................11 2.1.1 Serial Port 1/2 connector (COM1/2) ..................11 2.2 Installing 2.5” HDD + NFC + Camera ..............12 RIVAR-1502 Quick Reference Guide... -
Page 4: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x RIVAR-1502 1 x Power Adapter 1 x Power Cord 4 RIVAR-1502 Quick Reference Guide... -
Page 5: System Specifications
Color Black, White OS Support Windows 10 IoT 64bit Reliability EMI Test CE/FCC Class B, VCCI Safety All design for this project have to comply with UL / CB / CCC Dust and Rain Front IP65 RIVAR-1502 Quick Reference Guide... - Page 6 Reference ISTA 2A, Method : IEC-60068-2-32 Test:Ed Test Ea : Drop Test Drop Test 1 Test phase : One corner, three edges, six faces 2 Test high : 96.5cm 3 Package weight : 3.5Kg 4 Test drawing 6 RIVAR-1502 Quick Reference Guide...
- Page 7 Quick Reference Guide Operating 0°C ~ 40°C Temperature Operating 40°C @ 95% Relative Humidity, Non-condensing Humidity Storage -10°C ~ 60°C Temperature Note: Specifications are subject to change without notice. RIVAR-1502 Quick Reference Guide...
-
Page 8: System Overview
1.4 System Overview 1.4.1 Bottom View Connectors Label Function Note RJ-45 Ethernet connector 1/2 LAN1/2 DC-IN DC Power-in connector HDMI HDMI connector 4 x USB 3.0 connector COM1/2 Serial Port 1/2 connector DB-9 male connector 8 RIVAR-1502 Quick Reference Guide... -
Page 9: System Dimensions
Quick Reference Guide 1.5 System Dimensions (Unit: mm) RIVAR-1502 Quick Reference Guide... -
Page 10: Hardware Configuration
RIVAR-1502 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw 10 RIVAR-1502 Quick Reference Guide... -
Page 11: Rivar-1502 Connector Mapping
Quick Reference Guide 2.1 RIVAR-1502 connector mapping 2.1.1 Serial Port 1/2 connector (COM1/2) Signal Signal DCDA# DSRA# RXDA RTSA# TXDA CTSA# DTRA# RIA# RIVAR-1502 Quick Reference Guide 11... -
Page 12: Installing 2.5" Hdd + Nfc + Camera
2.2 Installing 2.5” HDD + NFC + Camera Step 1. Remove 7 Screw Mylar from the panel. Step 2-1 Unfasten screw (“a”) from the panel. Step 2-2 Unfasten 6 screws (“b”) from the panel and take off the cover. 12 RIVAR-1502 Quick Reference Guide... - Page 13 Quick Reference Guide Step 3. Unfasten 9 screws from the panel and take off the cover. RIVAR-1502 Quick Reference Guide 13...
- Page 14 RIVAR-1502 Step 4. Insert NFC card into designated location. Step 5. Insert 2.5” HDD into designated location. Step 6. Insert Camera card into designated location. 14 RIVAR-1502 Quick Reference Guide...
