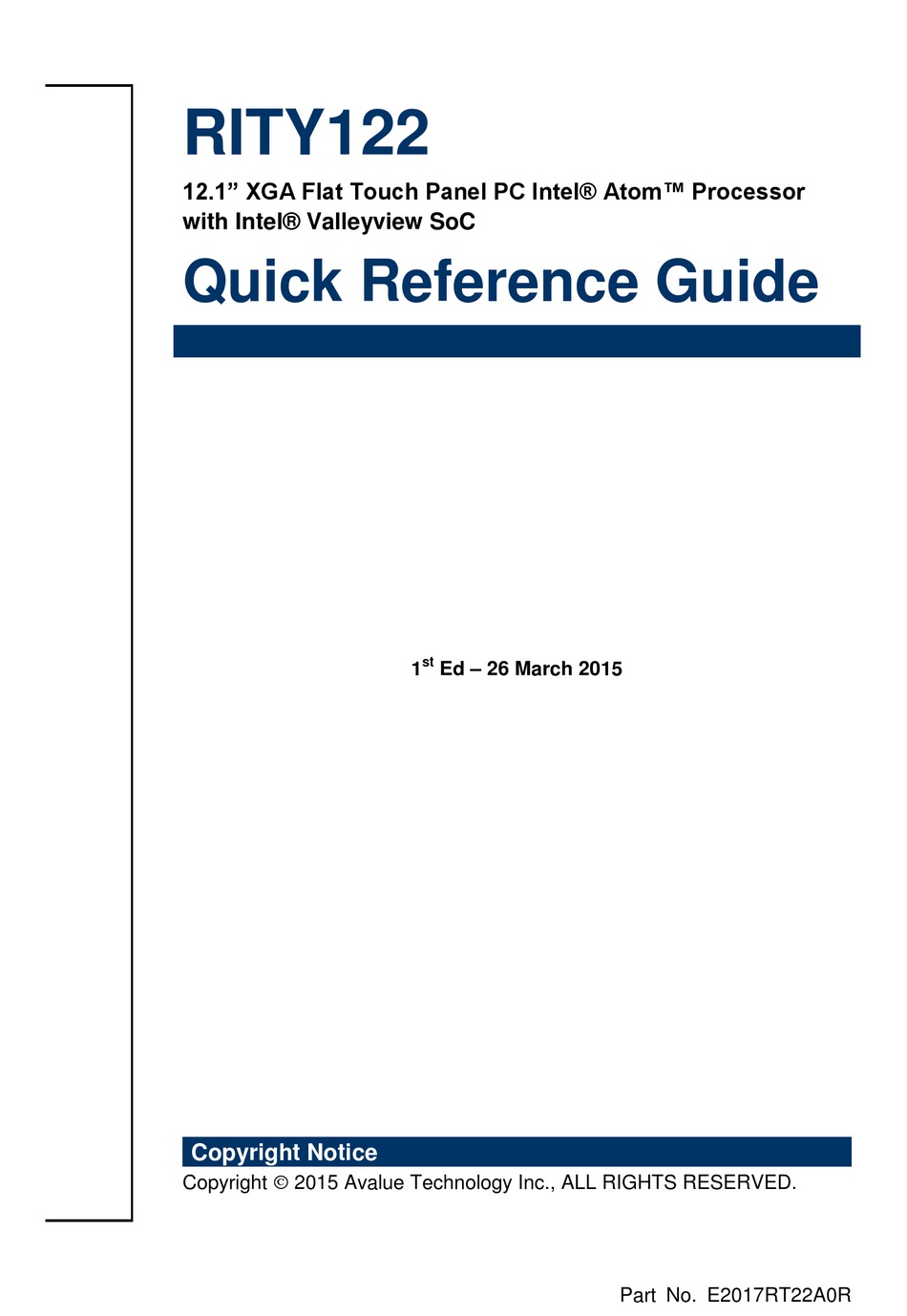

- Page 1 RITY122 12.1” XGA Flat Touch Panel PC Intel® Atom™ Processor with Intel® Valleyview SoC Quick Reference Guide Ed – 26 March 2015 Copyright Notice Copyright 2015 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017RT22A0R...
- Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 RITY122 Quick Reference Guide...
-
Page 3: Table Of Contents
Right View ..........................8 1.4.2 Bottom View ..........................8 1.5 System Dimensions ....................9 Hardware Configuration ..................10 2.1 RITY122 connector mapping .................. 11 2.1.1 External Serial Port 1 connector (COM1) ................11 2.1.2 External Serial Port 2 connector (COM2) ................12 2.1.3... -
Page 4: Getting Started
1.2 Packing List 1 x RITY Series Panel PC 1 x Power Adapter 1 x Power Cord 1 x Stand (option) 4 RITY122 Quick Reference Guide... -
Page 5: System Specifications
3 x USB 3.0 2 x RS-232/422/485 (BIOS) COM Port 1 x RS-232 Display Intel® Valleyview SoC integrated Graphics Chipset Supports dual display LVDS: Max. resolution 1024x768 @ 60Hz Resolution HDMI: Max. resolution 1920x1080 @ 60Hz RITY122 Quick Reference Guide... - Page 6 0% ~ 90% Relative Humidity, Non-condensing Humidity With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Vibration Test Random, 5 ~ 500Hz, 30min/axis Shock Test With SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms Certifications & Software Support Certification Information FCC Class B 6 RITY122 Quick Reference Guide...
- Page 7 Quick Reference Guide VCCI OS Information Win 8, Win 7, POS Ready, Linux Note: Specifications are subject to change without notice. RITY122 Quick Reference Guide...
-
Page 8: System Overview
Audio Line-out audio jack Cash Drawer connector 3 x USB 3.0 connector 3 x USB 2.0 connector 2 x RJ-45 Ethernet connector HDMI connector HDMI DC-IN DC Power-in connector DC Power-out connector DC 24V OUT 8 RITY122 Quick Reference Guide... -
Page 9: System Dimensions
Quick Reference Guide 1.5 System Dimensions (Unit: mm) RITY122 Quick Reference Guide... -
Page 10: Hardware Configuration
RITY122 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw 10 RITY122 Quick Reference Guide... -
Page 11: Rity122 Connector Mapping
External Serial Port 1 connector (COM1) In RS-232 Mode Signal Signal DCDA# DSRA# RXDA RTSA# TXDA CTSA# DTRA# RIA# In RS-422 Mode Signal Signal TxD1- TxD1+ RxD1+ RxD1- In RS-485 Mode Signal Signal DATA1- DATA1+ RITY122 Quick Reference Guide 11... -
Page 12: External Serial Port 2 Connector (Com2)
External Serial Port 2 connector (COM2) In RS-232 Mode Signal Signal DCDB# DSRB# RXDB RTSB# TXDB CTSB# DTRB# RIB# In RS-422 Mode Signal Signal TxD1- TxD1+ RxD1+ RxD1- In RS-485 Mode Signal Signal DATA1- DATA1+ 12 RITY122 Quick Reference Guide... -
Page 13: External Serial Port 3 Connector (Com3)
Quick Reference Guide 2.1.3 External Serial Port 3 connector (COM3) Signal Signal RITY122 Quick Reference Guide 13... -
Page 14: Installing Hard Disk & Memory
RITY122 2.2 Installing Hard Disk & Memory Step 1. Memory Installation: Unfasten 2 screws from the case. Then take off the top chassis. Step 2. Insert the SODIMM into the memory socket. 14 RITY122 Quick Reference Guide... - Page 15 Unfasten 2 screws from the case. Then take off the top chassis. Step 4. Insert the HDD into the bracket and fasten 4 screws. Step 5. Re-assemble your system back through previous steps to complete the installation. RITY122 Quick Reference Guide 15...
