Page 1: User Guide
FusionTREK ™ Voice, text & 4G LTE signal booster for your vehicle User Guide... -
Page 2: Table Of Contents
Table of Contents Thank you for purchasing SureCall’s FusionTrek cell phone signal booster kit. FusionTrek provides enhanced voice, text and 4G data signal for any vehicle. If you have any questions during setup, please reach out to our US-based experienced support technicians: •... -
Page 3: How It Works

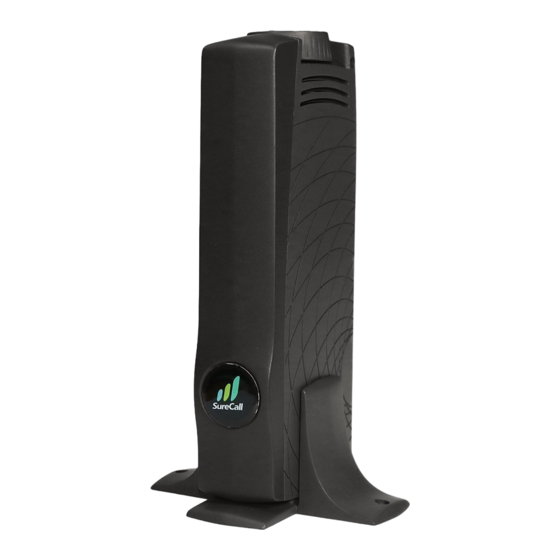

How It Works HOW IT WORKS The SureCall FusionTrek is a high-quality bidirectional booster that enhances cellular signals for vehicles. The FusionTrek works with two antennas: • An inside antenna that communicates with your cell phone. • An outside antenna that communicates with the cell tower. -
Page 4: Package Contents
Keep the carton and packing material to store the product in case you need to return it. Your signal booster package includes the following items: SureCall FusionTrek Inside window mount signal booster 2 mounting options Adjustable Window Suction-Mount Adhesive Base Mount... -
Page 5: Step 1: Mount Booster On/Near Rear Window
For best performance, be sure the booster is mounted vertically with the SureCall logo facing the front of the vehicle. Ensure that the antenna has at least a 12-inch radius clear of obstruc- tions and other radiating elements, such as a radio antenna. -
Page 6: Step 2. Mount Cradle Antenna & Connect Components
Cable to booster Metal plate IMPORTANT: The antenna must be located at least 8 inches from all persons. The FCC requires to never use the cell phone in the cradle next to your ear. SureCall | www.surecall.com | 1-888-365-6283 | support@surecall.com... -
Page 7: Step 3. Connect To Power
Cable to booster WARNING: The booster is rated for 5-15V input voltage. DO NOT use the booster with a higher voltage power supply. This can damage the booster and/or cause personal injury. SureCall | www.surecall.com | 1-888-365-6283 | support@surecall.com... -
Page 8: Troubleshooting
Verify that cable connections are tightly fitted to the booster. installation, signal has Note: Bars are not always a reliable measure of signal. The best way to confirm signal coverage is the ability to not Improved place and hold a call. SureCall | www.surecall.com | 1-888-365-6283 | support@surecall.com... -
Page 9: Specifications
7.5 x 3.5 x 1.16 in Weight: .62 lbs (9.92 oz) Certification: FCC ID: RSNF-TREK IC: 7784A-FTREK Note: The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met. SureCall | www.surecall.com | 1-888-365-6283 | support@surecall.com... -
Page 10: Antenna Kitting Information
3.7dB 5.5dB \6.2dB *All equivalent antennas and cables are suitable for use with the FusionTrek As above information. Remark: Lower gain antenna can also be used. * Warning: Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules. Changes or modifications not expressly approved by SureCall could void the user’s authority to operate the equipment. - Page 11 -1.2 19.9 21.1 Downlink: 2110-2155 -18.4 20.7 -20.7 21.5 Downlink: 1930-1995 -19.8 22.0 -20.8 21.6 Downlink: 869-894 -19.6 21.1 -19.4 20.8 Downlink: 728-746 -17.5 21.2 -18.4 20.8 Downlink: 746-757 -16.9 18.8 -18.0 18.8 SureCall | www.surecall.com | 1-888-365-6283 | support@surecall.com...
-
Page 12: Consumer Guidelines
à la sortie du dispositif. 1 For details on the requirements specified in ISED CPC-2-1-05, visit: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html 2 Pour plus de détails sur les exigences ISED CPC-2-1-05, reportez-vous au site: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html SureCall | www.surecall.com | 1-888-365-6283 | support@surecall.com... -
Page 13: Three-Year Product Warranty
Buyers may obtain an RMA number for warranty returns by calling the SureCall Return Department toll-free at 1-888-365-6283. Any returns received by SureCall without an RMA number clearly printed on the outside of the shipping container will be returned to sender. In order to receive full credit for signal boosters, all accessories originally included in the signal booster box must be returned with the signal booster. - Page 14 48346 Milmont Drive Fremont, California 94538, USA 888.365.6283 www.surecall.com...
