SureCall FusionTREK Quick Setup Manual

SureCall FusionTREK Quick Setup Manual

Hide thumbs Also See for FusionTREK:

Advertisement

Available languages

Available languages

Quick Links

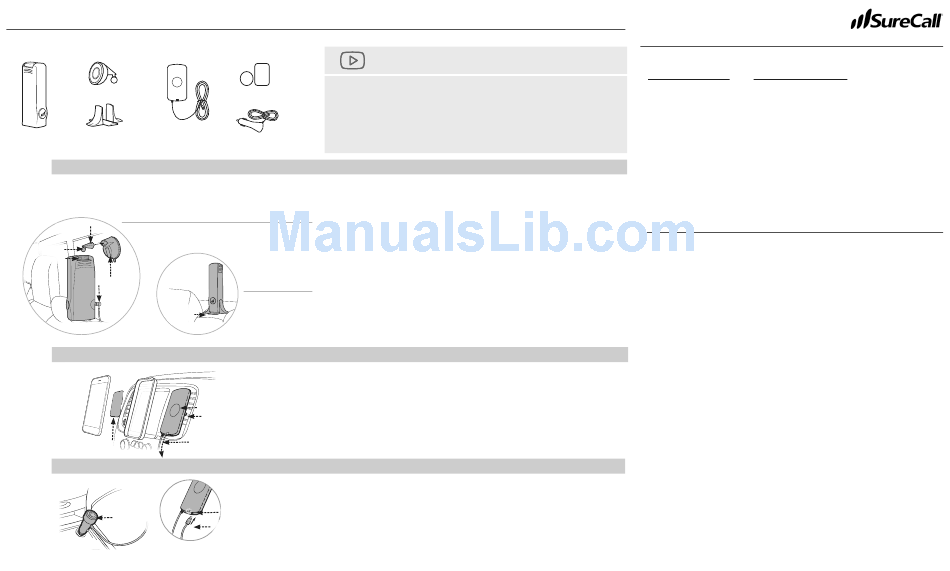

Quick Setup Guide
CONTENTS
Adjustable Window
Suction-Mount
Magnetic Cradle
FusionTrek
Adhesive Base Mount
Antenna

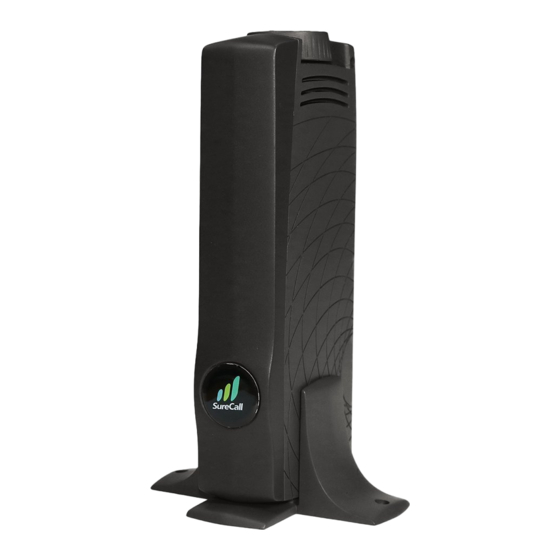

Booster
STEP 1.
MOUNT BOOSTER ON/NEAR REAR WINDOW
Mount booster in the center of your inside back window using one of the two options below. We suggest using the adjustable window mount option for vertical or near-vertical windows and the
adhesive base mount for windows that are more angled, like sedans. For both installations you need to place the booster as close to the rear window as possible. For best performance, be sure
the booster is mounted vertically with the SureCall logo facing the front of the vehicle.
Release
Option a.
Ball Joint
Nut
Lever
Connector
Adhesive
base
STEP 2.
MOUNT CRADLE ANTENNA & CONNECT COMPONENTS
Metal plate
STEP 3.
CONNECT TO POWER
Power
switch
SC-FusionTrek / SC-FusionTrekCA
Rev. 2 21518
Have questions?
Metal Plates
We have answers! Reach out to our US-based support team:
Call:
1-888-365-6283
Email: support@surecall.com
Visit:
www.surecall.com/support to download the user manual and see
DC Power
» Detailed instructions » Troubleshooting » Complete warranty information
Adapter
a. Installation Using Adjustable Window Suction Mount
1. Remove the back part of the window suction mount bracket by pressing on the release.
2. Identify a high and centered location on the back window and clean location.
3. Lift the lever on the adjustable window mount, place firmly onto the window and press down
on the lever to lock in place.
4. Press the booster back into the mounted adjustable window mount bracket.
b. Installation Using Adhesive Base
Option b.
1. Find a flat and horizontal surface near the rear window and the use alcohol pad to clean
the mounting location.
2. Remove the backing from the adhesive strip and press the booster down firmly on to the
mounting location.
1. Place the magnetic cradle antenna on an air-vent, in your cup-holder or center-console.
2. Plug the barrel connector into the cradle antenna and route the cable from the cradle antenna
to the booster. Screw the cable into the connector on the back of the booster.
Magnetic plate
3. We recommend running the cable under the floor-mats or beneath the car's molding for a
Vent clip
professional look.
4. Adhere one of the magnetic stickers to the back of your phone or phone-case and place your
phone on the magnetic cradle antenna.
Cable to booster
1. Plug the DC Power Adapter into power port of your car.
2. Switch the Power Switch to On and a red light will illuminate on the adapter.
3. The cradle antenna will illuminate a green light when it is receiving power.
Power LED
Note: Your phone will only receive the enhanced signal when it is placed on the cradle antenna.
Power connector
SureCall FusionTREK
Watch the quick install video https://youtu.be/_k20SwLBaQg
3-Year Warranty
Thank you for your SureCall purchase. Please take the time to register your new product
at www.surecall.com/activate (US) or www.surecall.com/CA/activate (Canada).
SureCall warranties its products for three years from the date of purchase against defects in
workmanship and/or materials.
Products returned by customers must be in their original, un-modified condition, shipped at the
customer's expense in the original or protective packaging with proof-of-purchase documentation
enclosed and a Return Merchandise Authorization (RMA) number printed clearly on the outside of
the shipping container. RMA numbers are obtained by contacting Customer Support.
This warranty does not apply to any product determined by SureCall to have been subjected to
misuse, abuse, neglect, or mishandling that alters or damages the product's physical or electronic
properties.
For complete warranty text, including limitations and liability, see the FusionTrek full user manual,
available online.

Specifications

Uplink Frequency Range (MHz): 698-716 / 776 -787 / 824-849 / 1850 -1915 / 1710 -1755 (G Block Included)
Downlink Frequency Range (MHz):28-746 / 746 -757 / 869-894 / 1930 -1995 / 2110 -2155 (G Block Included)
Supported Standards:
CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards
Maximum Output Power:
1 Watt EIRP
Maximum Gain:
23 dB
Input/Output Impedance:
50 Ω
DC Power:
8-15VDC
Cable:
RG-174 (15 ft)
FusionTrek (US):
FCC ID: RSNF-TREK
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's
consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to
the use of this device on their network. If you are unsure, contact your provider.
In Canada, BEFORE USE you must meet all requirements set out in ISED CPC-2-1-05.
You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas
MUST be installed at least 20 cm (8 inches) from (i.e., MUST NOT be installed within 20 cm of) any person.
You MUST cease operating this device immediately if requested by the FCC (or ISED in Canada) or licensed
wireless service provider.
WARNING: E911 location information may not be provided or may be inaccurate for calls served by using this
device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Important: The antenna must be located at least 8 inches from all persons. The FCC requires to never
use the cell phone in the cradle next to your ear.
888.365.6283 / +1.510.770.0469
VSWR:
≤2.0
Gain Adjustment:
20 dB (Automatic)
Noise Figure:
≤ 7 dB
Power Consumption:
< 12W
RF Connectors:
SMA-Female
FusionTrek CA (Canada)
IC: 7784A-FTREK
|
www.surecall.com
|
Support@surecall.com
