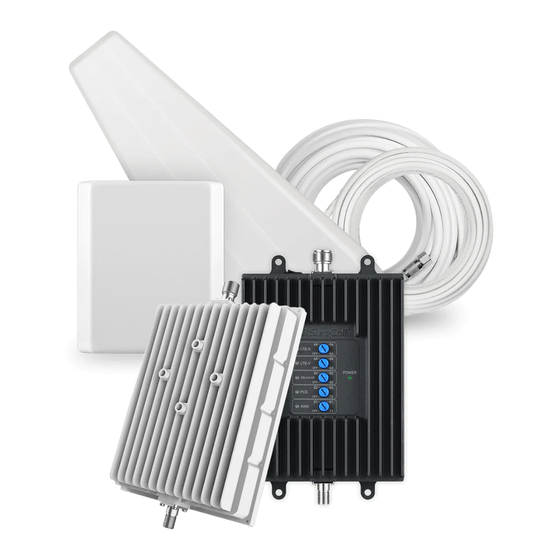

- Page 1 Fusion4Home-Max ™ 4G Home Signal Booster Kit User Guide...
-
Page 2: Table Of Contents
3,000 square feet. The Fusion4Home-Max provides enhanced cellular signals for multi-carrier 2G, 3G and 4G voice and data reception. If you have any questions while assembling this kit please contact tech support at 1-855-846-2654 or email us at: sales@signalbooster.com... -
Page 3: How It Works
Outside Antenna Coaxial Cable Inside Antenna Signal Booster This device may be operated ONLY in a fixed location for in-building use SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com https://www.signalbooster.com | 1-855-846-2654 | sales@signalbooster.com... -
Page 4: Package Contents
Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules. Please contact the FCC for details: 1-888-CALL- FCC. Changes or modifications not expressly approved by SureCall could void the user’s authority to operate the equipment. https://www.signalbooster.com | 1-855-846-2654 | sales@signalbooster.com... - Page 5 SC-248W Note: Due to the recent change of our company name from Cellphone-Mate (CM) to SureCall (SC) we have changed the prefix on all of our antennas, cables and accessories from CM to SC-. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
-
Page 6: Installation Overview
Before You Install Step 1. Make sure you have positioned the booster close enough to an existing electrical outlet. Step 2. Make sure you have sufficient cable length between proposed outside antenna location and booster connector. Step 3 Make sure you have sufficient cable length between proposed inside antenna location and booster connector. -
Page 7: Installing Your Hardware
SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com https://www.signalbooster.com | 1-855-846-2654 | sales@signalbooster.com... - Page 8 Installing Your Hardware Step 2. Install the Outside Antenna 1. Outside omni antennas receive and send signals in a 360º radius. Yagi, or directional antennas work best when facing the direction of cellular phone towers. Mount the outside antenna as high as possible. If you are installing a Yagi antenna set it up facing the cellular tower in the area where you located the best signal source (see step 1 on the previous page).
- Page 9 Step 5: In this order, place washer, lock washer and nut on each screw and tighten until secure. When tightening screw, sleeve will expand to secure plate. Screw antenna securely back onto horizontal plate. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com https://www.signalbooster.com | 1-855-846-2654 | sales@signalbooster.com...
- Page 10 Installing Your Hardware Installing the SC-231W Yagi Antenna: Step 1: Install U-Bolt on pole Step 2: Slide pipe clamp over U-Bolt with the flat side facing away from the pipe. Step 3: Slide antenna bracket onto U-Bolt in desired location. Step 4: Install flat washer, split washer and nut, hand tighten Note: Antenna may be installed on a variety of pipe angles, insure that the antenna is pointing in the direction of the closest cellular tower and is vertical with the drip hole at the bottom.
- Page 11 Installing Your Hardware Installing the SC-121W Right Angle Antenna: Connect the SC-121W antenna by firmly screwing it onto the inside port of the Fusion4Home-Max Booster. For best results, the antenna should be mounted in an upright position. The right angle antenna cable connects directly to the amplifier port labeled “Inside”.
- Page 12 8. Turn the booster’s power switch on. Booster Hardware The following image shows the key hardware components on the booster. Refer to this image as you install your Fusion4Home-Max kit components. N connector to inside antenna Power Switch Connector to Inside Antenna...
- Page 13 3. Be sure your signal booster’s dB gain is turned up to maximum gain on each dial. WARNING: Do not adjust the uplink and downlink dB attenuation settings more than 20dB. This could cause the booster to shut down SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com https://www.signalbooster.com | 1-855-846-2654 | sales@signalbooster.com...
-
Page 14: Troubleshooting
AC outlet is working and is not controlled by a wall switch that can cut power to the outlet. If the green POWER LED on the signal booster is OFF, return the power supply to SureCall. Contact tech support to receive an RMA at:... -
Page 15: Specification
F- Female (both ends ) / One F-Female and One N-Female RF Connectors: Power Consumption: <15W Operation Temperature: -4ºF to +158ºF Dimensions: 7-7/8” X 5” X 1-3/16” Weight: 2 LB 3 oz 7784A-FUSION4HM SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com https://www.signalbooster.com | 1-855-846-2654 | sales@signalbooster.com... -
Page 16: Kitting Information
*All equivalent antennas and cables are suitable for use with the Fusion4Home-Max booster. Note: Due to the recent change of our company name from Cellphone-Mate (CM) to SureCall (SC) we have changed the prefix on all of our antennas, cables and accessories from CM to SC-. -
Page 17: Warranty
SureCall warrants to the Buyer that each of its products, when shipped, will be free from defects in material and workman- ship, and will perform in full accordance with applicable specifications. The limit of liability under this warranty is, at SureCall’s... -
Page 18: Safety Information
BY CELLPHONE-MATE, INC. FOR THE UNIT OF PRODUCT OR SERVICE FURNISHED OR TO BE FURNISHED, AS THE CASE MAY BE, WHICH IS THE SUBJECT OF CLAIM OR DISPUTE. IN NO EVENT SHALL SURECALL BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, HOWSOEVER CAUSED. - Page 19 7800 Harwin Drive 855.846.2654 https://www.signalbooster.com 19 19 SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com https://www.signalbooster.com | 1-855-846-2654 | sales@signalbooster.com...
