Operator's Manual
MACH 4S
Label Printer
Made in Germany

Advertisement

Table of Contents
loading

Summary of Contents for CAB MACH 4.3S/200B

  • Page 1 Operator's Manual MACH 4S Label Printer Made in Germany...
  • Page 2 Trademark Windows is a registered trademark of the Microsoft Corporation. Editor Regarding questions or comments please contact cab Produk- ttechnik GmbH & Co. KG. Topicality Due to the constant further development of our products discrepancies between documentation and product can occur.
  • Page 3: Table Of Contents

    Table of Contents Introduction ............................4 Instructions ............................... 4 Intended Use ............................4 Safety Instructions ............................ 5 Environment ............................. 5 Installation .............................. 6 Device Overview ............................6 Unpacking and Setting-up the Printer ...................... 7 Connecting the Device ..........................7 2.3.1 Connecting to the Power Supply ......................
  • Page 4: Introduction

    Introduction Instructions Important information and instructions in this documentation are designated as follows: Danger! Draws attention to an exceptionally great, imminent danger to your health or life due to hazardous voltages. Danger! Draws attention to a danger with high risk which, if not avoided, may result in death or serious injury. Warning! Draws attention to a danger with medium risk which, if not avoided, may result in death or serious injury.
  • Page 5: Safety Instructions

    Introduction Safety Instructions The device is configured for voltages of 100 to 240 V AC. It only has to be plugged into a grounded socket. • • Only connect the device to other devices which have a protective low voltage. • Switch off all affected devices (computer, printer, accessories) before connecting or disconnecting. •...
  • Page 6: Installation

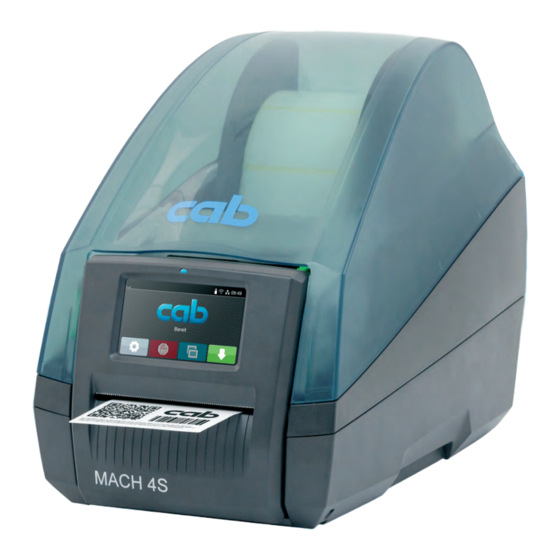

    Installation Device Overview 1 Cover 2 Margin stop 3 Roll retainer 4 Print module 5 LED "Power on" 6 Control panel 7 Touchscreen display 8 Label outlet Figure 1 Overview 9 Ribbon unwinder core 10 Ribbon rewinder core 11 Release button 12 Ribbon deflection 13 Printhead 14 Print roller...
  • Page 7: Unpacking And Setting-Up The Printer

    Installation Unpacking and Setting-up the Printer  Lift the label printer out of the box.  Check label printer for damage which may have occurred during transport.  Check delivery for completeness. Contents of delivery: • Label printer • Power cable •...
  • Page 8: Touchscreen Display

    Touchscreen Display The user can control the operation of the printer with the control panel, for example: • Issuing, interrupting, continuing and canceling print jobs Setting printing parameters, e.g. heat level of the printhead, print speed, interface configuration, language and • time of day ( Configuration Manual) • Control stand-alone operations with the memory module ( Configuration Manual) Update the firmware ( Configuration Manual) •...
  • Page 9 Touchscreen Display With special software or hardware configurations additional symbols appear on the start screen: Printing on demand Printing on demand Direct cut without print job within print job at devices with cutter Figure 5 Optional symbols on the start screen Release printing of a single label within a Release a direct cut without media feed print job including peeling-off, cutting...
  • Page 10: Navigation In The Menu

    Touchscreen Display Navigation in the Menu Start level Selection level Parameter/function level Figure 7 Menu levels  To open the menu select on the start screen.  Select a theme in the selection level. Several themes have substructures again with selection levels. To return from the current level to the upper one select .
  • Page 11: Loading Material

    Loading Material Loading Label Rolls 4.1.1 Adjusting the Roll Retainer Label rolls are supplied with different diameters. The roll retainer can hold label rolls with a core diameter of 38 - 75 mm, or 76 mm with the detachable adapters fitted. Figure 9 Adapting the roll retainer Dismounting the adapter ...
  • Page 12: Loading The Label Roll

    Loading Material 4.1.2 Loading the Label Roll Figure 10 Loading the label roll  Open the cover and remove the roll retainer (3) with the margin stops (1,5) from the printer.  Press the lever (6) and remove the margin stop (5) from the roll retainer (3). ...
  • Page 13: Loading Fanfold Labels

    Loading Material Loading Fanfold Media Figure 12 Loading fanfold labels  Stack the labels (2) behind the printer. Ensure that the labels on the strip are facing upwards.  Open the cover and unlock and lower the control panel.  Feed the media underneath the cover (1) into the printer. ...
  • Page 14: Loading Labels For Peel-Off Mode

    Loading Material Loading Labels for Peel-off Mode Attention! Place the printer so that the liner can run down without hindrance. A label jam can cause malfunctions in printing operations. Pressure roller in parking position Pressure roller in working position Figure 13 Activation of the pressure roller ...
  • Page 15: Selecting And Positioning Label Sensors

    Loading Material Selecting and Positioning Label Sensors 4.4.1 Gap Sensors Figure 15 Selecting the gap sensor The printer has two gap sensors (1, 2) to detect the labels front edge as well as the end of the material, which can be used alternatively.
  • Page 16: Loading Transfer Ribbon

    Loading Material Loading Transfer Ribbon Note!  Do not insert transfer ribbon for direct thermal printing! Attention! Risk of contamination!  When inserting the transfer ribbon ensure that the coated side faces the labels, otherwise the printhead will be dirtied. Figure 17 Removing the ribbon unwinder core ...
  • Page 17: Setting The Feed Path Of The Transfer Ribbon

    Loading Material Figure 19 Loading transfer ribbon  Remove and adjust the ribbon rewinder core (8) in the same manner.  Slide an empty cardboard roll (9) onto the core (8) against the lever.  Press the rectangular end of the core against the spring of the tensioning wheel (10) and slide the left end into the slot (7) until it snaps in.
  • Page 18: Printing Operation

    Printing Operation Attention! Printhead damage caused by improper handling!  Do not touch the bottom side of the printhead with fingers or sharp objects.  Ensure that the labels are clean.  Ensure that the label surfaces are smooth. Rough labels act like emery paper and reduce the service life of the printhead.
  • Page 19: Cleaning

    Cleaning Cleaning Information Danger! Risk of death via electrocution!  Disconnect the printer from the power supply before performing any maintenance tasks. The label printer requires very little maintenance. It is important to clean the thermal printhead regularly. This guarantees a consistently well printed image and plays a major part in preventing premature wear of the printhead.
  • Page 20: Cleaning The Cutter

    Cleaning Cleaning the Cutter Note! When cutting through the label material remains of adhesive may accumulate on the blades. If operating in backfeed mode, such remains of adhesive may be deposited on the drive roller as well.  Clean the drive roller and the cutter blades often. Figure 21 Cleaning the cutter ...
  • Page 21: Fault Correction

    Fault Correction Error Display The appearance of an error will be shown on the display: Figure 22 Error display The error treatment is dependent on the error type  7.2 on page 21. The display offers the following possibilities to continue after an error occurred: Repeat The print job will be continued after clearing the error cause.
  • Page 22 Fault Correction Error message Cause Remedy No label size The size of the label is not defined in the Check programming. programming. Out of paper Out of label roll Load labels. Error in the paper feed Check paper feed. Out of ribbon Out of transfer ribbon Insert new transfer ribbon. Transfer ribbon melted during printing Cancel current print job.
  • Page 23: Problem Solution

    Fault Correction Problem Solution Problem Cause Remedy Transfer ribbon deflection not adjusted Adjust the transfer ribbon deflection. Transfer ribbon creases  4.6 on page 17 Transfer ribbon too wide Use a transfer ribbon slightly wider than the width of label. Print image has smears or Printhead is dirty Clean the printhead ...
  • Page 24: Media

    Media Media Dimensions Labels Endless material Figure 23 Label / endless material dimensions Dim. Designation Dim. in mm Label width 6 - 116 Label height 5 - 2000 20 - 200 in peel-off mode Tear-off length > 30 Cut length >...
  • Page 25: Device Dimensions

    Media Device Dimensions Gap sensors Reflective sensor Printhead Peel-off edge Cut edge Tear bar Figure 24 Device dimensions Dim. Designation Dim. in mm Distance printhead - peel-off edge 13,2 Distance printhead - cut edge 17,5 Distance printhead - tear bar 24,0 Print width with printhead 4.3/200 104,0...
  • Page 26: Reflex Mark Dimensions

    Media Reflex Mark Dimensions Labels with reflex marks Endless material with reflex marks virtual label front edge reflex mark Reflex mark dimensions Figure 25 Dim. Designation Dim. in mm Label distance > 2 Width of reflex mark > 5 Height of reflex mark 3 - 10 Distance mark - middle of paper track for reflective sensor recognition -56 up to +10 Distance virtual label front edge - actual label front edge 0 up to A / recomm.: 0 ...
  • Page 27: Cut-Out Mark Dimensions

    Media Cut-out Mark Dimensions Labels with cut-out marks Endless material with cut-out marks for marginal cut-out marks minimum liner thickness 0,06 mm Figure 26 Cut-out mark dimensions Dim. Designation Dim. in mm Label distance > 2 Width of cut-out mark >...
  • Page 28: Licenses

    Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment EU Declaration of Conformity https://www.cab.de/media/pushfile.cfm?file=2980  NOTE : This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 29: Index

    Index Adapter Peel-off mode ........18 Dismounting ........ 11 Loading labels ......14 Mounting ........11 Power supply ........5 Pressure roller ........14 Printhead Cleaning Cleaning ........19 Cutter ..........20 Damage ........18 Label sensors ......19 Print roller Printhead ........19 Cleaning ........19 Print roller ........19 Problem solution .......23 Connecting .........7 Contents of delivery ......7...
  • Page 30 This page was left blank intentionally.
