Motion control system

System configuration

Stepping motor
Servo motor
Driver unit Conversion cable

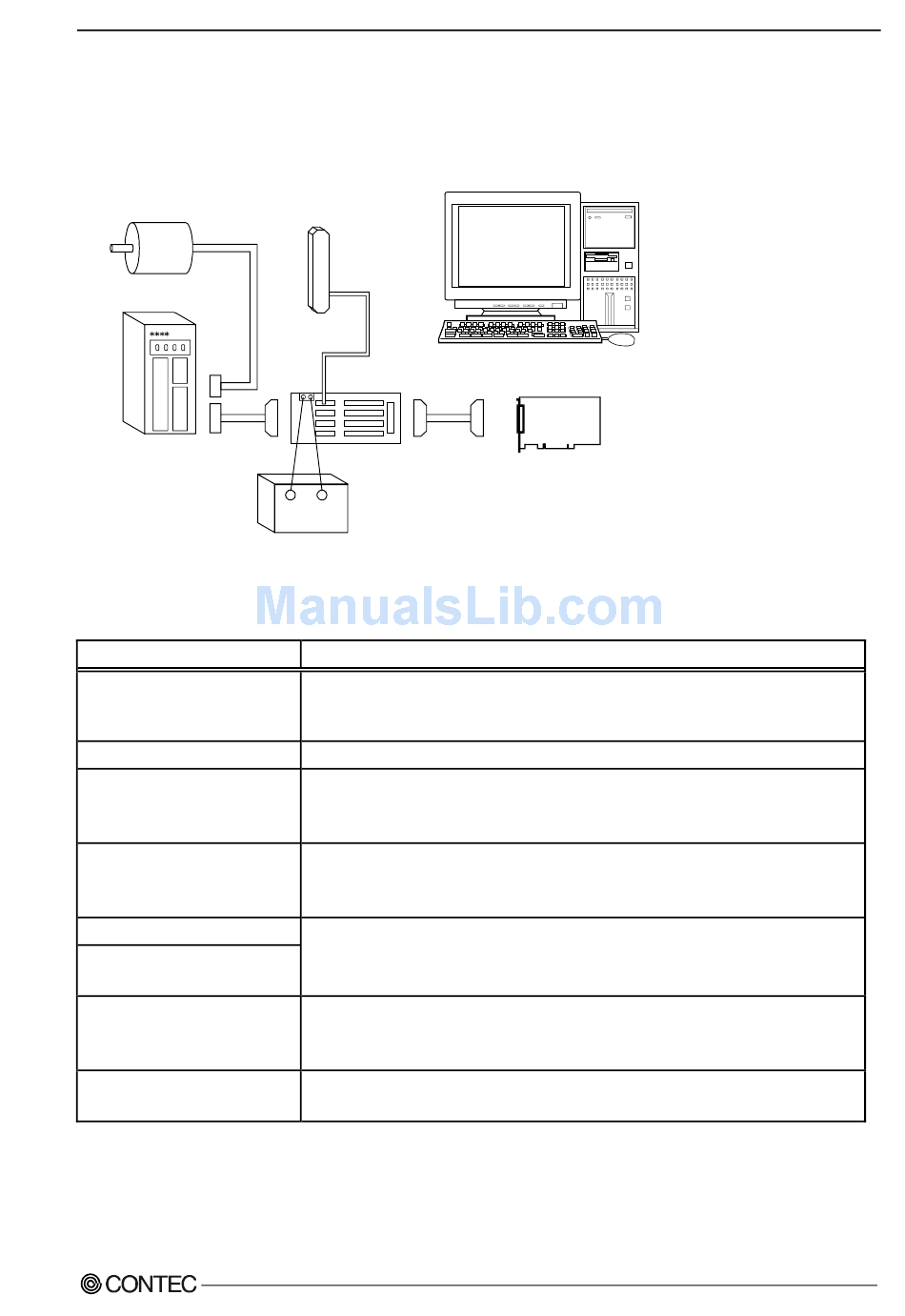

Figure 4.7. System configuration
Table 4.1. Component features
Item
SMC-4DL-PCI
SMC-8DL-PCI
(Main board)
PCB-100PS (Option)
CCB-SMC2 (Option)
Conversion cable (User)
Driver unit (Motor maker)
Stepping motor Servo motor
(Motor maker)
Limit sensor (Switch maker)
DC Power supply
(Power supply maker)
SMC-4DL-PCI, SMC-8DL-PCI
Limit sensor
CCB-SMC2 PCB-100PS
+12V -
+24VDC
DC Power Supply
When installed on the PC, this board generates pulses required for position control.
This cable connects the board to the CCB-SMC2.
This screw terminal is used to efficiently connect the devices (the board, driver unit,
DC power supply, limit sensor) required for position control. The screw terminal
can connect a four-axis motion control system alone.
The shape of the control connector of each driver unit is largely different depending
on the manufacturer and type. A conversion cable must be prepared to connect each
driver unit to the CCB-SMC2.
Motor and driver unit to be subject to motion control.
Available in various types by motor capacity, power-supply voltage, and motor
shape. Select the ones that best fit your needs.
This sensor is installed at the forward/backward limit and origin detection
positions. When a table is used in the system, the sensor is bundled with the table.
For a self-made system, use commercially available switches.
Power supply to the CCB-SMC2. Use a 12 - 24-VDC power supply.
SMC-4DL-PCI
SMC-8DL-PCI
Description
4. Functions
