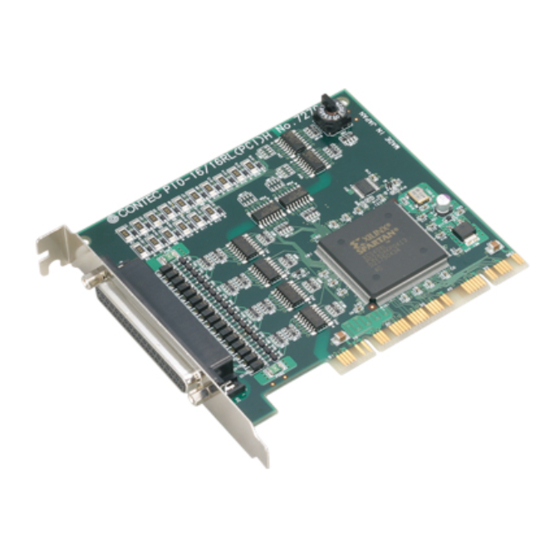

Contec PIO-16/16RL(PCI)H User Manual

Reverse-common digital i/o board with opto-isolation
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PC-HELPER
Reverse-Common Digital I/O Board
with Opto-Isolation
PIO-16/16RL(PCI)H
User's Guide
CONTEC CO.,LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIO-16/16RL(PCI)H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Contec PIO-16/16RL(PCI)H

Summary of Contents for Contec PIO-16/16RL(PCI)H

  • Page 1 PC-HELPER Reverse-Common Digital I/O Board with Opto-Isolation PIO-16/16RL(PCI)H User’s Guide CONTEC CO.,LTD.
  • Page 2 Check Your Package Thank you for purchasing the CONTEC product. The product consists of the items listed below. Check, with the following list, that your package is complete. If you discover damaged or missing items, contact your retailer. Product Configuration List - Board [PIO-16/16RL(PCI)H] …1...
  • Page 3 No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this document. The information in this document is subject to change without notice.
  • Page 4 Select API-DIO(WDM) ......................13 Select API-DIO(98/PC) ......................14 Step 2 Setting the Hardware ......................16 Parts of the Board and Factory Defaults ................... 16 Setting the Board ID ........................17 Plugging the Board ........................18 Step 3 Installing the Hardware ......................19 PIO-16/16RL(PCI)H...
  • Page 5 Interrupt Control Function ........................ 43 Disabling/enabling Interrupts ....................43 Selecting the Edge of input signals, at which to generate an iterrupt ........43 Clearing the Interrupt Status and Interrupt Signal ..............43 ABOUT SOFTWARE CD-ROM Directory Structure ......................45 PIO-16/16RL(PCI)H...
  • Page 6 About Software for Linux ......................... 51 Driver Software Install Procedure ..................... 51 Accessing the Help File ......................52 Using Sample Programs......................52 Uninstalling the driver ....................... 52 ABOUT HARDWARE For detailed technical information ....................53 Hardware specification ........................53 Block Diagram ..........................55 PIO-16/16RL(PCI)H...
  • Page 7 PIO-16/16RL(PCI)H...

  • Page 8: Before Using The Product

    The board is a reverse-common typed and insurated digital input/output board and can input and output digital signals at 12 - 24 VDC. PIO-16/16RL(PCI)H can input and output up to 16 channels. This product uses opto- coupler isolated input (ready to accept current source output signals) for input and opto- coupler isolated open-collector output (current source type) for output.

  • Page 9: Support Software

    Visual Basic, Visual C++, Visual C#, Delphi, C++ Builder You can download the updated version from the CONTEC’s Web site (http://www.contec.com/apipac/). For more details on the supported OS, applicable language and new information, please visit the CONTEC’s Web site. Linux version of digital I/O driver API-DIO(LNX)

  • Page 10: Cable & Connector (Option)

    Screw Terminal (M2.5 x 37P) DTP-4C *1 *1 A PCB37P or PCB37PS optional cable is required separately. *2 "Spring-up" type terminal is used to prevent terminal screws from falling off. * Check the CONTEC’s Web site for more information on these options. PIO-16/16RL(PCI)H...

  • Page 11: Customer Support

    You can download updated driver software and differential files as well as sample programs available in several languages. Note! For product information Contact your retailer if you have any technical question about a CONTEC product or need its price, delivery time, or estimate information. Limited Three-Years Warranty CONTEC Interface products are warranted by CONTEC CO., LTD.

  • Page 12: Safety Precautions

    WARNING indicates a potentially hazardous situation which, if not avoided, could WARNING result in death or serious injury. CAUTION indicates a potentially hazardous situation which, if not avoided, may CAUTION result in minor or moderate injury or in property damage. PIO-16/16RL(PCI)H...

  • Page 13: Handling Precautions

    Even when using the product continuously, be sure to read the manual and understand the contents. Do not modify the product. CONTEC will bear no responsibility for any problems, etc., resulting from modifying this product. Regardless of the foregoing statements, CONTEC is not liable for any damages whatsoever (including damages for loss of business profits) arising out of the use or inability to use this CONTEC product or the information contained herein.

  • Page 14: Environment

    (3) Store the package at room temperature at a place free from direct sunlight, moisture, shock, vibration, magnetism, and static electricity. Disposal When disposing of the product, follow the disposal procedures stipulated under the relevant laws and municipal ordinances. PIO-16/16RL(PCI)H...
  • Page 15 1. Before Using the Product PIO-16/16RL(PCI)H...

  • Page 16: Setup

    For setting up software other than API-PAC(W32), refer to the manual for that software. See also the following parts of this manual as required. This chapter Step 2 Setting the Hardware This chapter Step 3 Installing the Hardware Chapter 3 External Connection Chapter 6 About Hardware PIO-16/16RL(PCI)H...

  • Page 17: Using The Board Under An Os Other Than Windows

    Chapter 6 About Hardware For using the board under an OS such as MS-DOS other than Windows, see the following parts of this manual. This chapter Step 2 Setting the Hardware Chapter 3 External Connection Chapter 6 About Hardware PIO-16/16RL(PCI)H...

  • Page 18: Step 1 Installing The Software

    OS and devices in the future but will not support Windows NT 4.0, Windows 95, ISA bus. Use API-DIO(98/PC) if your operating environment contains such an unsupported piece of software or hardware. Check the following selection guide to easily select the driver to be used. PIO-16/16RL(PCI)H...

  • Page 19: Starting The Install Program

    (3) Click on the [Install Development or Execution Environment] button. * When using the Windows 7, Vista, driver is automatically installed. CAUTION Before installing the software in Windows 7, Vista, XP, Server 2003 and 2000, log in as a user with administrator privileges. PIO-16/16RL(PCI)H...

  • Page 20: Select Api-Dio(Wdm)

    (3) Click on the [Install] button. Clicking the [API-DIO] button displays detailed information about API-DIO(WDM) and API-DIO(98/PC). Run the installation (1) Complete the installation by following the instructions on the screen. (2) The Readme file appears when the installation is complete. PIO-16/16RL(PCI)H...

  • Page 21: Select Api-Dio(98/Pc)

    (1) The following dialog box appears to select “Driver to install” and “Install option”, “Usage of driver library”. (2) Select “Classic Digital I/O driver”. (3) Click on the [Install] button. Clicking on the [API-DIO] button displays detailed information on API-DIO(WDM), API-DIO(98/PC). PIO-16/16RL(PCI)H...
  • Page 22 Go to Step 2 to set and plug the hardware. * When the hardware has already been installed: Check “Perform a hardware setup now (API-TOOL Configuration)”, then go to Step 4 “Initializing the Software”. You have now finished installing the software. PIO-16/16RL(PCI)H...

  • Page 23: Step 2 Setting The Hardware

    Parts of the Board and Factory Defaults Figure 2.1. shows the names of major parts on the board. Note that the switch setting shown below is the factory default. Board ID setting switch - Interface connector PIO-16/16RL(PCI)H BOARD ID (SW1) (CN1) BOARD ID Figure 2.1.

  • Page 24: Setting The Board Id

    Setting Procedure To set the board ID, use the rotary switch on the board. Turn the SW1 knob to set the board ID as shown below. BOARD ID Factory setting: (Board ID= 0) Figure 2.2. Board ID Settings (SW1) PIO-16/16RL(PCI)H...

  • Page 25: Plugging The Board

    Be sure that the personal computer power is turned off. Make sure that your PC or expansion unit can supply ample power to all the boards installed. Insufficiently energized boards could malfunction, overheat, or cause a failure. Power supply from the PCI bus slot at +5V is required. PIO-16/16RL(PCI)H...

  • Page 26: Step 3 Installing The Hardware

    In this case, you must check the resource settings. When Using API-DIO(WDM) (1) The “Found New Hardware Wizard” will be started. Select “No, not this time” and then click the “Next” button. PIO-16/16RL(PCI)H...
  • Page 27 [Recommended]” and then click on the “Next” button. Source folder The setup information (INF) file is contained in the following folder on the bundled CD-ROM. Windows 7 [64, 32bit], Vista [64, 32bit], XP [64, 32bit], Server 2003 [64, 32bit], 2000 \INF\Wdm\Dio \INF\Wdm\Dio PIO-16/16RL(PCI)H...
  • Page 28 2. Setup * The name of the board you have just added is displayed. - PIO-16/16RL(PCI)H You have now finished installing the hardware. PIO-16/16RL(PCI)H...

  • Page 29: When Using Api-Dio(98/Pc)

    2. Setup When Using API-DIO(98/PC) (1) The “Found New Hardware Wizard” will be started. Select “No, not this time” and then click the “Next” button. (2) Select “Install from a list or specific location[Advanced]” and then click the “Next” button. PIO-16/16RL(PCI)H...
  • Page 30 * The name of the board you have just added is displayed. - PIO-16/16RL(PCI)H Source folder The setup information (INF) file is contained in the following folder on the bundled CD-ROM. Windows 7 [32bit], Vista [32bit], XP [32bit], Server 2003 [32bit], 2000...
  • Page 31 Windows Logo testing, and it can be ignored without developing any problem with the operation of the board. In this case, click on the [Continue Anyway] button. * The name of the board you have just added is displayed. - PIO-16/16RL(PCI)H You have now finished installing the hardware. PIO-16/16RL(PCI)H...

  • Page 32: Step 4 Initializing The Software

    - PIO-16/16RL(PCI)H “DIO000” (2) The installed hardware appears under the CONTEC Devices node. Open the CONTEC Devices node and select the device you want to setup (the device name should appear highlighted). Click [Properties].
  • Page 33 - PIO-16/16RL(PCI)H The initial device name that appears is a default value. You can use this default name if you wish. Make sure that you do not use the same name for more than one device.

  • Page 34: When Using Api-Dio(98/Pc)

    2. Setup When Using API-DIO(98/PC) (1) Open the Start Menu, then select “Programs” – “CONTEC API-PAC(W32)” – “API-TOOL Configuration”. (2) API-TOOL Configuration detects hardware automatically. The detected boards are listed. Updating the Settings (1) Select “Save settings to registry…” from the “File” menu.

  • Page 35: Step 5 Checking Operations With The Diagnosis Program

    Connect the board to a remote device to text the input/output and check the execution environment. For this board, prepare an external power supply (12 - 24VDC). Set the board in the default factory. To connect the external device, see Chapter 3 “External Connection”. PIO-16/16RL(PCI)H...

  • Page 36: Using The Diagnosis Program

    2. Setup Using the Diagnosis Program Starting the Diagnosis Program for Use of API-DIO(WDM) Click the [Diagnosis] button on the device property page to start the diagnosis program. PIO-16/16RL(PCI)H...
  • Page 37 Select the board in the API-TOOL Configuration windows, then run the Diagnosis Program. Follow the instructions on screen. * The name of the board you have just added is displayed. * The name of the board you have just added is displayed. - PIO-16/16RL(PCI)H PIO-16/16RL(PCI)H...
  • Page 38 * The name of the board you have just added is displayed. - PIO-16/16RL(PCI)H To use the wait time control feature, click on the [Wait Configuration] button. Use the feature when the wait time based on the DioWait or DioWaitEx function is not normal.
  • Page 39 Before executing diagnosis report output, unplug the cable from the board. * The name of the board you have just added is displayed. - PIO-16/16RL(PCI)H Click on [Show Diagnosis Report]. (2) A diagnosis report is displayed as shown below. * The name of the board you have just added is displayed.

  • Page 40: Setup Troubleshooting

    Turn off the power to your PC, then unplug the board. Restart the OS and delete the board settings of API-TOOL Configuration. Turn off the PC again, plug the board, and restart the OS. Let the OS detect the board and use API-TOOL Configuration to register board settings. If your problem cannot be resolved Contact your retailer. PIO-16/16RL(PCI)H...
  • Page 41 2. Setup PIO-16/16RL(PCI)H...

  • Page 42: External Connection

    - Applicable connectors 17JE-23370-02(D8C) (mfd. by DDK, Male) FDCD-37P (mfd. by HIROSE, Male) DC-37P-N (mfd. by JAE, Male) * Please refer to chapter 1 for more information on the supported cable and accessories. Figure 3.1. Interface Connector and Applicable Cable Connector PIO-16/16RL(PCI)H...

  • Page 43: Connector Pin Assignment

    Connect the negative side of the external power supply. These pins are common to 16 input signal pins. OP 2/3 Connect the positive side of the external power supply. These pins are common to 16 output signal pins. N.C. This pin is left unconnected. Figure 3.2. Pin Assignments of Interface Connector PIO-16/16RL(PCI)H...

  • Page 44: Relationships Between Api-Pac(W32) Logical Ports/Bits And Connector Signal Pins

    [xx] represents a logical bits. CAUTION The logical port and logical bit numbers are virtual port and bit numbers that enable programming independent of board I/O addresses or board types. For details, refer to API-DIO HELP available after installing API-PAC(W32). PIO-16/16RL(PCI)H...

  • Page 45: Connecting Input Signals

    Input Circuit Figure 3.3. Input Circuit The input circuits of interface blocks of the PIO-16/16RL(PCI)H are illustrated in Figure 3.3. The signal inputs are isolated by opto-couplers (corresponding to the current source output). The board therefore requires an external power supply to drive the inputs. The power requirement for each input pin is about 5.1mA at 24VDC (about 2.6mA at 12VDC).

  • Page 46: Connecting Output Signals

    Output Circuit Figure 3.5. Output Circuit The output circuits of interface blocks of the PIO-16/16RL(PCI)H are illustrated in Figure 3.5. The signal output section is an opto-coupler isolated open-collector output (current source type). Driving the output section requires an external power supply.

  • Page 47: Connection To The Led

    5.1kΩ LED 12 - 24VDC O-20 (CN1 : 21pin) When outputting 1 to the corresponding bit, LED is ON. When outputting 0 to the corresponding bit, by contrast, LED is off. Figure 3.6. An Example to use Output O-20 PIO-16/16RL(PCI)H...

  • Page 48: Function

    When “0” is output to the relevant bit, in contrast, the corresponding transistor is set to “OFF”. CAUTION When the PC is turned on, all output are reset to 0 (OFF). Monitoring Output Data The PIO-16/16RL(PCI)H can read the state of the data currently being output without affecting the output data. PIO-16/16RL(PCI)H...

  • Page 49: Digital Filter Function

    4. Function Digital Filter Function Using this feature, the PIO-16/16RL(PCI)H can apply a digital filter to every input pin, thereby preventing wrong recognition of input signals from being affected by noise or chattering. Digital Filter Function Principle The digital filter checks the input signal level during the sampling time of the clock signal. When the signal level remains the same for the digital filter set time, the digital filter recognizes that signal as the input signal and changes the signal level of the PC.

  • Page 50: Interrupt Control Function

    4. Function Interrupt Control Function The PIO-16/16RL(PCI)H can use all of the input signals as interrupt request signals. The board can generate an interrupt request signal to the PC when the input signal change from High to Low or from Low to High.
  • Page 51 4. Function PIO-16/16RL(PCI)H...

  • Page 52: About Software

    |––WDM |––Win2000 |––Win95 |––linux Linux driver file |––cnt |––dio |––…… | ––Readme Readme file for each driver | ––Release Driver file on each API-TOOL |––API_NT (For creation of a user-specific install program) |––API_W95 | ––UsersGuide Hardware User's Guide(PDF files) PIO-16/16RL(PCI)H...

  • Page 53: About Software For Windows

    Running a Sample Program (1) Click on the [Start] button on the Windows taskbar. (2) For the API-DIO(WDM), from the Start Menu, select “Programs” – “CONTEC API-PAC(W32)” – “DIOWDM” – “SAMPLE…”. (3) For the API-DIO(98/PC), from the Start Menu, select “Programs” – “CONTEC API-PAC(W32)” –...
  • Page 54 -Sample program 10 Executes digital inputs/outputs (simple functions) at specified bits through a specified port. -Sample program 11 Services interrupts of a specified board (using an extended function). -Sample program (Console) : Inputs/outputs digital data through a specified port. PIO-16/16RL(PCI)H...

  • Page 55: Uninstalling The Driver Libraries

    [Device Manager] tab. (You can also open Device Manager by right clicking on My Computer and selecting Properties.) 2. All of the hardware that uses the API-TOOL(WDM) driver is registered under the CONTEC Devices tree. Open the device tree, select the hardware to uninstall, and then right-click the hardware.
  • Page 56 < Uninstall the device driver > Use [My Computer] - [Control Panel] - [Add and Remove Applications] to uninstall the device driver. Select [Windows driver package - CONTEC (****)] and then click [Change/Remove]. * "***" contains the driver category name (caio, ccnt, cdio, csmc, etc.).
  • Page 57 < Uninstall the device driver > Use [My Computer] - [Control Panel] - [Add and Remove Applications] to uninstall the device driver. Select [CONTEC API-***(WDM) driver] and then click [Add and Remove Applications]. * "***" contains the driver category name (AIO, CNT, DIO, SMC, etc.).

  • Page 58: About Software For Linux

    # mount /dev/cdrom /mnt/cdrom Mount the CD-ROM. # cp /mnt/cdrom/linux/dio/cdioXXX.tgz ./ Copy the compressed file. # tar xvfz cdioXXX.tgz Decompress the compressed file....# cd contec/cdio # make Compile the file....# make install Install....# cd config # ./config...

  • Page 59: Accessing The Help File

    Sample programs for each language are contained in the contec/cdio/samples directory. For compiling them, refer to the manual for the desired language. Uninstalling the driver To uninstall the driver, use the uninstall shell script contained in the contec/cdio directory. For details, check the contents of the script. PIO-16/16RL(PCI)H...

  • Page 60: About Hardware

    This chapter provides hardware specifications and hardware-related supplementary information. For detailed technical information For further detailed technical information (“Technical Reference” including the information such as an I/O map, configuration register, etc.), visit the Contec's web site (http://www.contec.com/support/) to call for it. Hardware specification Table 6.1.
  • Page 61 *2 This board requires power supply at +5 V from an expansion slot (it does not work on a machine with a +3.3 V power supply alone). Board Dimensions 121.69(L) [mm] The standard outside dimension (L) is the distance from the end of the board to the outer surface of the slot cover. PIO-16/16RL(PCI)H...

  • Page 62: Block Diagram

    Input Port1 coupler (8 channels, Group 1) Control Circuits Opto- External Digital coupler Output Port0 & (8 channels, Group 2) Transistors Opto- External Digital coupler Output Port1 & (8 channels, Group 3) Transistors Interrupt Control PIO-16/16RL(PCI)H Figure 6.1. Block Diagram PIO-16/16RL(PCI)H...
