Step 3 Installing the Hardware

For using an expansion board under Windows, you have to let the OS detect the I/O addresses and IRQ to
be used by the board. The process is referred to as installing the hardware.
In the case of using two or more boards, make sure you install one by one with the Add New Hardware
Wizard.

Turning on the PC

Turn on the power to your PC.
CAUTION
- The board cannot be properly installed unless the resources (I/O addresses and interrupt level) for
the board can be allocated. Before attempting to install the board, first determine what PC resources
are free to use.
- The resources used by each board do not depend on the location of the slot or the board itself. If you
remove two or more boards that have already been installed and then remount one of them on the
computer, it is unknown that which one of the sets of resources previously assigned to the two boards is
assigned to the remounted board. In this case, you must check the resource settings.

When Using API-SMC(WDM)

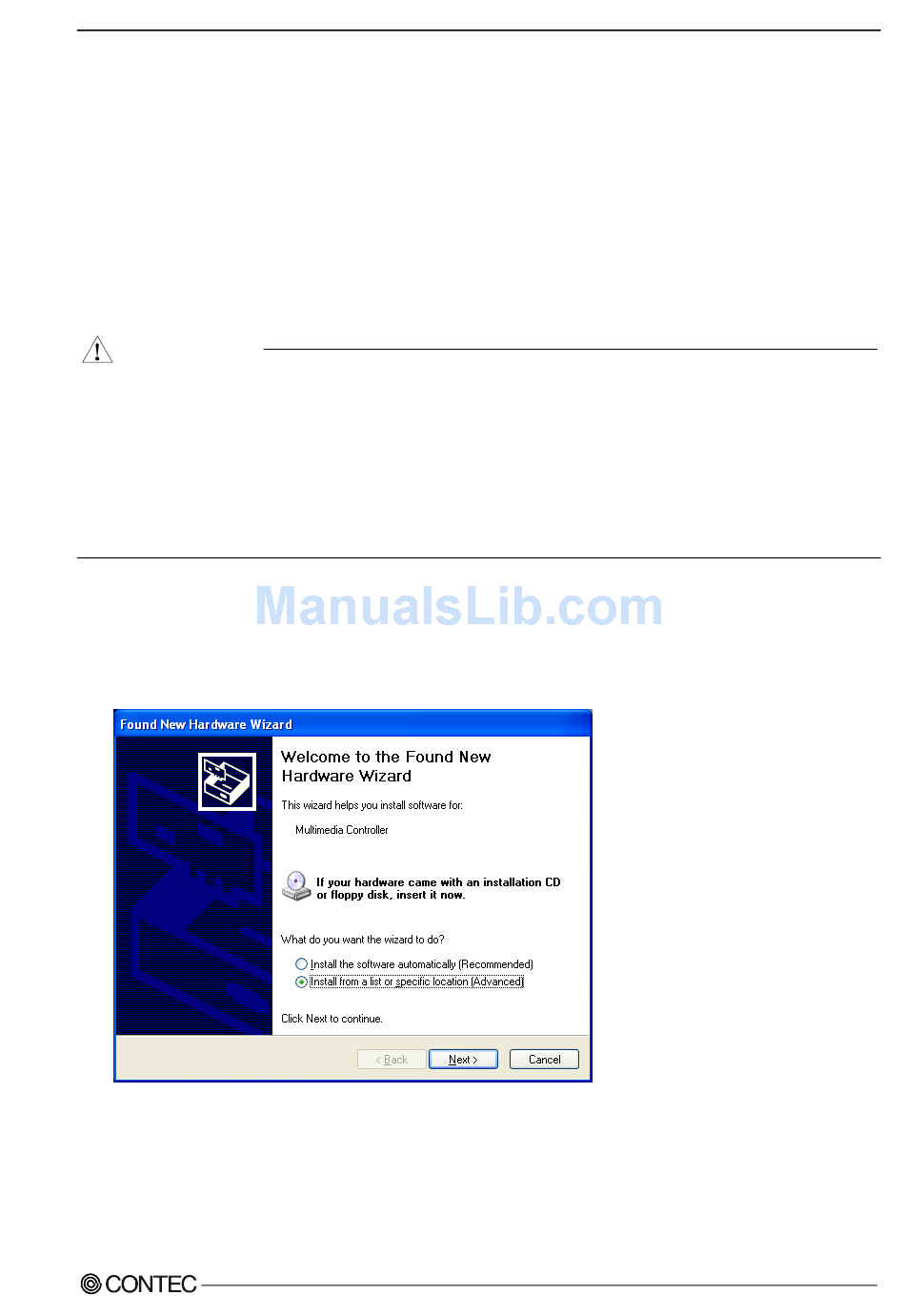

(1) The "Found New Hardware Wizard" will be started.
Select "Install from a list or specific location[Advanced]", then click on the [Next] button.
