ATmega4809 Xplained Pro
Hardware Revision History
6.4
Revision 3
Revision 3 is the initially released revision.
Engineering samples with part number ATMEGA4809-MFRES is mounted on revision 3 of ATmega4809
Xplained Pro.
Pin 10 of the AVR UPDI debug connector (J202) is not connected to GND on revision 3 of ATmega4809
Xplained Pro.

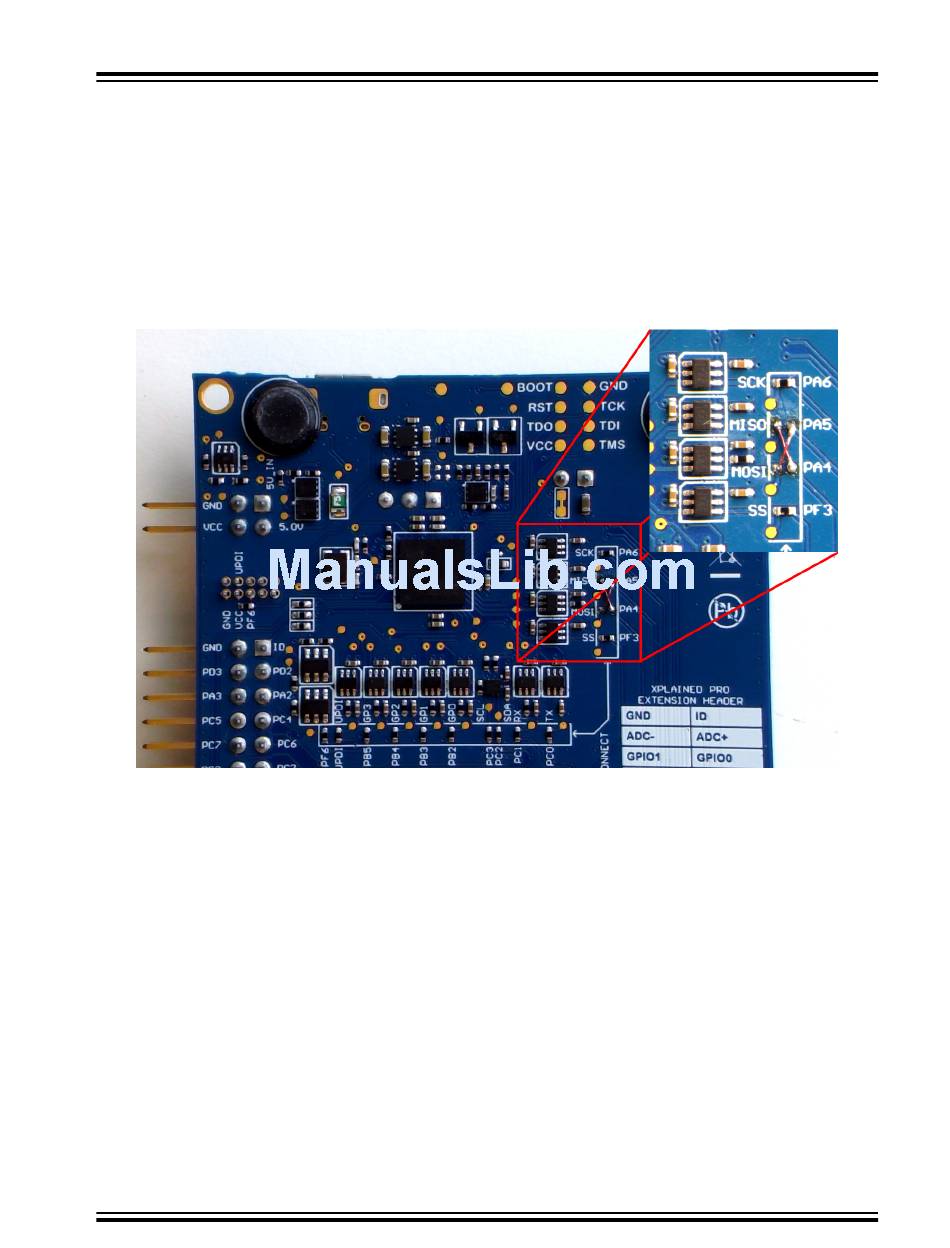

The SPI MISO and SPI MOSI signals between the EDBG and the ATmega4809 are crossed in this
version of the kit. The image shows the implemented fly-wire fix.
Related Links
AVR Debugger Connector
Table 4-12
User Guide
DS50002716A-page 27
©
2018 Microchip Technology Inc.
