- Page 1 Video Scaler Operation Manual...
- Page 2 Congratulations on your purchase of the Cypress Video Scaler CSC-1600HD.Our professional video Scaler products have been serving the industry for many years. In addition to VideoScalers, Cypress offers a full line of high quality PC multimedia , Standards Converters, DV-to-Analog Converters,Vieo Mixer, Time Base Correctors, and video processors, Please visit www.cypress.com.tw to learn more details about...

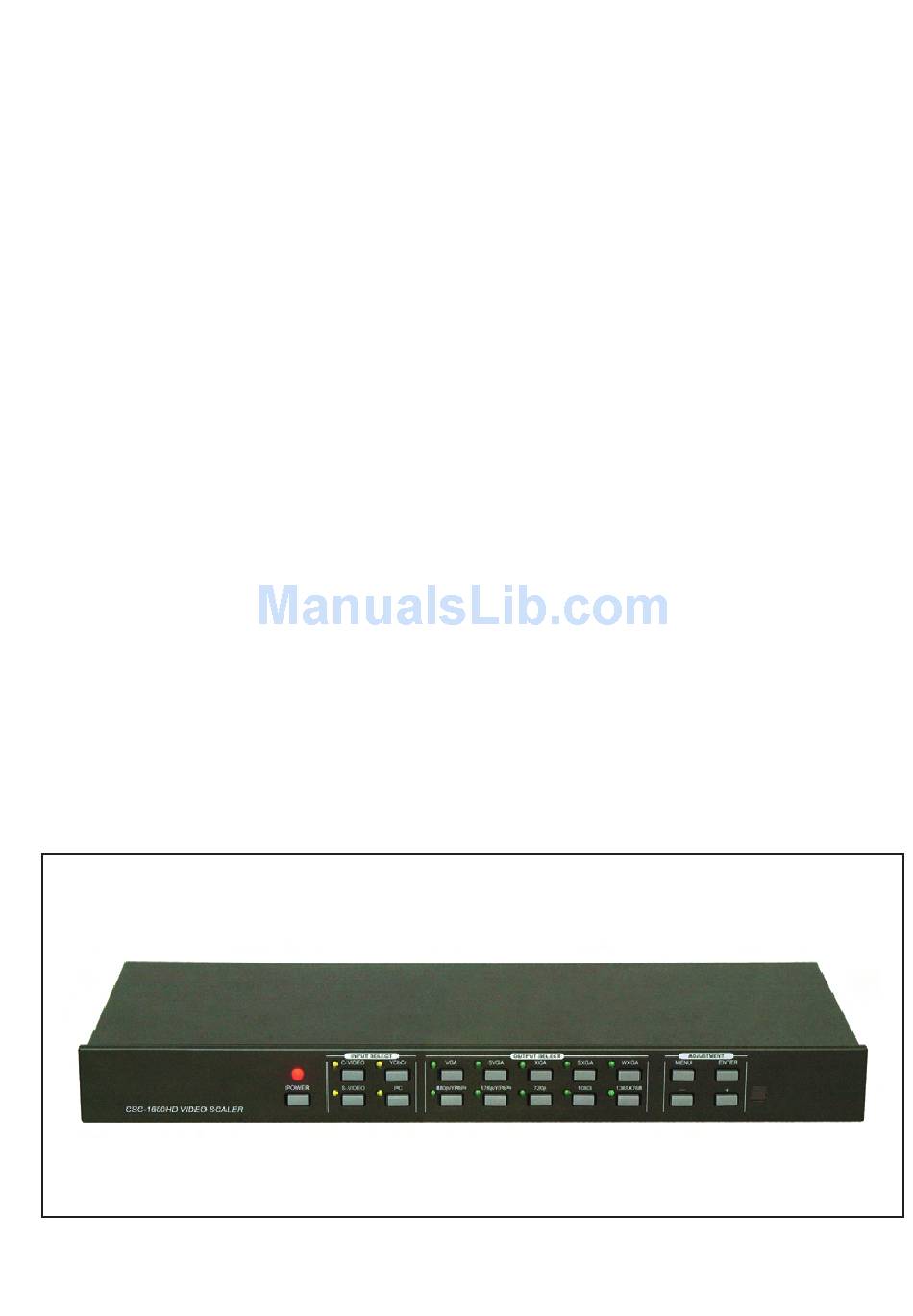

- Page 3 4. Connecting the hardware The first step is to connect a video source to the input of the Video Scaler and to connect its output to a display device. Below is a photo of the CSC-1600HD rear panel. INPUT SELECT...
- Page 4 4.4 Connecting the AC power CSC-1600HD accepts AC input voltage range from 100~240V (50~60HZ). The unit has a switching power supply installed inside that will convert the AC input to 12V DC 1A. * Power ON/OFF switch-Once the AC power is feed into the unit, the unit enter into standby mode, where a limited current is provided to the micro processor to allow the remote control to work.
- Page 5 7. Output Selection CSC-1600HD has ten output selection buttons allow you to directly select the desired output resolution. Some output resolution mode may cover more than one horizontal /vertical scanning frequency. This scan rate information will be displayed on the screen when an output selection button is pressed.
- Page 6 8. Picture Adjustment The picture adjustments along with other controls of the scaler can be achieved by using OSD menu control. 9. OSD Menu Operation The MENU, + , - and enter buttons are used in the on screen menu control operation. MENU - This button serves two purposes- ...
- Page 7 9. OSD Menu Operation Vertical frequency rate adjust- When it is selected it allows you to choose different vertical frequency while under VGA, SVGA or XGA modes. The higher the vertical refresh rate the less flicker the picture will be. When the vertical refresh rate of an output mode is changed, so will its horizontal scanning rate.
- Page 8 If information for this control method is required,beyond the scope of the instructions provided in this section, please contact Cypress Technology Support, A disk is provided with the CSC-1600HD containing a sample Windows Control Panel that permits remote control of the unit from a PC via RS-232.
- Page 9 11. RS-232 Control of the CSC-1600HD Video Scaler * Command / Response codes of RS-232 transmission: the Command/ response codes are the combination of 3 bytes. the 1st, 2nd byte are text and the 3rd byte is value. Remote Controller Command Codes:...
- Page 10 11. RS-232 Control of the CSC-1600HD Video Scaler * Command / Response codes of RS-232 transmission: the Command/ response codes are the combination of 3 bytes. the 1st, 2nd byte are text and the 3rd byte is value. Video Scaler transimits codes to Remote Controller when scaler operating.
-
Page 11: Specifications
12. Specifications Computer input (Loop thru) RGB with HV Sync Max Computer Input Resolution 1600 x 1200 Computer Input Connector Type HD 15 Female Computer Input signal Level RGB @ 0.7V, H&V Sync @ TTL Composite Video @ 1 Vp-p 75 ohm S-Video @ 1 Vp-p 75 ohm Video Inputs YCbCr Y : 1 Vpp 75 ohm...
