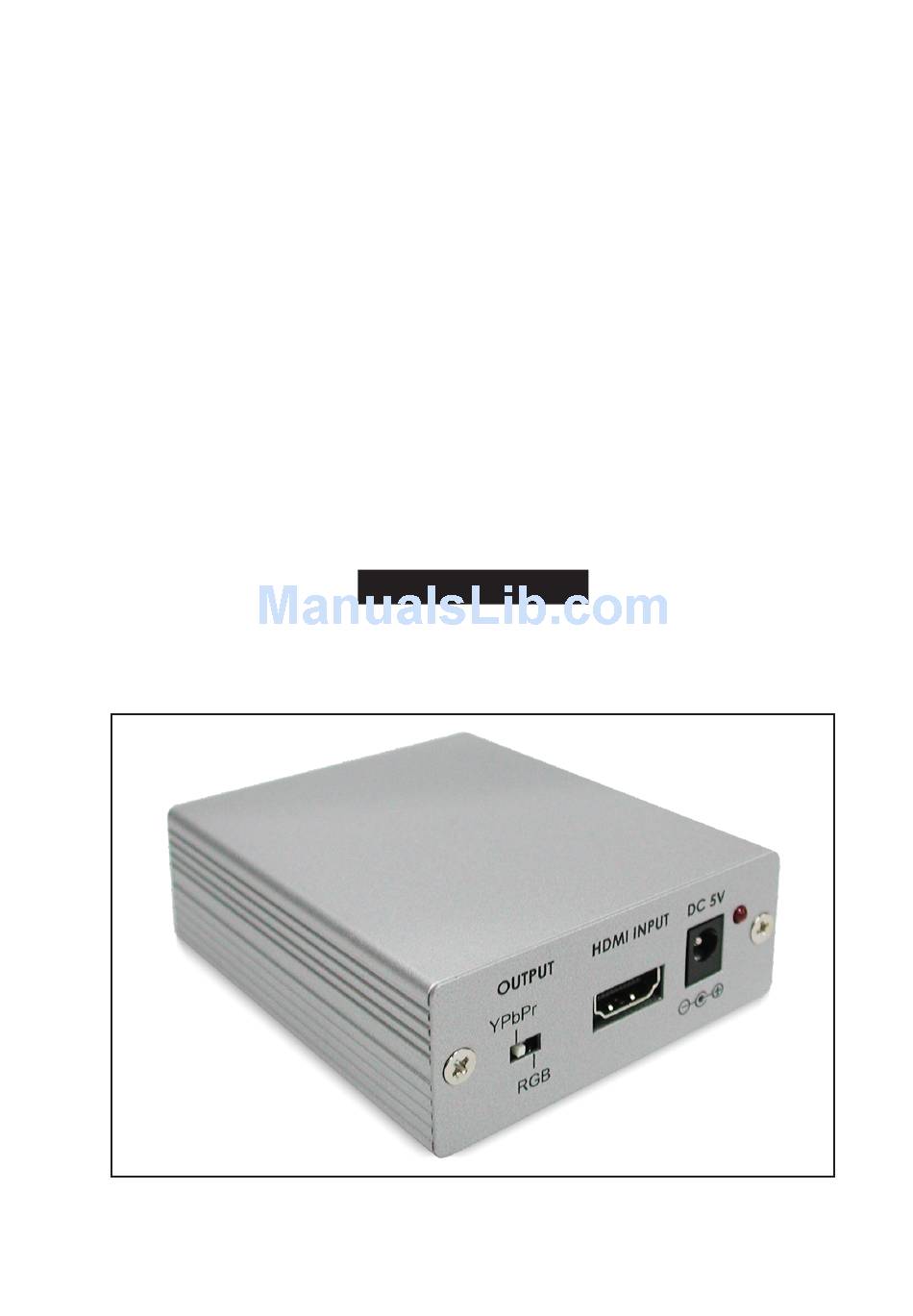

  • Page 1 CP-1262HE HDMI to PC/Component Converter with Audio Box Operation Manual CP-1262HE...

  • Page 2: Table Of Contents

    Table Of Contents 1. Introduction................2. Features..................3. Operation Controls and Functions.......... 3.1 Front Panel................3.2 Rear Panel................4. Connection and Installation............. 5. HDMI Connector Pin Assignment..........6. Specifications................

  • Page 3: Introduction

    1. Introduction This converter box converts digital HDMI to Analog PC or SD/HD output. It enables to connect the HDMI sources to the analog PC monitor, Projector or TV. Its high bandwidth capability supports a wide range of PC and HDTV resolutions.

  • Page 4: Operation Controls And Functions

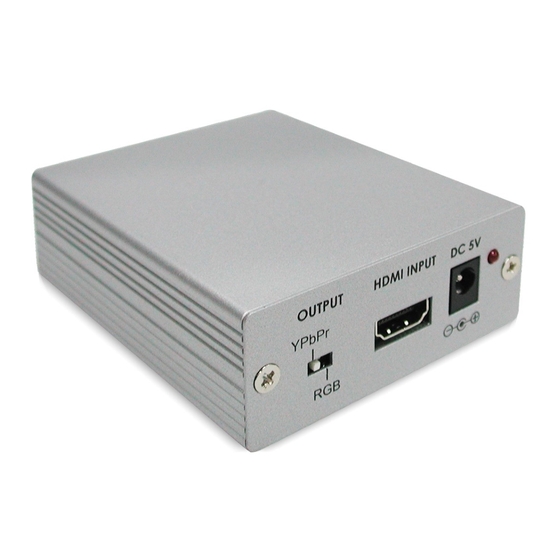

    3. Operation Controls and Functions 3.1 Front Panel OUTPUT HDMI INPUT DC 5V YPbPr YPbPr/RGB switch: Set the switch to RGB when your HDMI source equipment is PC graphic card or other digital RGB source signal. Use HD-15 to HD-15 VGA cable to connect between the unit's RGB out and the RGB input of your PC monitor, or projector.

  • Page 5: Connection And Installation

    4. Connection and Installation Connection 1(RGB out) VGA cable HDMI out 3.5mm to 2 RCA DVD or, Set-Top-Box audio cable LCD Monitor/TV Projector HDMI cable DVI out DVI to HDMI adaptor Connection 2 (YPbPr out) YPbPr cable D-Sub to 3 RCA cable HDMI cable DVD or, Set-Top-Box Audio...

  • Page 6: Specifications

    B. Analog VGA output pin C. Analog VGA output pin assignment assignment when output switch when output switch set to YPbPr. set to RGB. Part No. Pin No. Description (PC out) Part No. Pin No. Description (HD out) GREN BLUE GND (DDC-RETURN) GND (DDC-RETURN) GND-RED...
  • Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20080818 MPM-CP1262HE...
