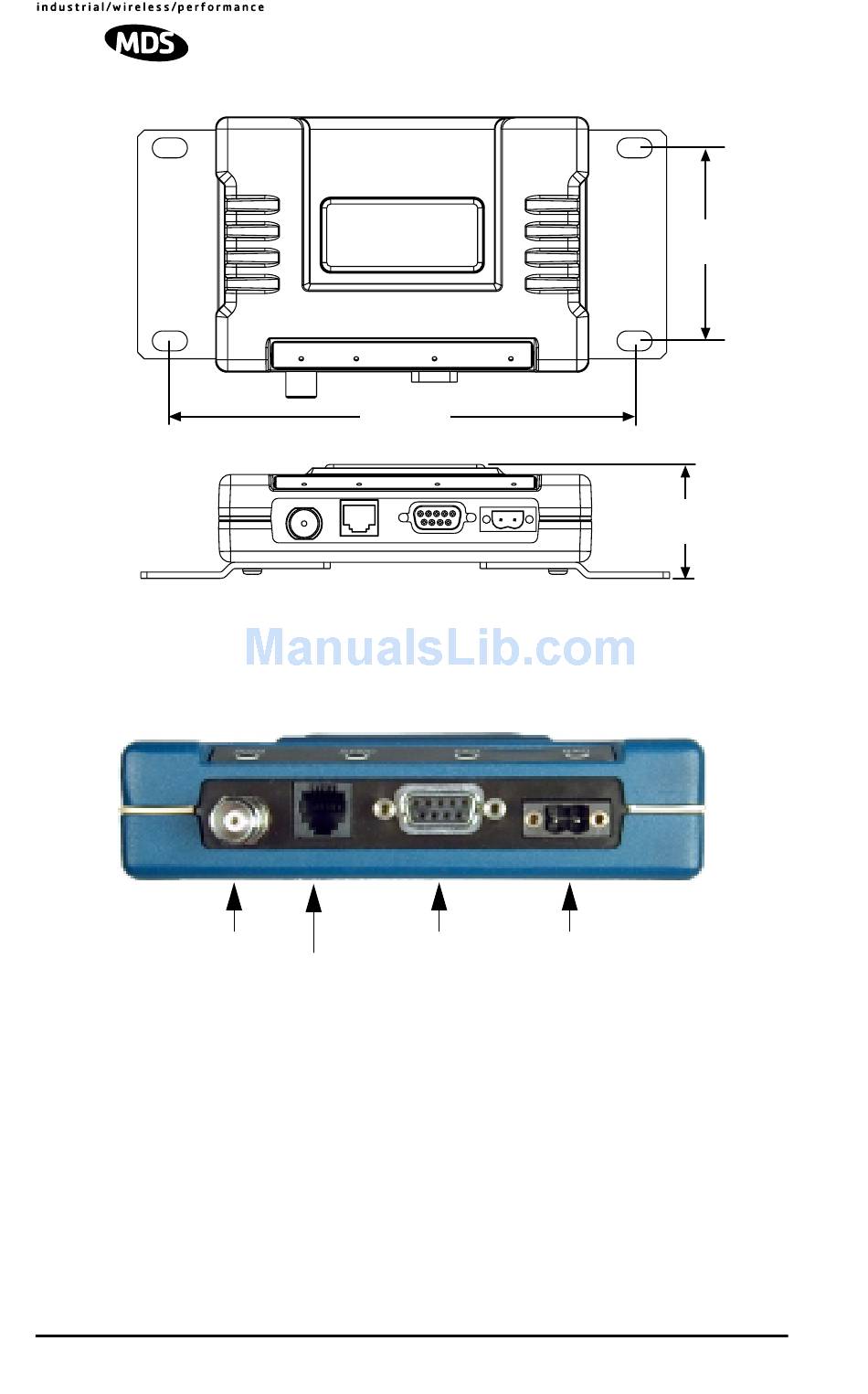

Figure 11. Transceiver mounting dimensions
Figure 12 shows the four connectors on the MDS TransNET 900 and their
functions.
Antenna
Figure 12. Interface Connector Functions
2. Install the antenna and antenna feedline for the station. Antennas should
be mounted in the clear and in accordance with the manufacturer's
instructions. Additional information on antennas and feedlines is
contained in Section
NOTE:
Strong fields near the antenna can interfere with the operation of the low level
RTU circuits and change the reported values of the data being monitored. For
this reason, the antenna should be mounted at least 10 feet (>3 meters) from
the radio, RTU, sensors and other components of the system.
3. Connect the data equipment to the transceiver's
only the required pins for the application.
14 MDS TransNET 900 I&O Guide
6.63
(16.64 cm)
(Payload)
Diagnostic
(Communications)
3.4 on Page 10.
Invisible place holder
Invisible place holder
Data Primary Power
(6–30 Vdc)
DATA
MDS 05-2708A01, Rev. B
2.75
(7.0 cm)
1.62
(4.15 cm)
connector. Use
