Point-to-Point System

A point-to-point configuration
of just two radios—a master and a remote. This provides a half-duplex
communications link for the transfer of data between two locations.
MDS TransNET
Master

Adding a Tail-End Link to an Existing Network

A tail-end link can be used to extend the range of a traditional (licensed) MAS
system. This might be required if an outlying site is blocked from the MAS
master station by a natural or man-made obstruction. In this arrangement, an
MDS TransNET 900 radio links the outlying remote site into the rest of a
licensed MAS system by sending data from that site to an associated
MDS TransNET 900 installed at one of the licensed remote sites. (See
Figure 5).
As the data from the outlying site is received at the licensed remote site, it is
transferred to the licensed radio (via a local cable connection) and is then
transmitted to the MAS master station in the usual manner. Additional details
for tail-end links are given in Section

Master Station

ACTIV E
STBY
ALAR M
RX ALR
TX ALR
ACTIV E LINE
STBY
ALAR M
RX ALR
TX ALR
LINE
ENT ER
ESC APE
Remote
Radio
RTU
MAS SYSTEM (LICENSED OR UNLICENSED)

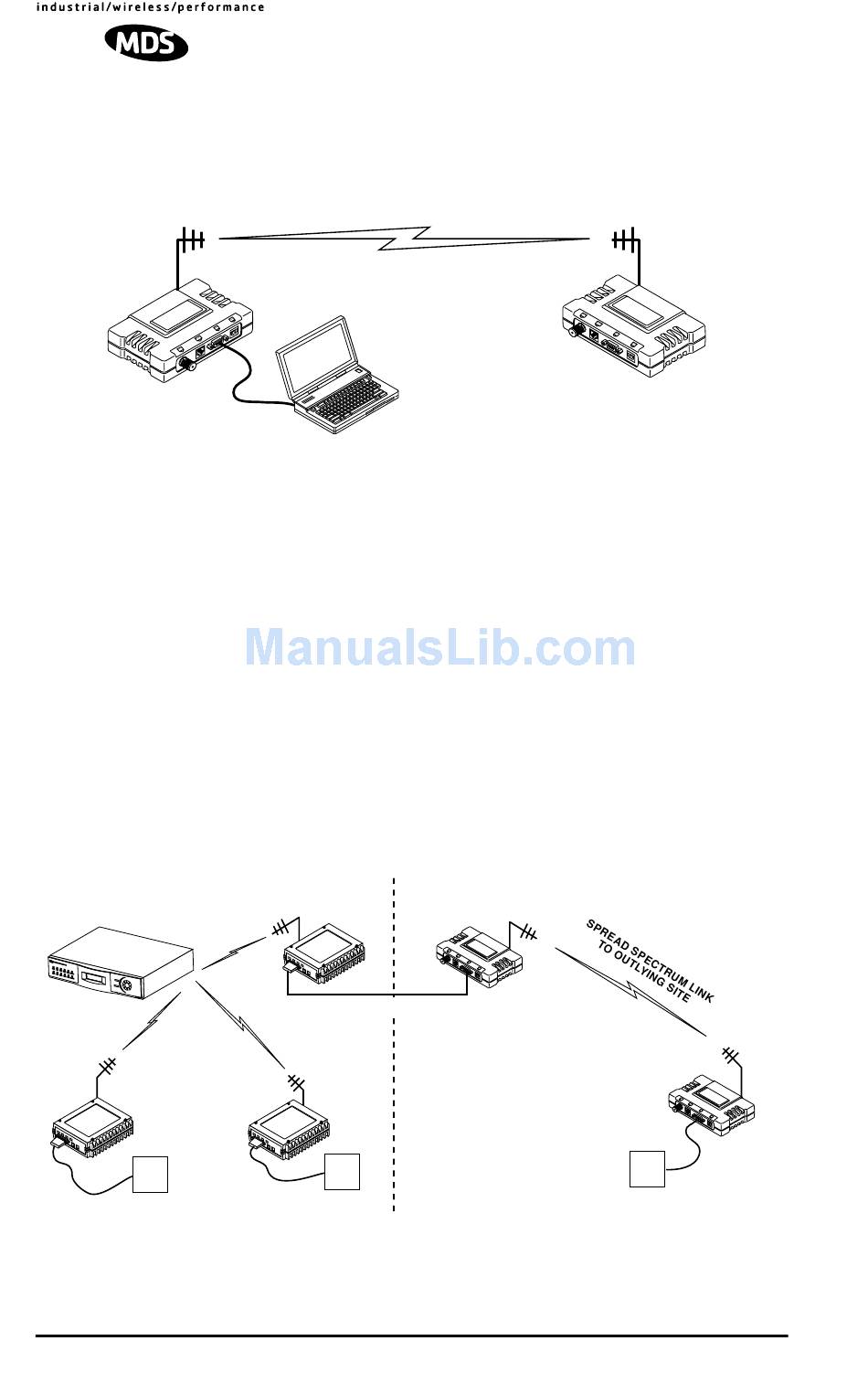

Figure 5. Typical tail-end link arrangement
