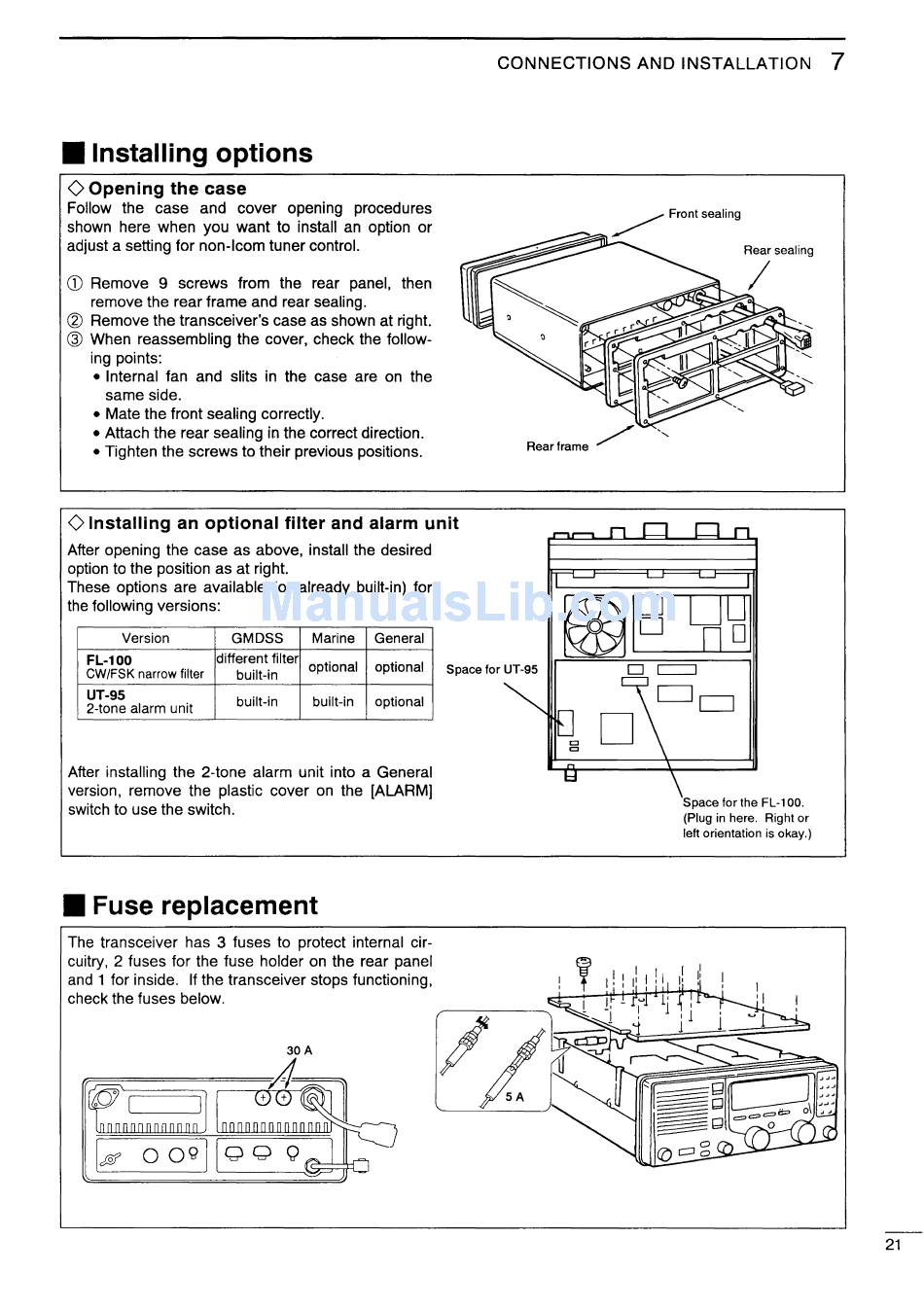

• Installing options
<>Opening the case
Follow the case and cover opening procedures
shown here when you want to install an option or
adjust a setting for non-lcom tuner control.
CD
Remove 9 screws from the rear panel, then
remove the rear frame and rear sealing.
@ Remove the transceiver's case as shown at right.
@ When reassembling the cover, check the follow-
ing points:
• Internal fan and slits in the case are on the
same side.
• Mate the front sealing correctly.
• Attach the rear sealing in the correct direction.
• Tighten the screws to their previous positions.
<>Installing an optional filter and alarm unit
After opening the case as above, install the desired
option to the position as at right.
These options are available (or already built-in) for
the following versions:
Version
GMDSS Marine General
different filter
CONNECTIONS AND INSTALLATION
7
FL-100
optional optional
CW/FSK narrow filter built-in
Space for UT-95
UT-95
built-in built-in optional
2-tone alarm unit
After installing the 2-tone alarm unit into a General
version, remove the plastic cover on the [ALARM]
switch to use the switch.
• Fuse replacement
The transceiver has 3 fuses to protect internal cir-
cuitry, 2 fuses for the fuse holder on the rear panel
and 1 for inside. If the transceiver stops functioning,
check the fuses below.
[s
CJ
CJ
Space for the FL-1 00.
(Plug in here. Right or
left orientation is okay.)
21
