Icom IC-M710 Instruction Manual page 8

4
2

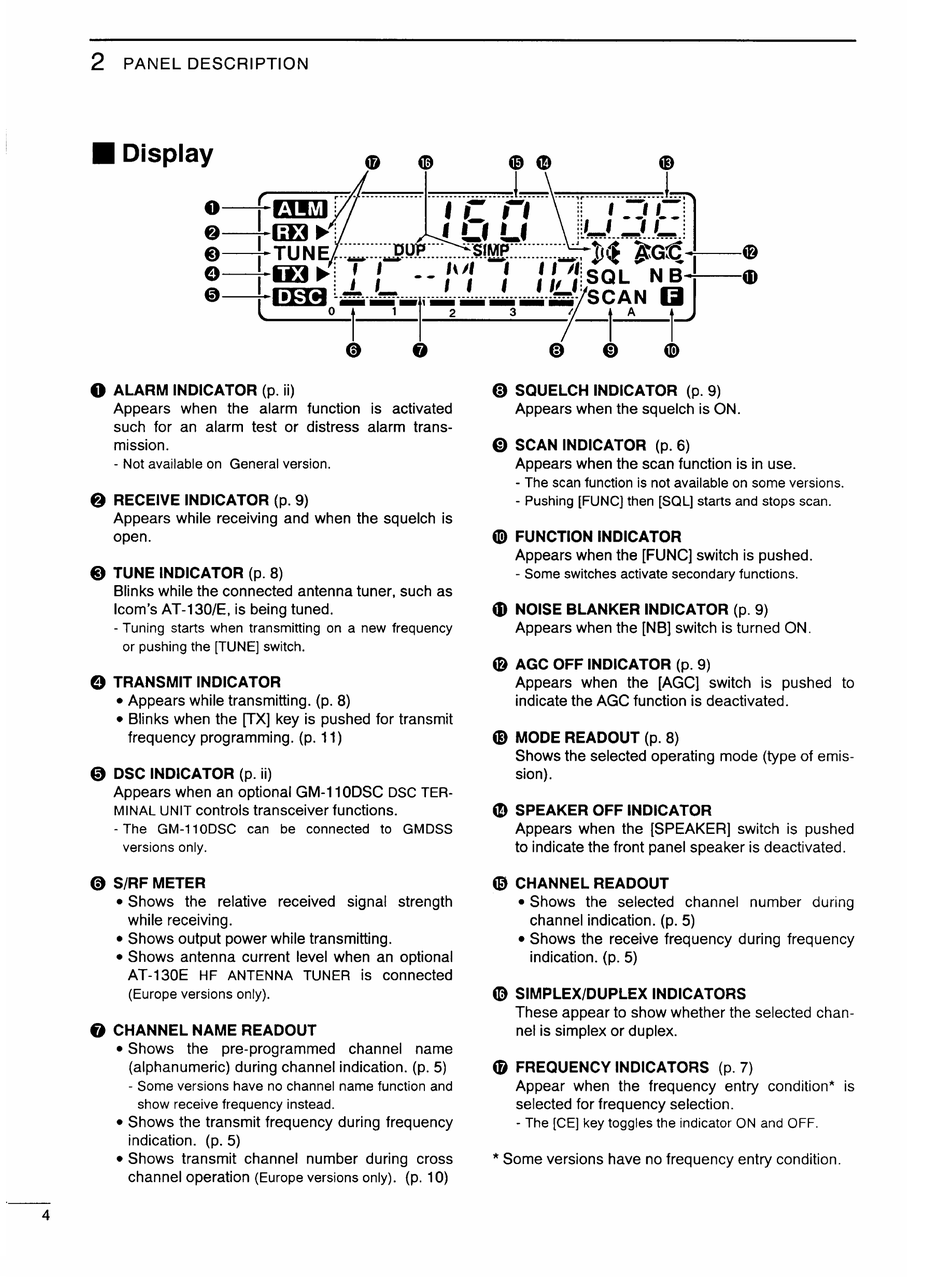

PANEL DESCRIPTION
0
ALARM INDICATOR
(p. ii)
Appears when the alarm function is activated
such for an alarm test or distress alarm trans-
mission.
- Not available on General version.
8
RECEIVE INDICATOR (p. 9)
Appears while receiving and when the squelch is
open.
@) TUNE INDICATOR
(p. 8)
Blinks while the connected antenna tuner, such as
learn's AT-130/E, is being tuned.
- Tuning starts when transmitting on a new frequency
or pushing the [TUNE] switch.
0
TRANSMIT INDICATOR
• Appears while transmitting. (p. 8)
• Blinks when the [TX] key is pushed for transmit
frequency programming. (p. 11)
0
DSC INDICATOR (p. ii)
Appears when an optional GM-11 ODSC DSC TER-
MINAL UNIT controls transceiver functions.
-The GM-110DSC can be connected to GMDSS
versions only.
0
S/RFMETER
• Shows the relative received signal strength
while receiving.
• Shows output power while transmitting.
• Shows antenna current level when an optional
AT-130E HF ANTENNA TUNER is connected
(Europe versions only).
0
CHANNELNAMEREADOUT
• Shows the pre-programmed channel name
(alphanumeric) during channel indication. (p. 5)
- Some versions have no channel name function and
show receive frequency instead.
• Shows the transmit frequency during frequency
indication. (p. 5)
• Shows transmit channel number during cross
channel operation (Europe versions only). (p. 1 0)
«3
SQUELCH INDICATOR (p. 9)
Appears when the squelch is ON.
0
SCAN INDICATOR (p. 6)
Appears when the scan function is in use.
- The scan function is not available on some versions.
- Pushing [FUNC] then [SOL] starts and stops scan.
~
FUNCTION INDICATOR
Appears when the [FUNC] switch is pushed.
- Some switches activate secondary functions.
G) NOISE BLANKER INDICATOR
(p. 9)
Appears when the [NB] switch is turned ON.
~
AGC OFF INDICATOR (p. 9)
Appears when the [AGC] switch is pushed to
indicate the AGC function is deactivated.
Q)
MODE READOUT (p. 8)
Shows the selected operating mode (type of emis-
sion).
(D SPEAKER OFF INDICATOR
Appears when the [SPEAKER] switch is pushed
to indicate the front panel speaker is deactivated.
~
CHANNELREADOUT
• Shows the selected channel number during
channel indication. (p. 5)
• Shows the receive frequency during frequency
indication. (p. 5)
~SIMPLEX/DUPLEX
INDICATORS
These appear to show whether the selected chan-
nel is simplex or duplex.
(fj FREQUENCY INDICATORS
(p. 7)
Appear when the frequency entry condition* is
selected for frequency selection.
- The [CE] key toggles the indicator ON and OFF.
*Some versions have no frequency entry condition.
