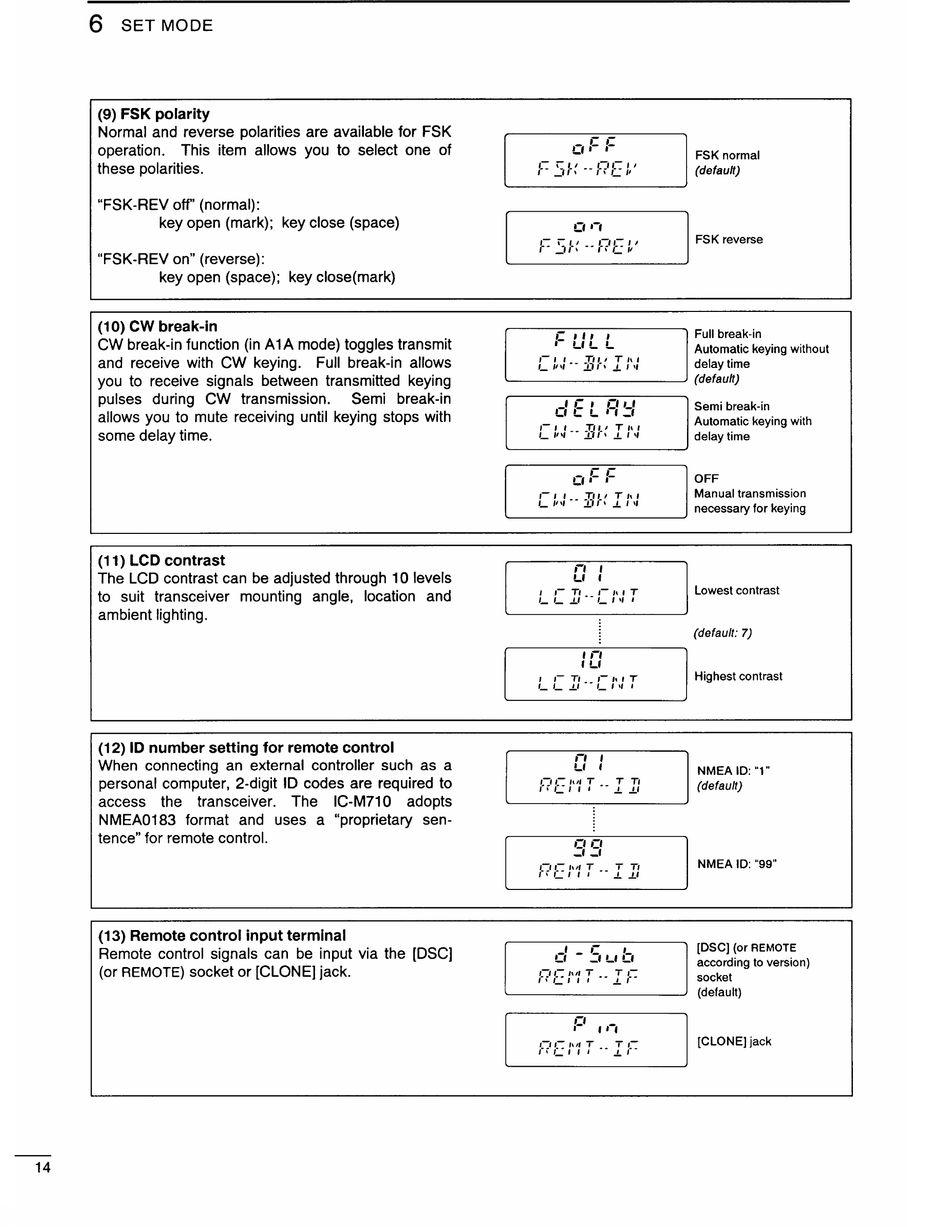

SET MODE
(9) FSK polarity
Normal and reverse polarities are available for FSK
operation. This item allows you to select one of
these polarities.
"FSK-REV off" (normal):
key open (mark); key close (space)
"FSK-REV on" (reverse):
key open (space); key close( mark)
(1 0) CW break-in
CW break-in function (in A1A mode) toggles transmit
and receive with CW keying. Full break-in allows
you to receive signals between transmitted keying
pulses during CW transmission. Semi break-in
allows you to mute receiving until keying stops with
some delay time.
(11) LCD contrast
The LCD contrast can be adjusted through 10 levels
to suit transceiver mounting angle, location and
ambient lighting.
(12) ID number setting for remote control
When connecting an external controller such as a
personal computer, 2-digit ID codes are required to
access the transceiver. The IC-M71 0 adopts
NMEA0183 format and uses a "proprietary sen-
tence" for remote control.
(13) Remote control input terminal
Remote control signals can be input via the [DSC]
(or
REMOTE)
socket or [CLONE] jack.
