CIO-DIO96 User's Guide
Unpacking the CIO-DIO96
As with any electronic device, you should take care while handling to avoid damage from static
electricity. Before removing the CIO-DIO96 from its packaging, ground yourself using a wrist strap or by
simply touching the computer chassis or other grounded object to eliminate any stored static charge.
If any components are missing or damaged, notify Measurement Computing Corporation immediately by
phone, fax, or e-mail:
Phone: 508-946-5100 and follow the instructions for reaching Tech Support.
Fax: 508-946-9500 to the attention of Tech Support
Email:
techsupport@mccdaq.com
Installing the software
Refer to the Quick Start Guide for instructions on installing the software on the Measurement Computing Data
Acquisition Software CD. This booklet is available in PDF at
Quick-Start.pdf.
Configuring the base address switch
The CIO-DIO96 employs the PC bus for power, communications and data transfer. As such, it draws power
from the PC, monitors the address lines and control signals, responds to its I/O address, and receives and places
data on the eight data lines.
The CIO-DIO96 has one bank of base address-select switches, and one wait-state jumper. Verify their settings
before installing the board in your computer.
Base address switch
The easiest way to set the base address is to let InstaCal show you the correct settings. However, if you are
already familiar with setting ISA base addresses, you may use the base address switch description below to
guide your base address selection.
The base address is the starting location that software writes to when communicating with the CIO-DIO96. A
set of DIP switches is used to set the base address. By placing the switch down, the CIO-DIO96 address decode
logic is instructed to respond to that address bit. A complete address is constructed by calculating the HEX or
decimal number which corresponds to all the address bits the board has been instructed to respond to.
The board is shipped with the base address set to 300 hex (see
system that uses address 300 hex (768 decimal), leave the switches as they were set at the factory.
In the default configuration, addresses 9 and 8 are down, and all others are up. Address 9 = 200 hex
(512 decimal), and address 8 = 100 hex (256 decimal). When added together they equal 300 hex (768 decimal).
9
8
7
6
5
ADDRESS

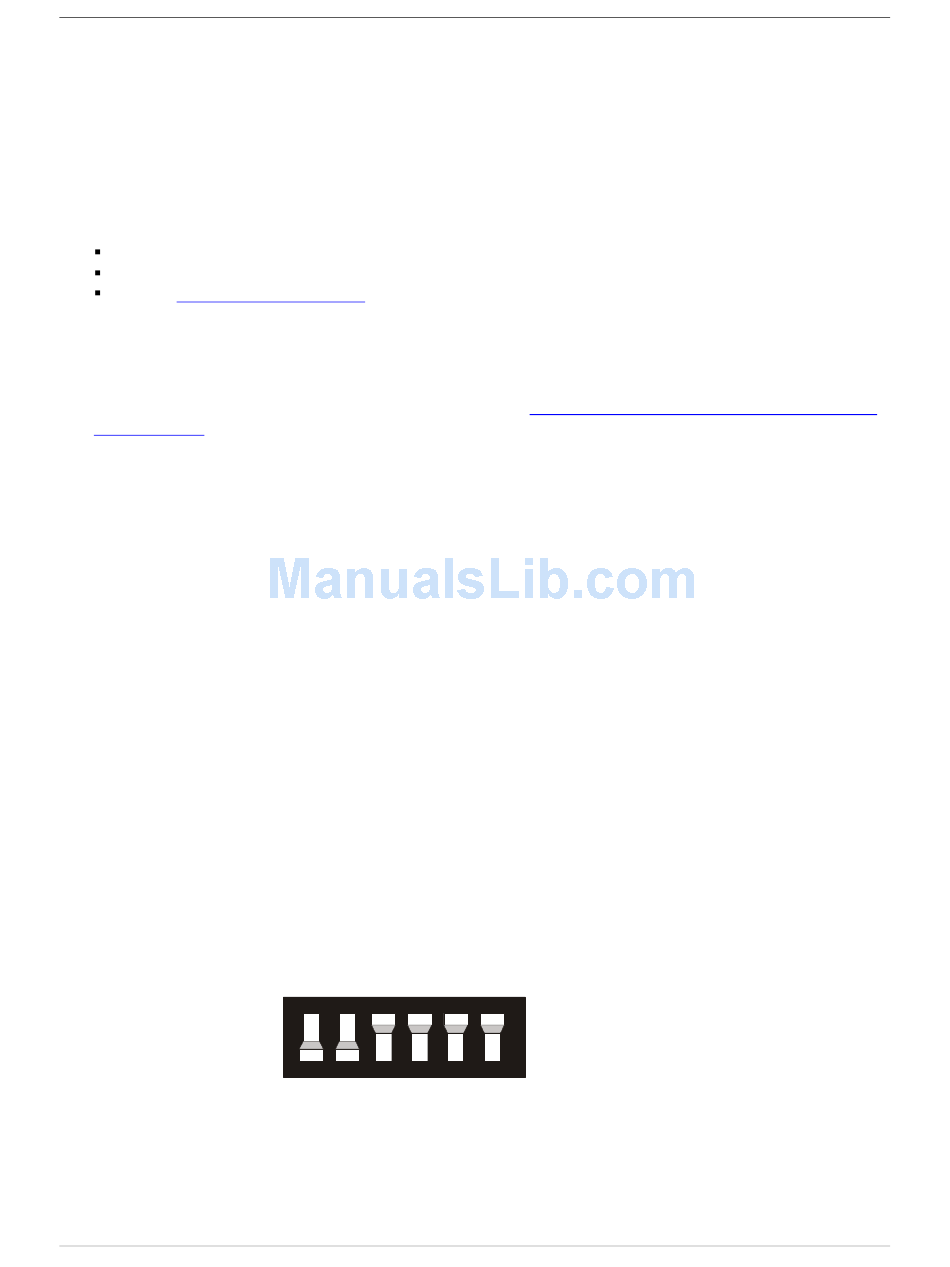

Figure 1. Base address switch
9
www.mccdaq.com/PDFmanuals/DAQ-Software-
Figure 1
. Unless there is already a board in your
)
HEX
SW
4
200
A9
A8
100
A7
80
40
A6
A5
20
A4
10
Installing the CIO-DIO96
